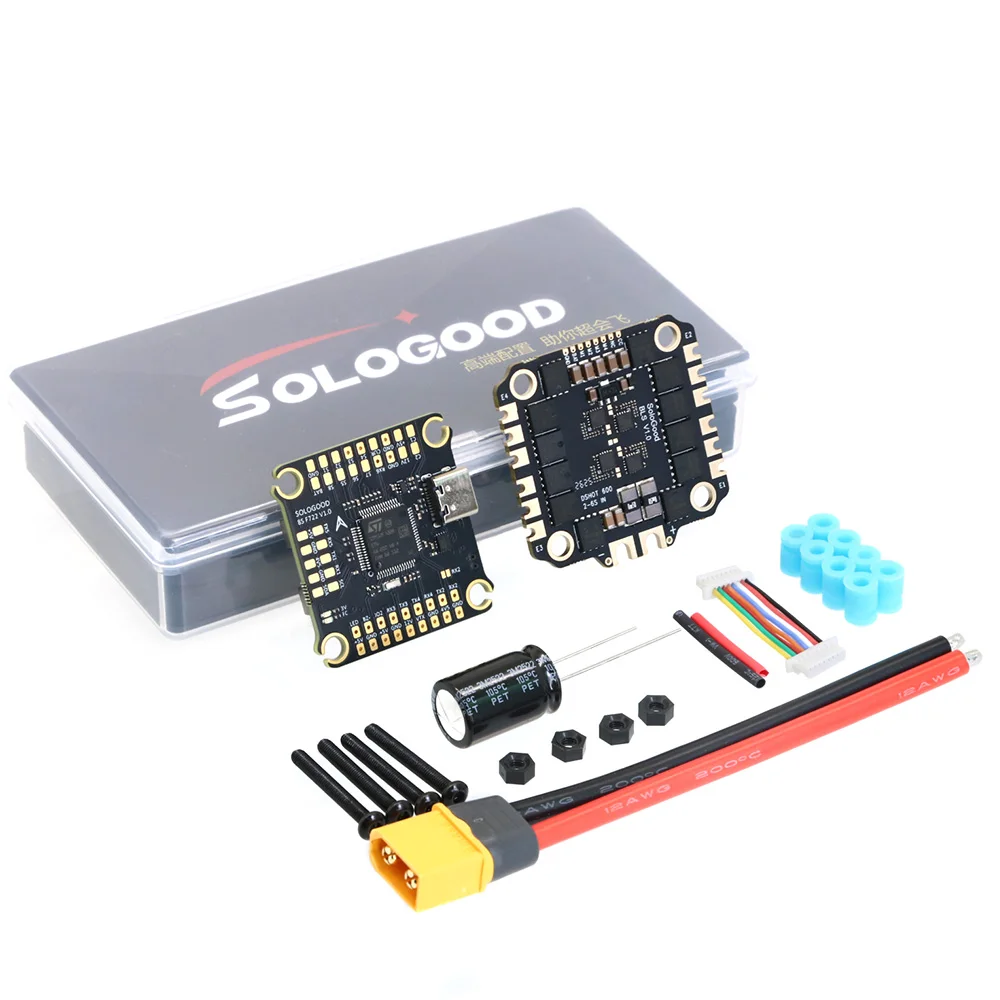

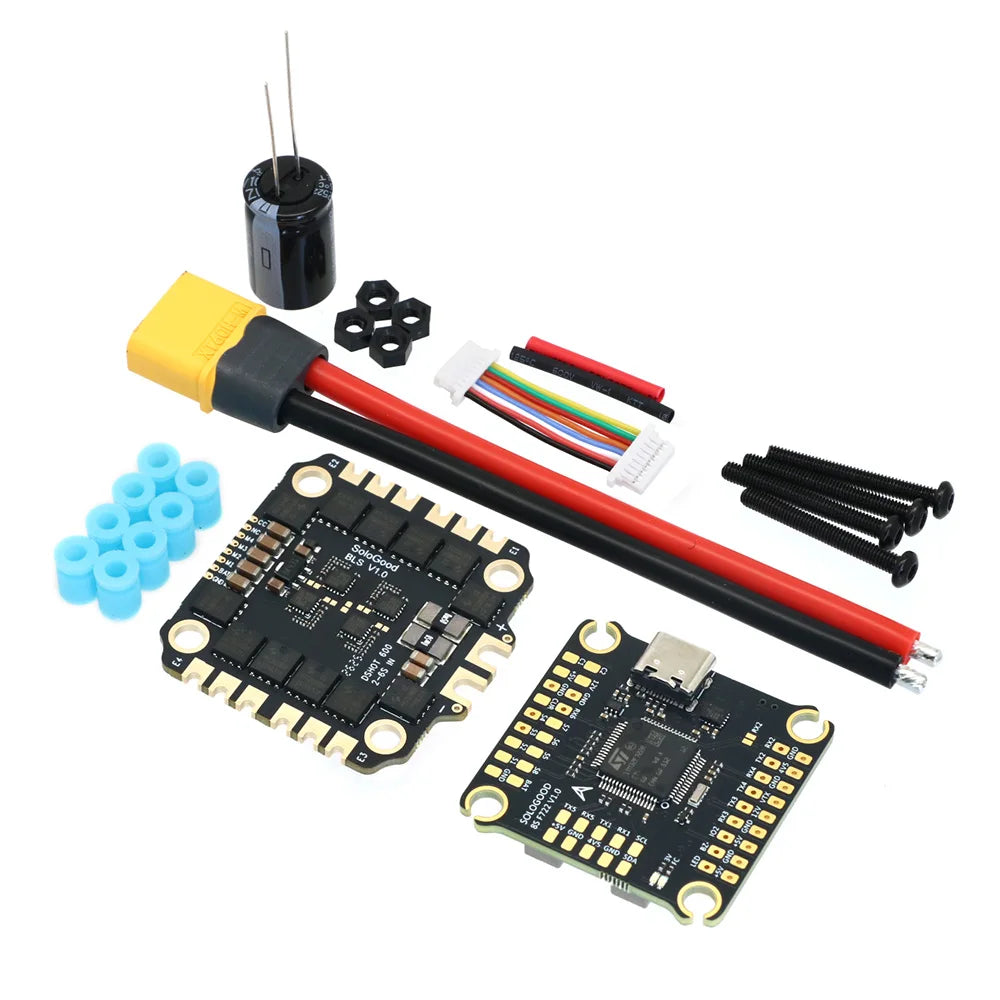

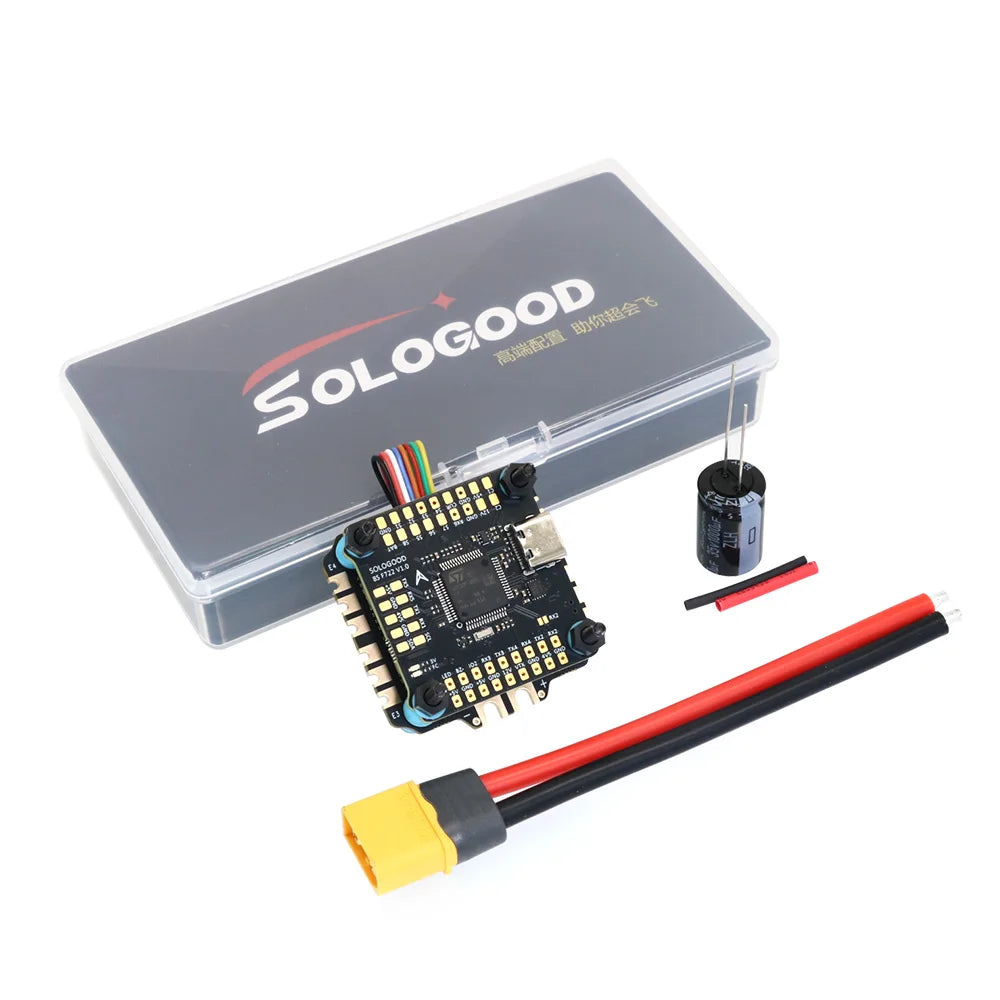

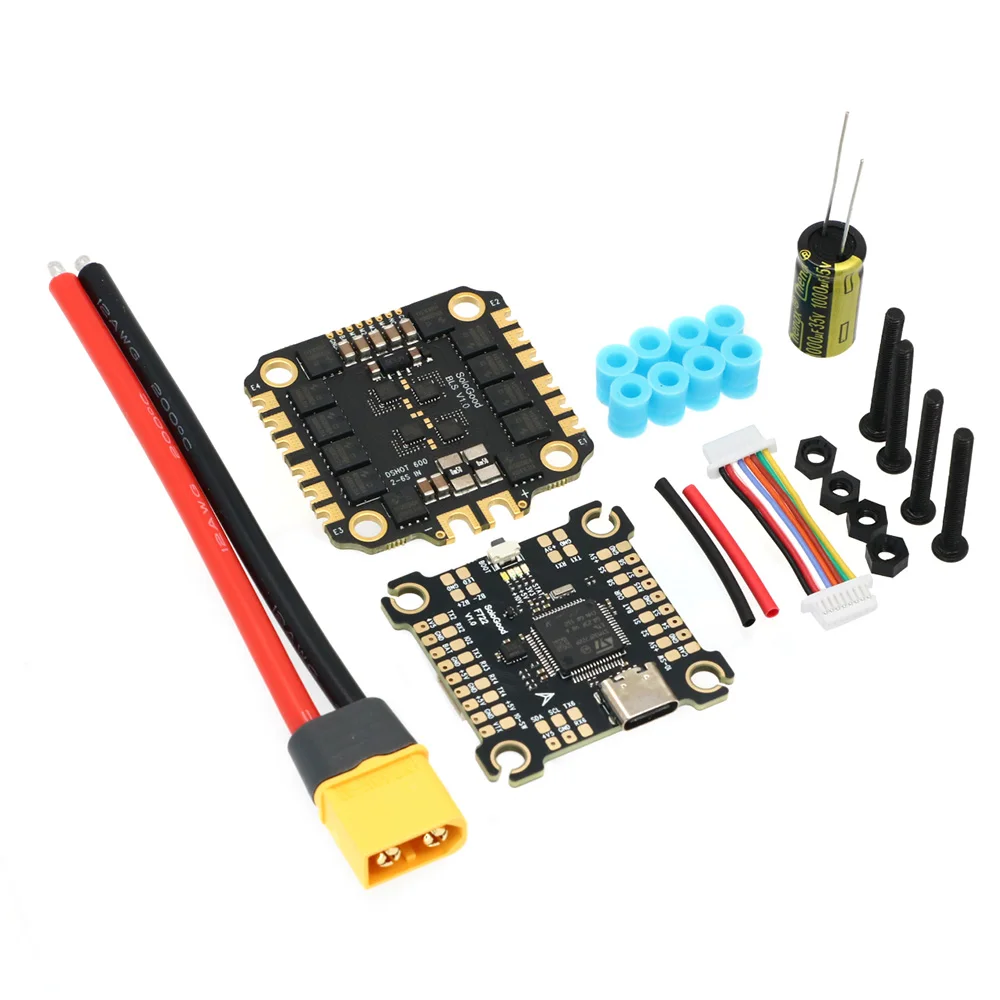

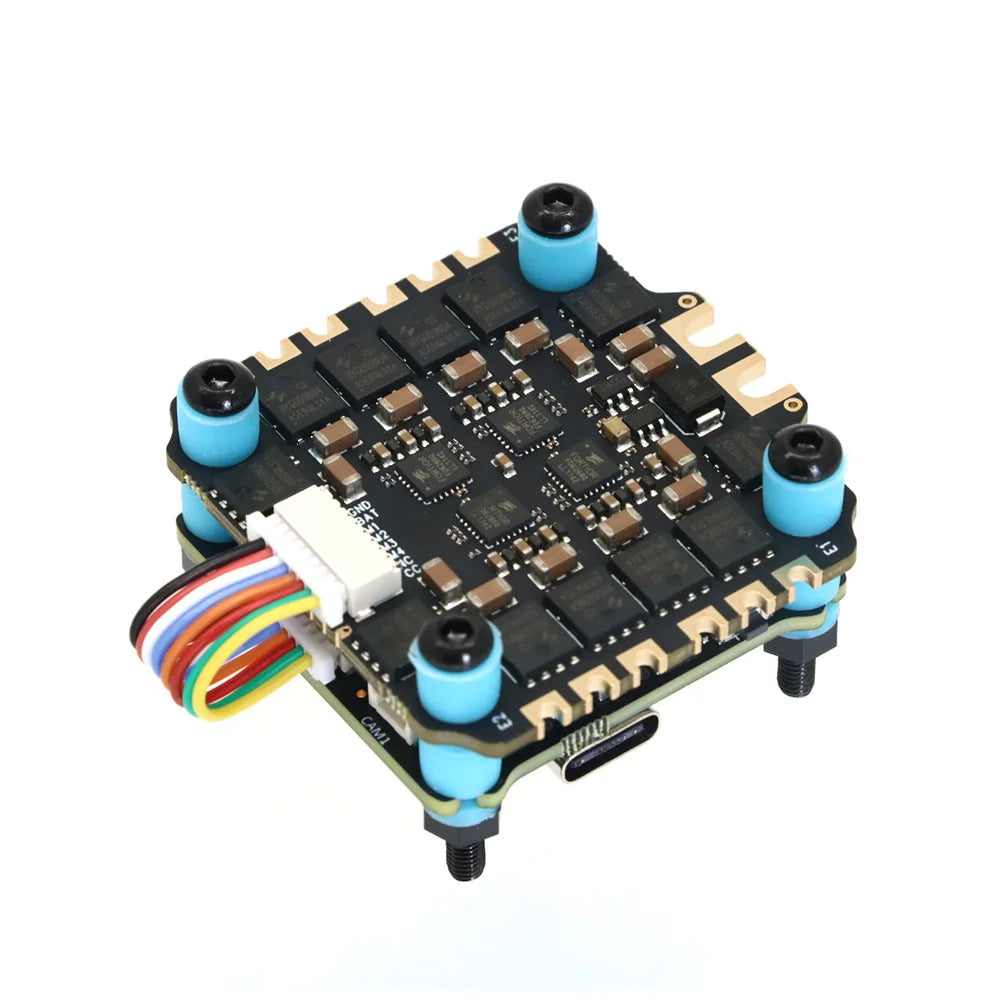

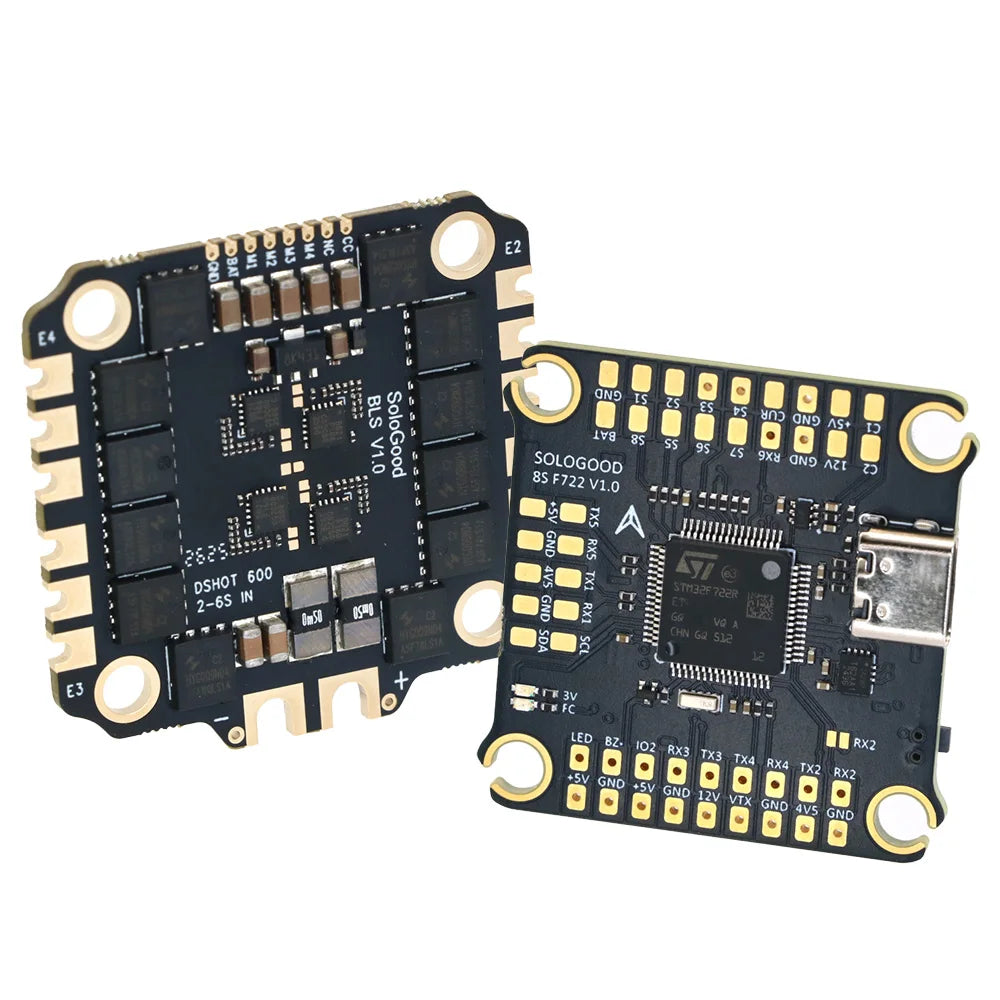

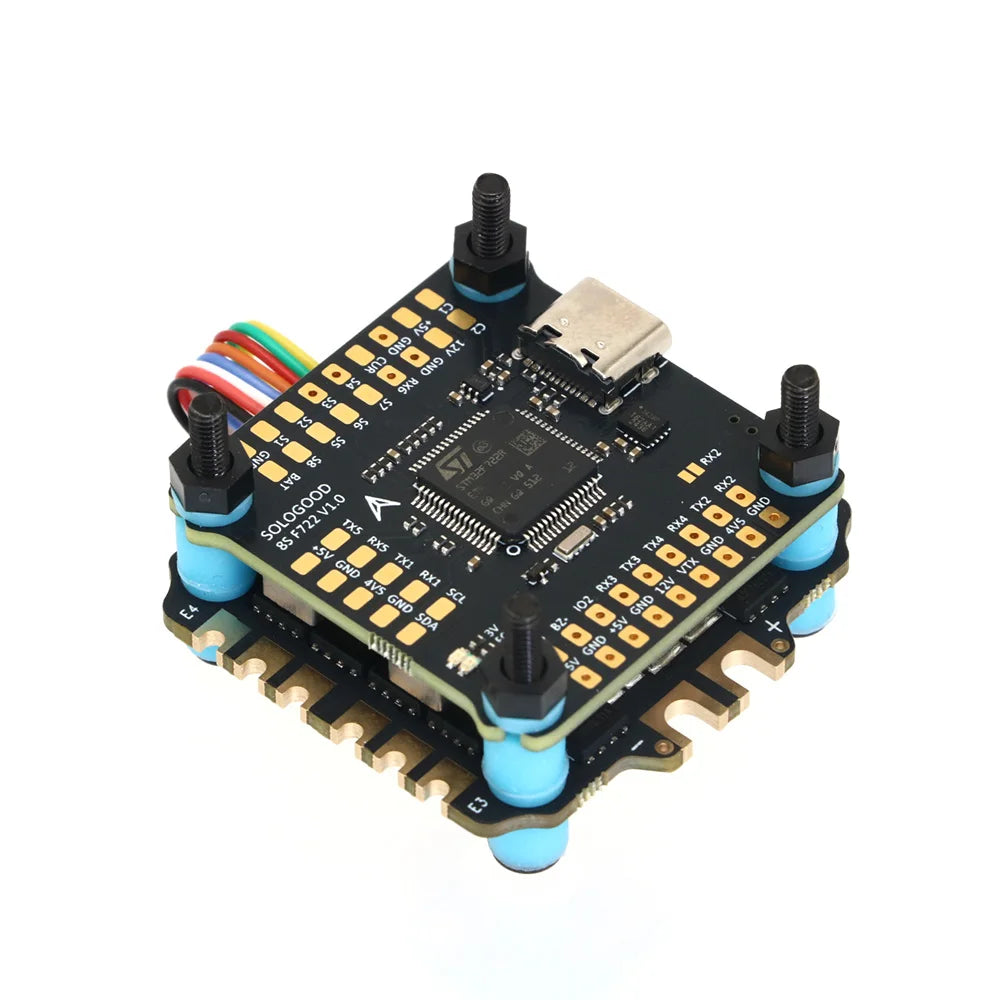

SoloGood 6S F722 60A Stack / 8S F722 60A Stack / 6S F722 80A Stack / 8S F722 80A Stack Flight Controller & BLHELI_S 4in1 ESC

$379.78 $730.35

Shipping calculated at checkout.

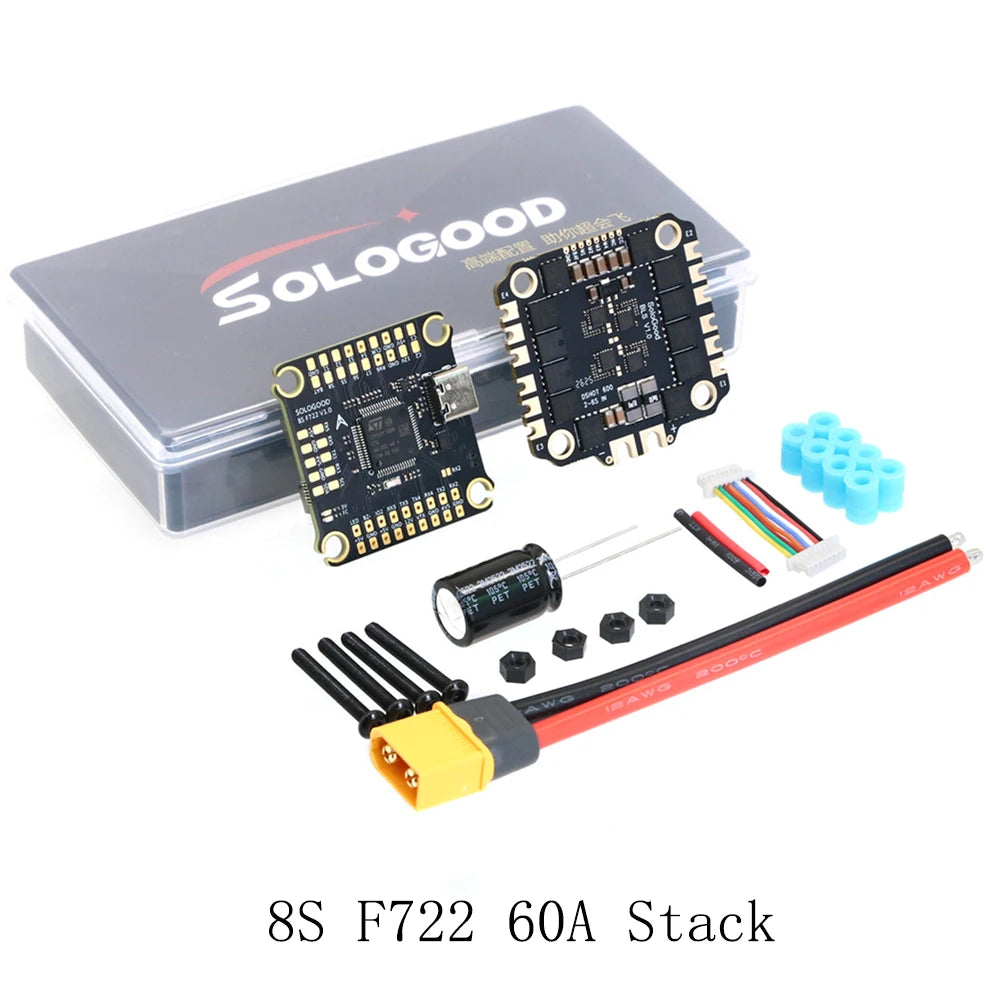

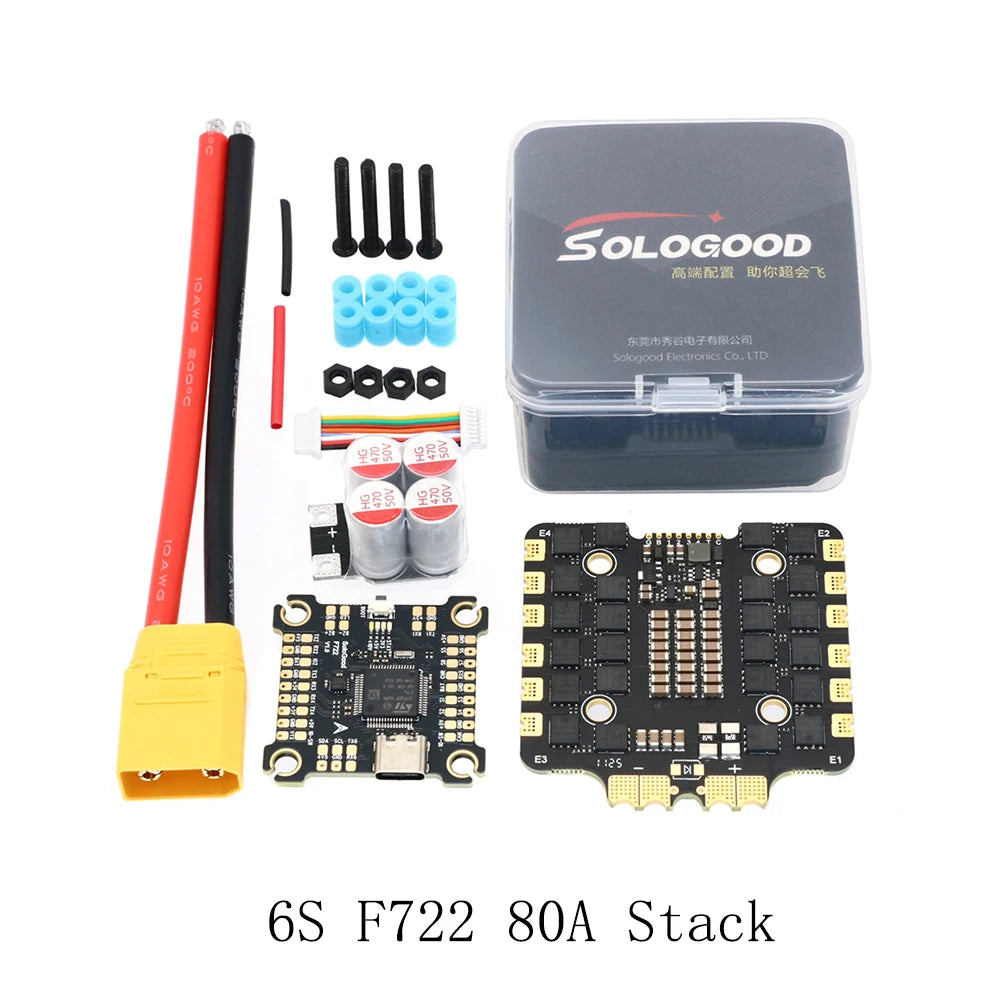

Color 8S F722 80A Stack 6S F722 80A Stack 8S F722 60A Stack 6S F722 60A Stack

Free Shipping on Orders of $100 or More

SPECIFICATIONS

Brand Name: underrow

Compatible Drone Brand: GoPro

Electrified: No

High-concerned chemical: none

Origin: Mainland China

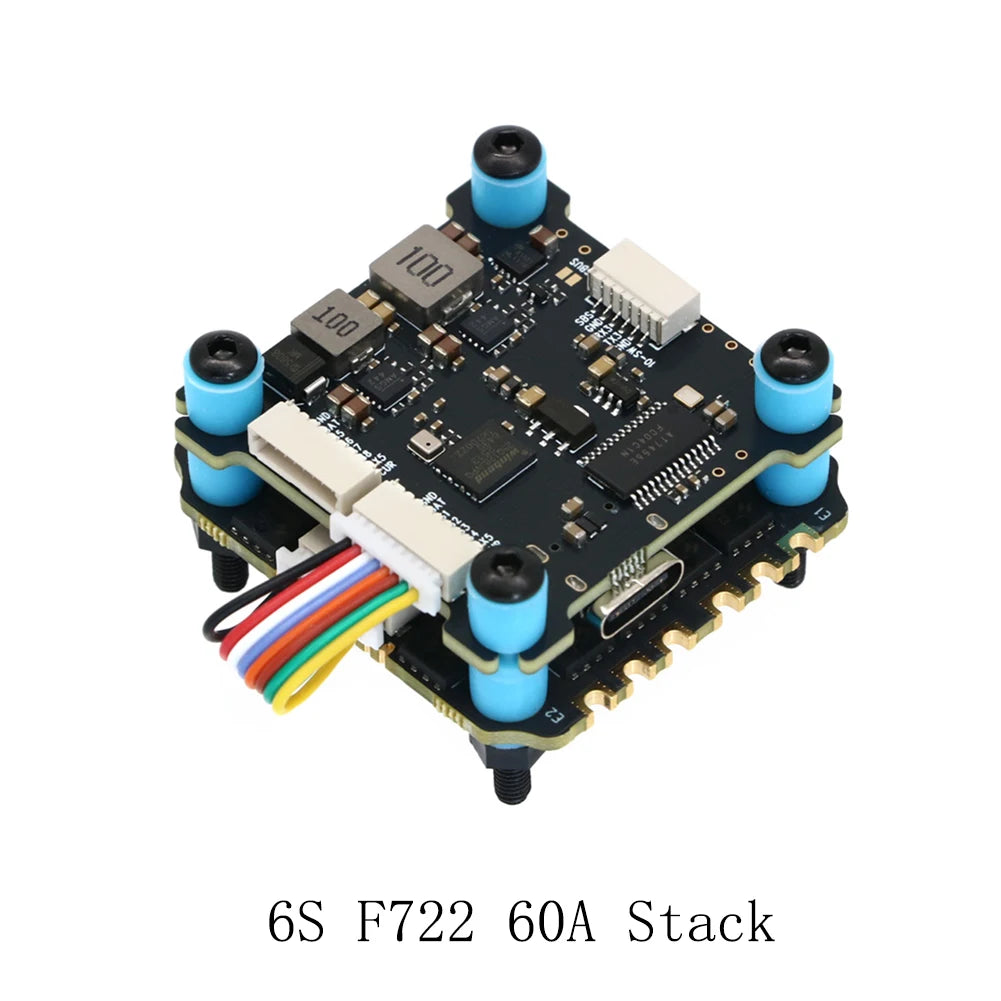

SoloGood F722 60A Stack

Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support (DPS310)

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

For more info about FC, pls scan this app

Sologood BLS60A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 55A

Maximum current 60A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

MOS: High performance Toshiba MOS

Installation hole position 30.5x30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g

SoloGood 6S F722 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g

FC Specifications

Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support (SPL-06)

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

For more info about FC, pls scan this app

SoloGood 6S F405 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g

FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)

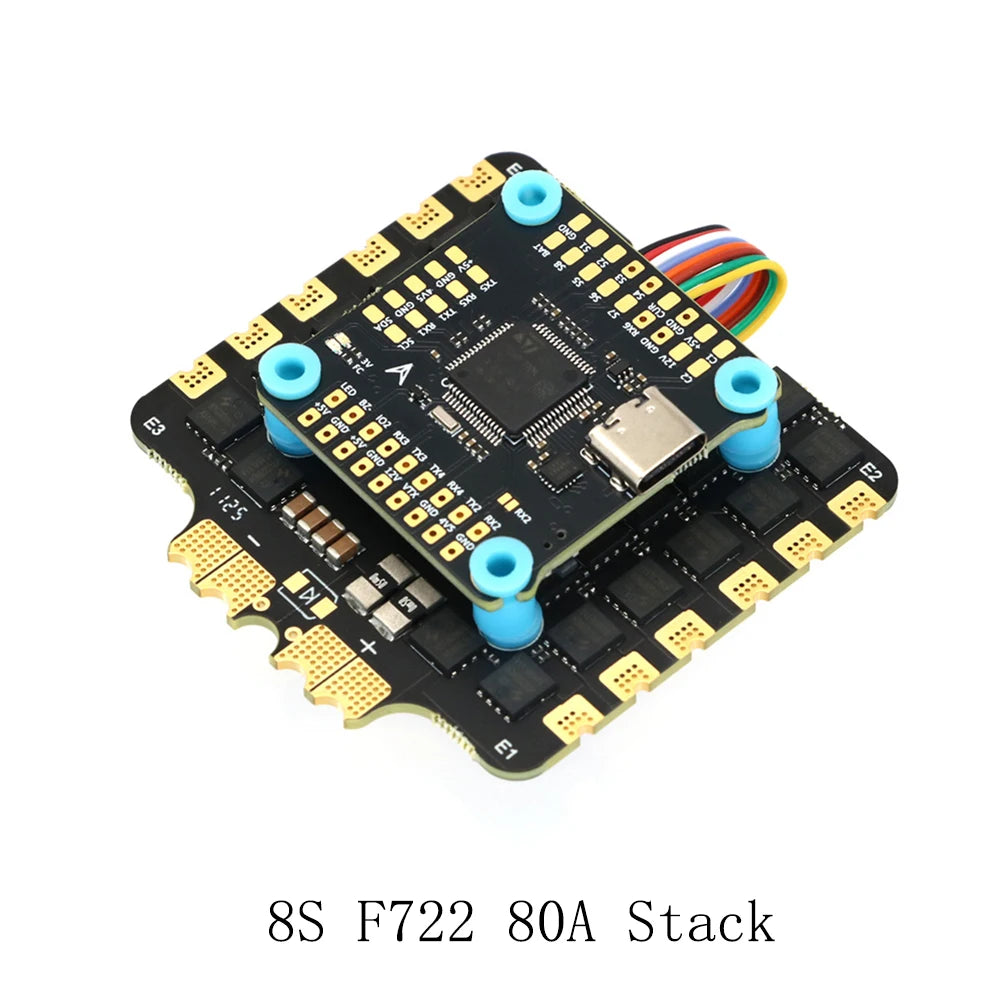

Sologood 8S 80A 4in1 ESC SPEC:

BLS 8-bit ESC-80A
Firmware:B_X_40_24_V0.21
Current scaling value:110
Input Voltage:3-8s
Continuous current:80A
Instantaneous current:90A
Size:58*58.4mm
Fixing hole:30.5*30.5 M4
Weight:28.4g

8S flight control spec:
Main control: STM32F722RET6
Gyroscope: ICM42688P
Input voltage: 3-8S
Barometer: Supports (spl06)
Output voltage: VBAT
OSD: Support (AT7456E)
Installation hole: 30.5x30.5MM
BEC: bec12v/2A,5v/2A
Flight control size: 38.5x38.5MM
UART port: 6
Weight: Approximately 9 grams
Black box: onboard (16M flash memory)
DJI/Vista: Support/6-pin
Number of supported motors: M1-M8
