Description:

It is a high-performance tracker designed for Meshtastic, as small as a credit card, effortlessly fitting in your pocket or attaching to your assets. It embeds Semtech's LR1110 (Supports 863-928 MHz range), Nordic's nRF52840, and Mediatek's AG3335 GPS module, providing Meshtastic users with a high-precision, low-power positioning and communication solution.

Note: SenseCAP T1000E comes with Meshtastic firmware by default. If you need to flash MeshCore firmware, please refer to the wiki for self flashing.

https://wiki.seeedstudio.com/sensecap_t1000_e_meshcore/

Feature

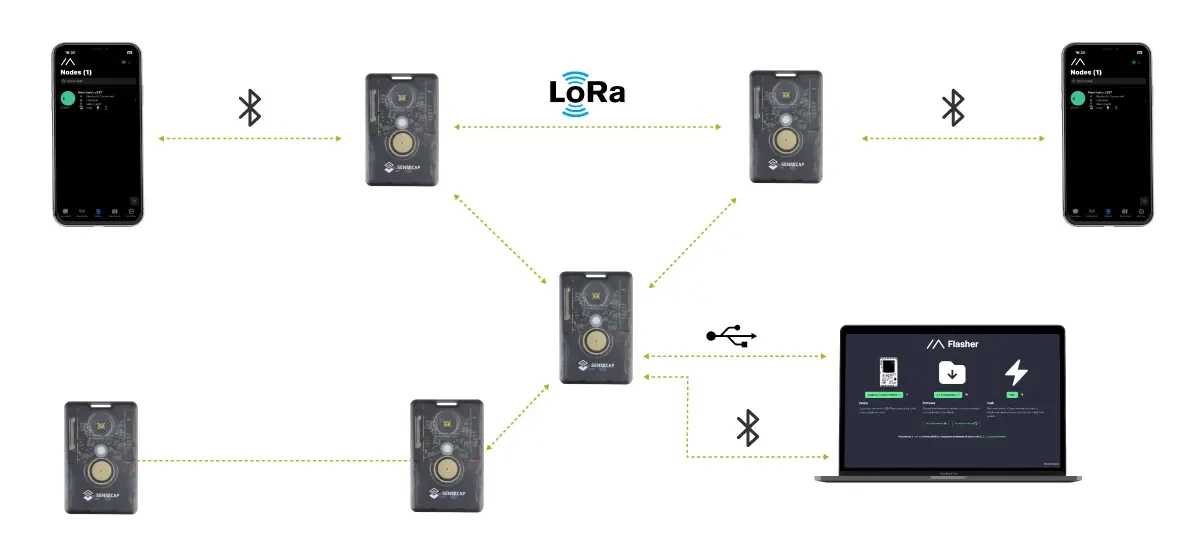

Meshtastic is an open-source communication project designed to create a mesh network-based communication system using low-power, long-range radio like LoRa.

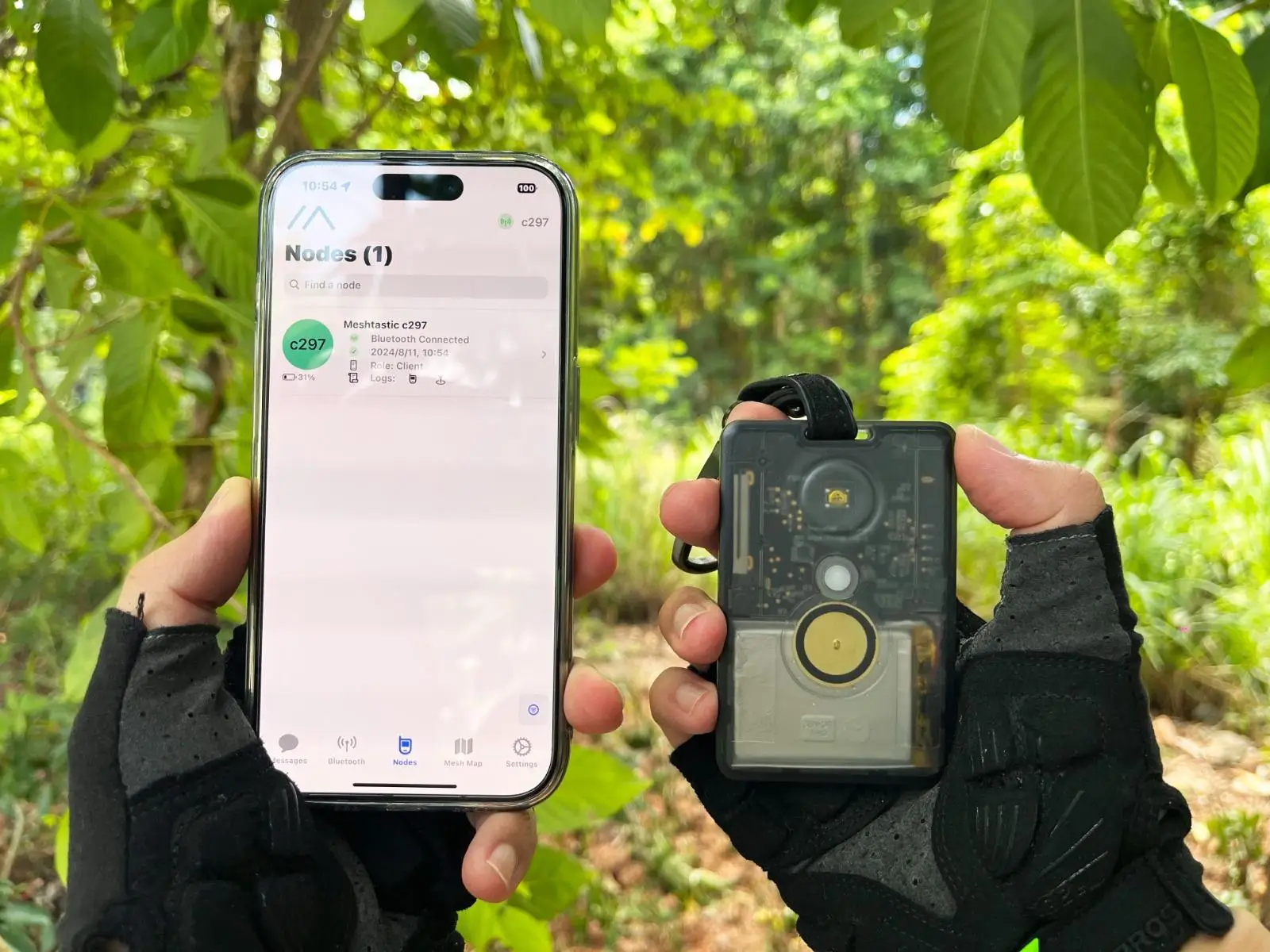

If you are in an environment without mobile signal or internet connection, such as during hiking, camping, emergency rescue, or other outdoor activities, as long as you and your companions each have a T1000-E and are paired with your phones, you can communicate and locate each other using the Meshtastic app.

🌱Multi-Protocol Support: Featuring nRF52840 and LR1110, it supports Bluetooth 5.0, Thread, Zigbee, and LoRa, ensuring compatibility with a wide range of devices and networks.

🌱Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.

🌱Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.

🌱Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.

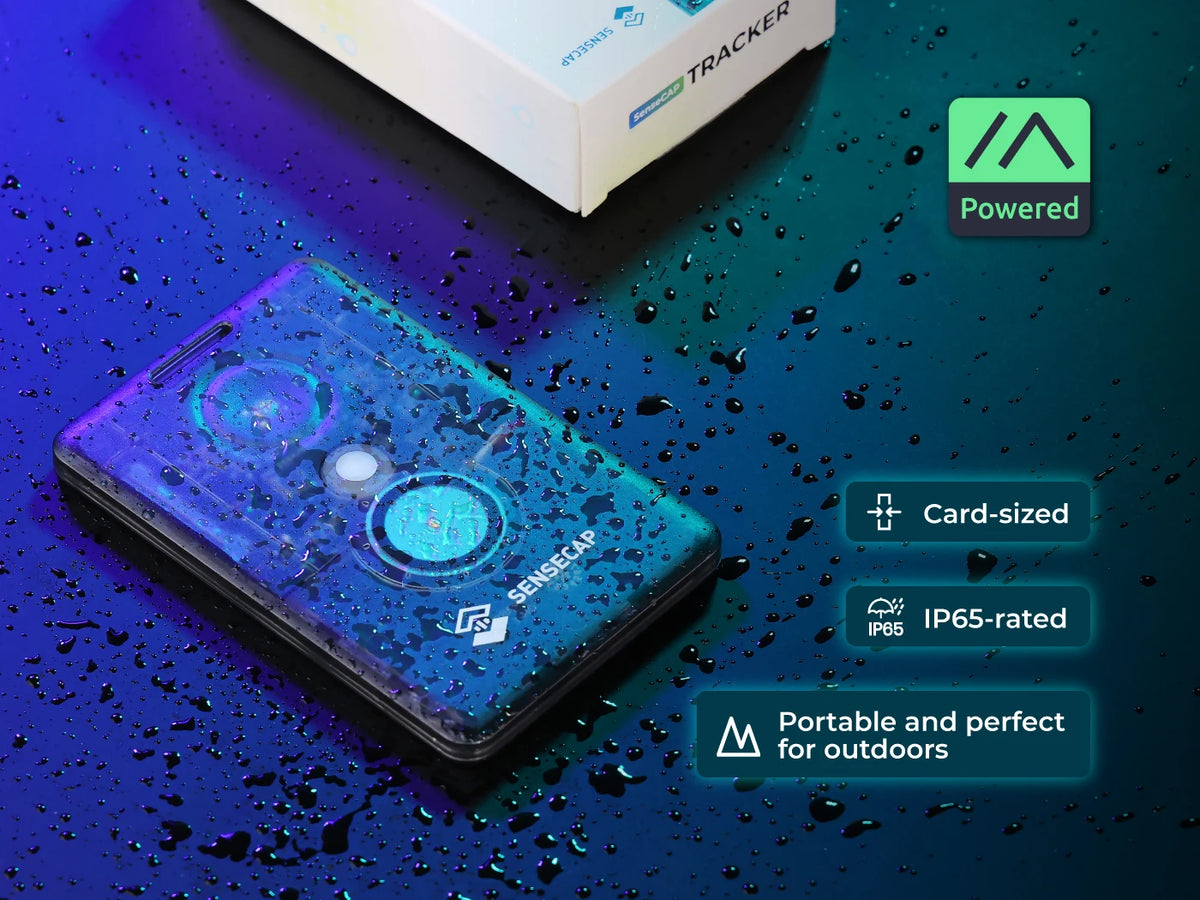

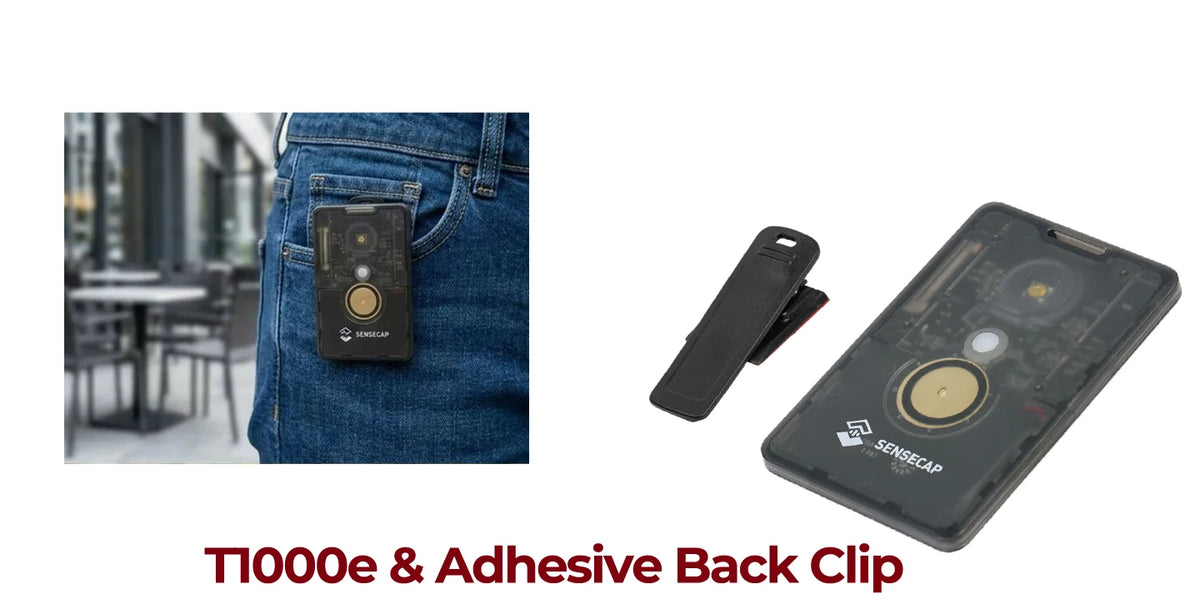

The T1000-E is the same size as a card and is only 6.5 mm thick, making it very portable.

The T1000-E comes with a 4-pin charging cable.

• Charging

• Device Firmware Upgrade

• Log Viewing

Specification

Network Protocol
LoRa (Supports 863–928 MHz range), Bluetooth v5.1

Temperature

• Range: -20℃ to +60℃

• Accuracy: ±1℃ (Min ±0.5℃, Max ±1℃)

• Resolution: 0.1℃

Light

• Detection Range: 0% to 100%

• 0% represents complete darkness, 100% represents the brightest light

3-Axis Accelerometer

• Detects movement in three axes

• Note: Not currently used in Meshtastic firmware

LED & Buzzer

• 1 × LED indicator

• 1 × Buzzer for status indication

Button

• 1 × Multifunctional button for operation

Antenna

• Built-in antenna for GNSS / LoRa / Wi-Fi / BLE

Communication Distance

• 2 to 5 km (varies by antenna, installation height, and environment)

IP Rating

• IP65 (Dustproof and water-resistant)

Dimensions

• 85 × 55 × 6.5 mm

Device Weight

• 32 g

Operating Environment

• Temperature: -20℃ to +60℃

• Humidity: 5% to 95% (non-condensing)

Certification

• CE / FCC certified

Battery

Battery Capacity

• Built-in rechargeable lithium battery, 700 mAh

Battery Monitoring

• Periodic uplink of battery level for remote monitoring

Charging Cable

• 1 m magnetic USB charging cable (adapter not included)

Power Input

• Voltage: 4.7V to 5.5V DC

Charging Temperature Limit

• 0℃ to +45℃

Hardware overview

Application

If you've got a IP65 rating Meshtastic device with GPS, temperature, lightness and motion (3-Axis Accelerometer) sensors, numerous potential applications await. Use the Meshtastic APP to communicate with low-power, long-range LoRa® devices via your phone. Connect with nearby nodes, participate in group chats, and share geographic locations—all in areas without cellular coverage.

Recommended Use Cases：

🌱Asset Tracking: Track the movement and location of your assets and monitor environmental and moving conditions in real-time where the asset is located for better management.

🌱Outdoor Adventure: Use this ready to deploy Meshtastic device for off-grid communication with your hiking or camping group. The GPS can help track locations, while temperature and motion sensors can provide real-time environmental and movement data to ensure safety.

🌱Environmental Monitoring: Collect and transmit environmental data. Deploy the device in remote areas to monitor and log temperature and lightness over time, contributing to local weather data collection. Use the device to track and monitor environmental conditions in wildlife habitats, aiding in research and conservation efforts.

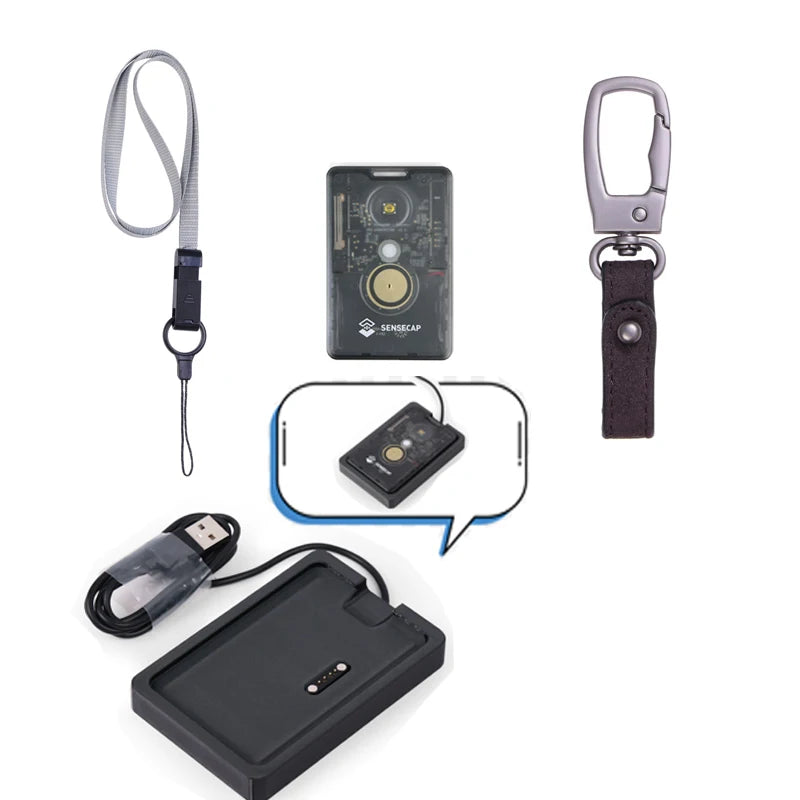

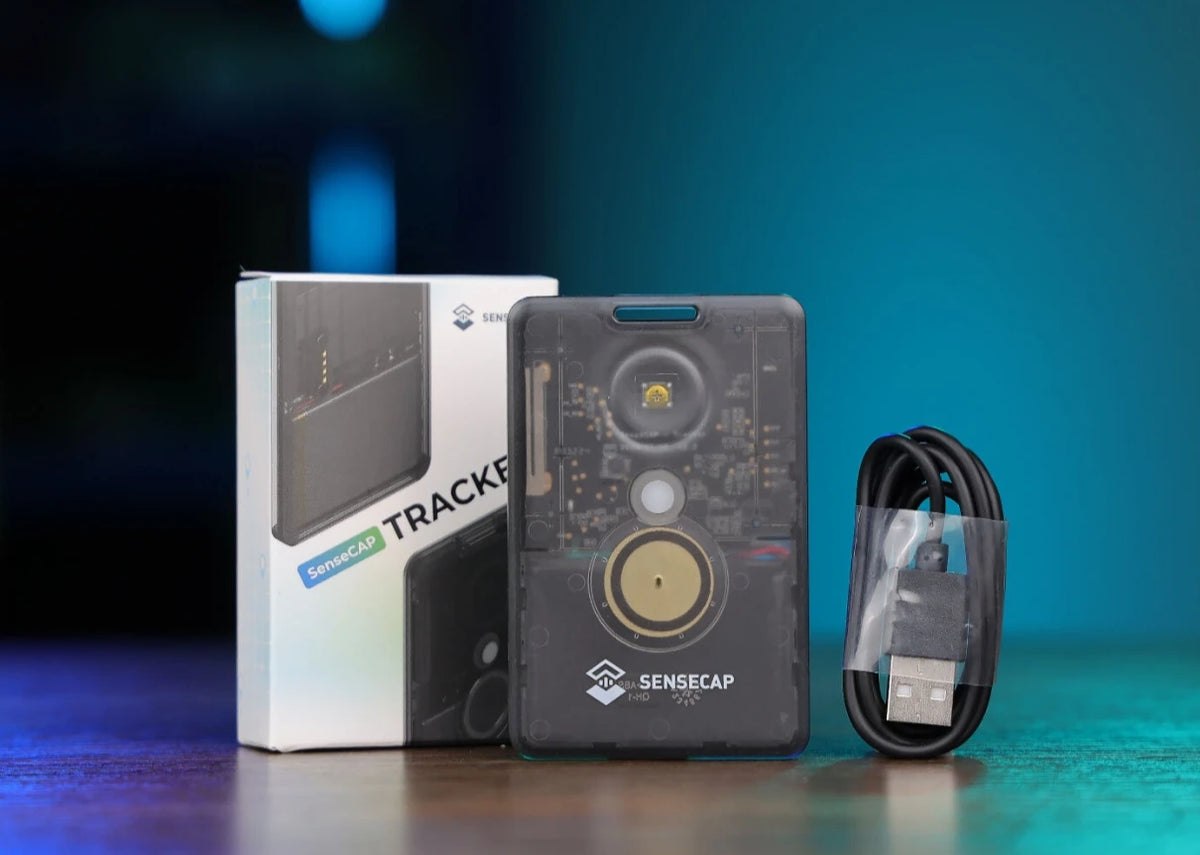

Part List
Tracker T1000-E x1
USB Cable (Adapter not included) x1
