M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node

$53.53 $102.95

Shipping calculated at checkout.

Free Shipping on Orders of $100 or More

SPECIFICATIONS

Brand: M5Stack

Brand Name: M5Stack

Choice: yes

High-concerned chemical: none

Model: AtomS3 Lite

Origin: Mainland China

Series: Atom Series

Type: others

M5Stack AtomS3 Lite Programmable Controller

Product Features

Developed based on ESP32-S3FN8
Comes with USB download function
Programmable button
Infrared emission function
Expandable pins and interfaces
Development platform: Arduino, UIFlow

Applications

IoT node
Microcontroller
Wearables

Package Includes

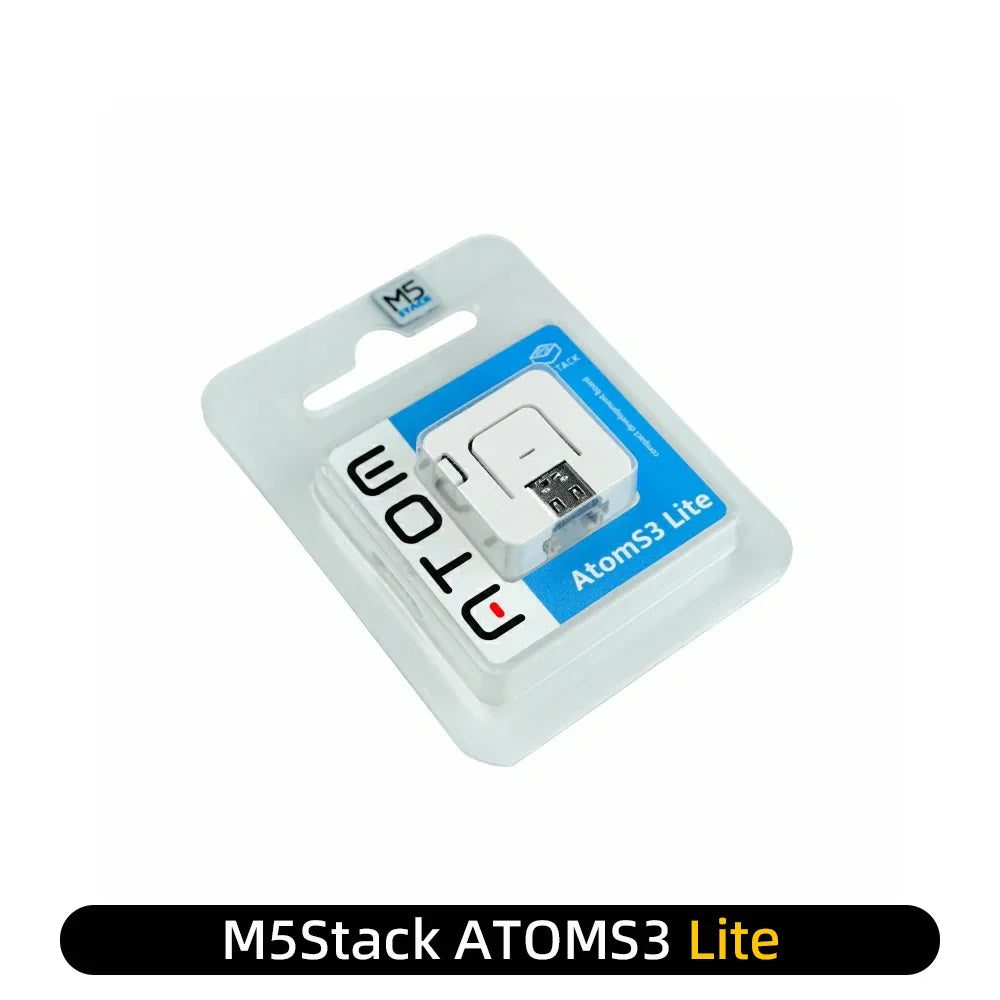

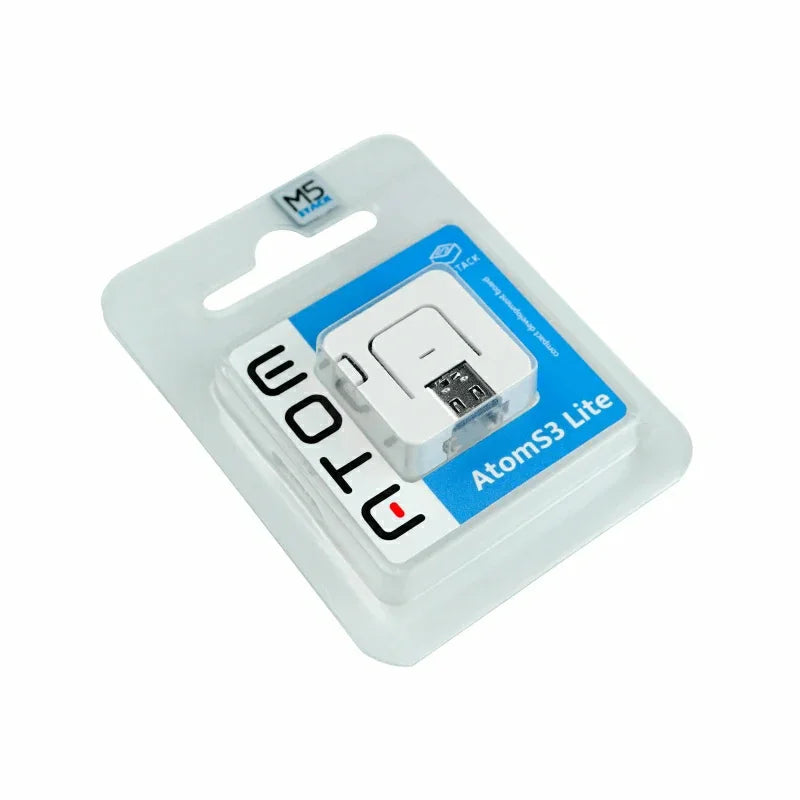

1x AtomS3 Lite

Specification

Resources Parameters

MCU: ESP32-S3FN8

RGB: WS2812C-2020

DCDC: SY8089

Operating temperature: 0°C ~ 40°C

Supply voltage: 5V

Power supply mode: TYPE C

Output voltage: 3.3V

IO interface × 6: G5/G6/G7/G8/G38/G39

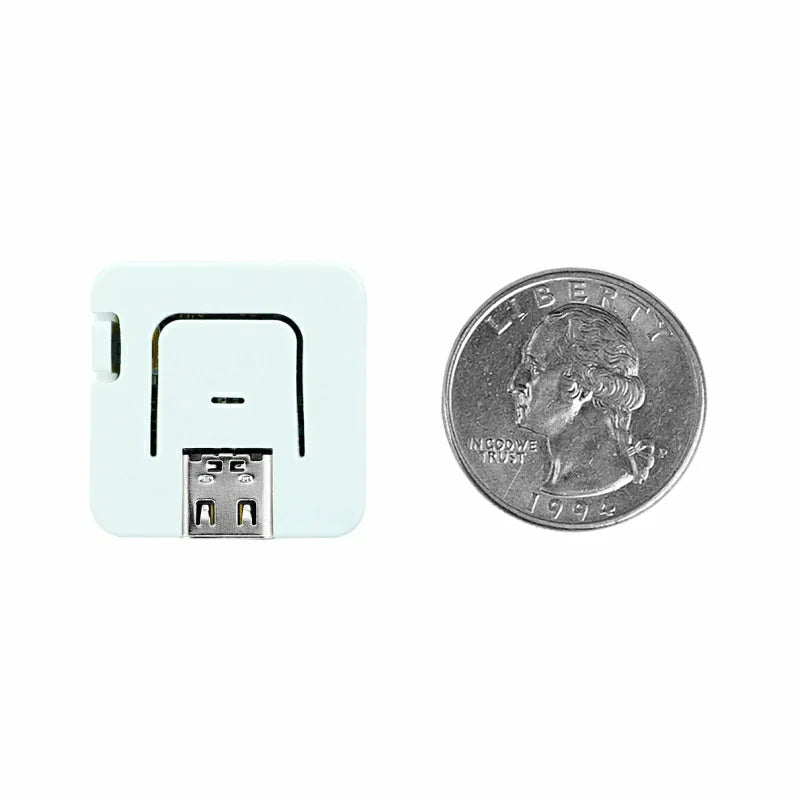

Product Size: 24mm × 24mm ×9.5mm

Package Size: 65mm × 44.5mm × 14mm

Product Weight: 5.3g

Package Weight: 9.5g

Product details

Schematic

Module Size

AtomS3 Arduino Example

Product Description

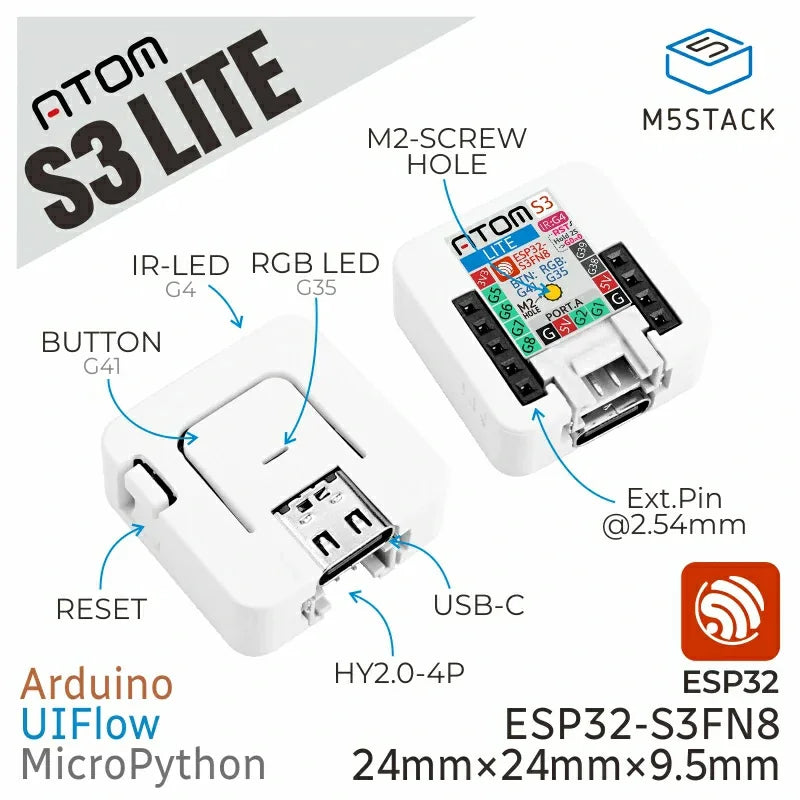

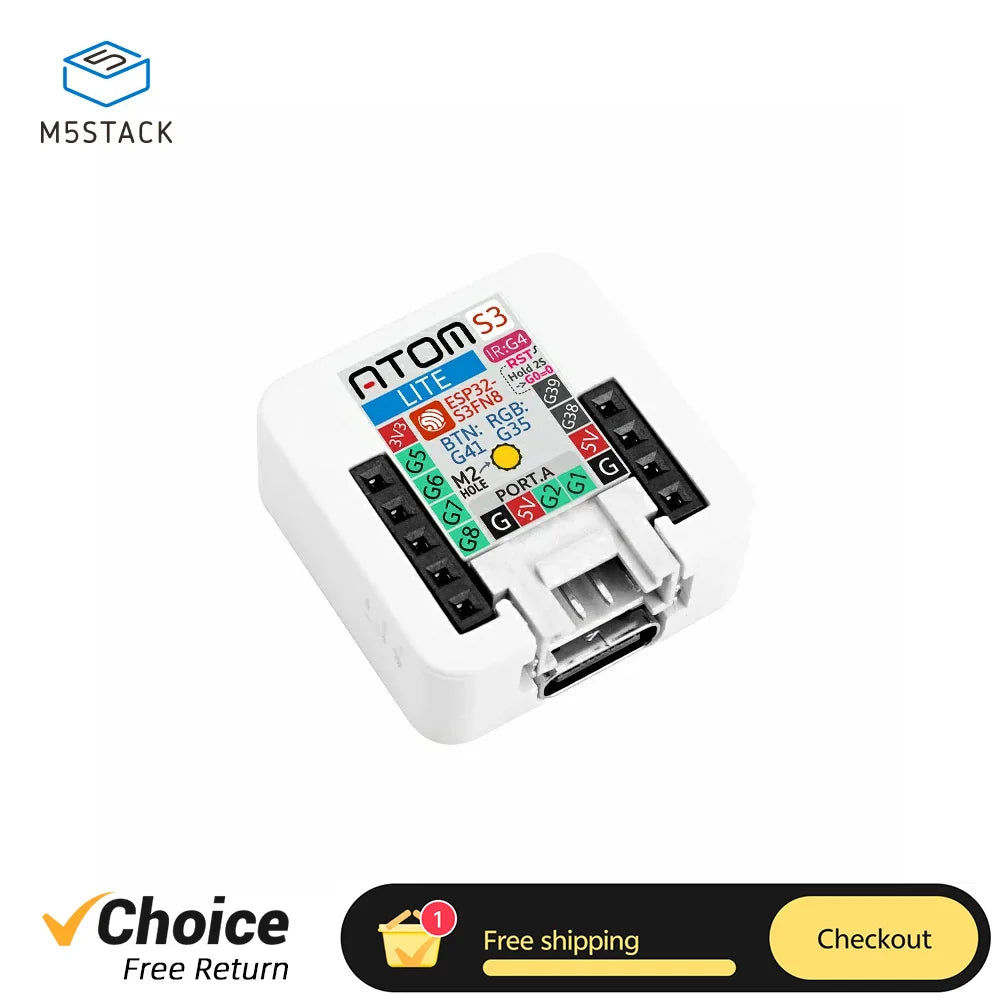

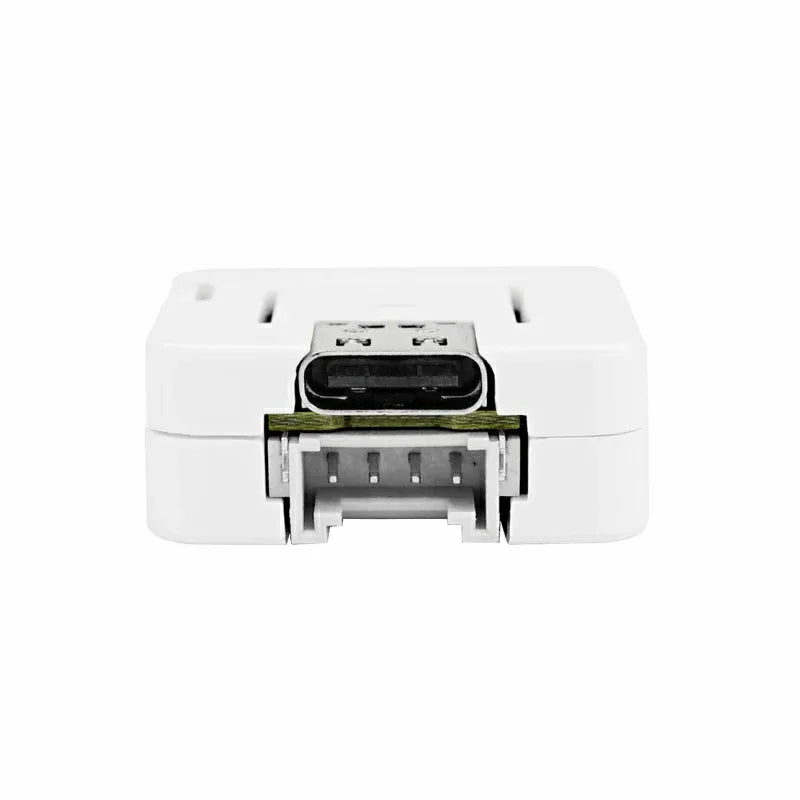

ATOMS3 Lite is an Atom Series Programmable Controllerin the M5Stack Development Kit series using ESP32-S3 as the main control, its size is only 24*24*9.5mm, the main control adopts theESP32-S3FN8 scheme, with 8MB SPI flash memory, integrated Wi-Fifunction, built-in 3D antenna, 5V to 3.3V power circuit, providing infrared emitting light, RGBStatus Indicators, Button and GROVE/HY2.0-4P interfaces. The bottom of the product is equipped with apower supply and 6 GPIO headers to facilitate expansion applications. The on-board Type-C interface can realize program download and serial port communication functions; An M2 screw hole is provided on the back for fixing. Suitable for all kinds of embedded smart device applications.

Download Mode

Press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.
