SPECIFICATIONS

Brand Name: CHOSFOX

High-concerned chemical: none

Material: others

Origin: Mainland China

Type: Keyboard Switch

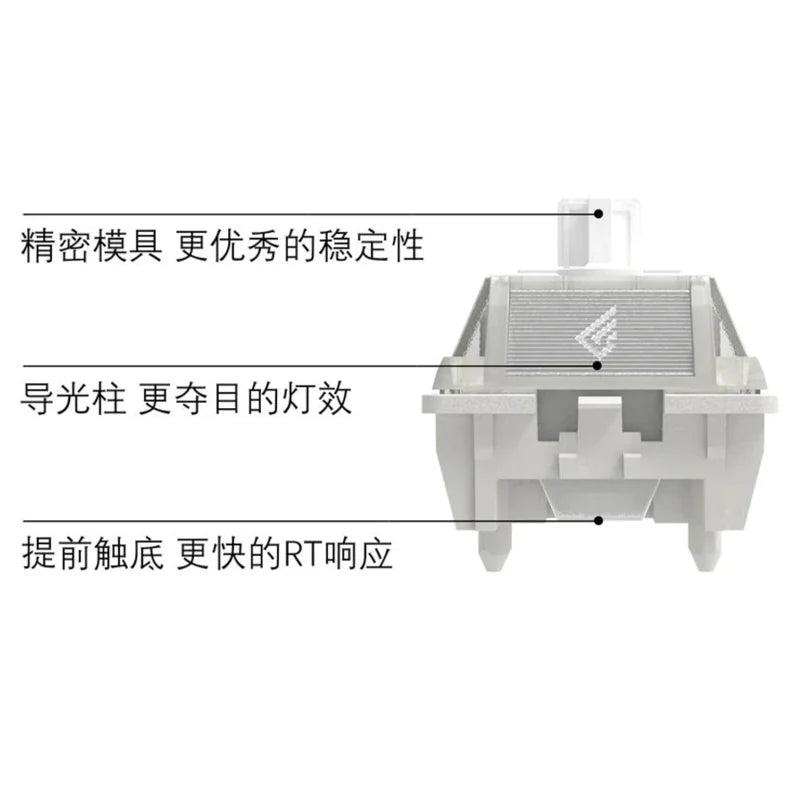

The switch is a Hall effect switch with a mold designed by Geonworks for high accuracy due to the small mold cavity.

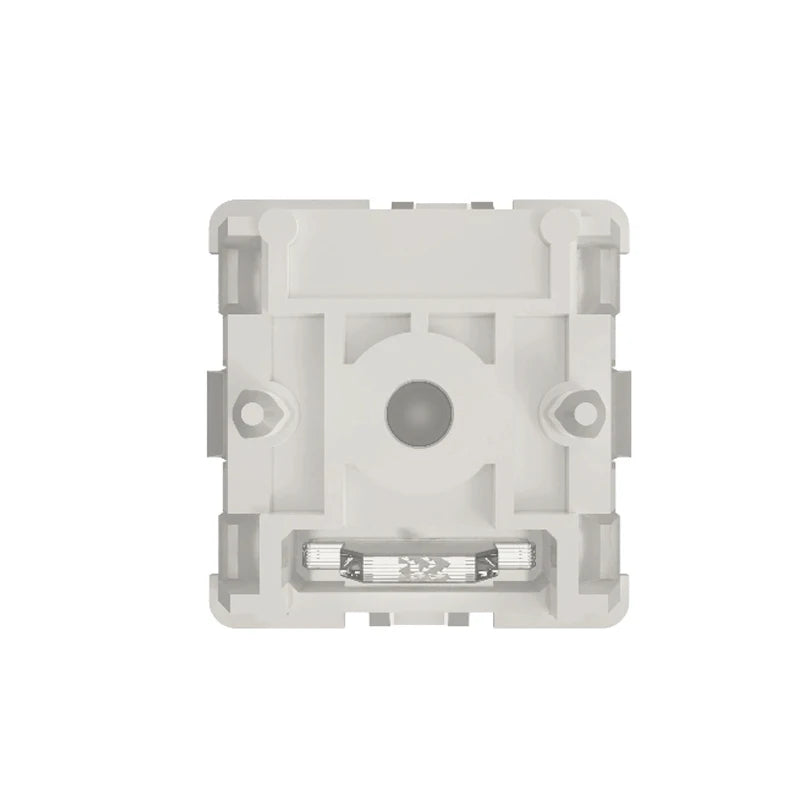

It has a full travel of 3.4 mm and has a unique design with a through-hole bottom housing, but the magnetic poles touch the bottom.

It is an HE switch, similar to the MX switch, so there is no foreign body sensation when using it.

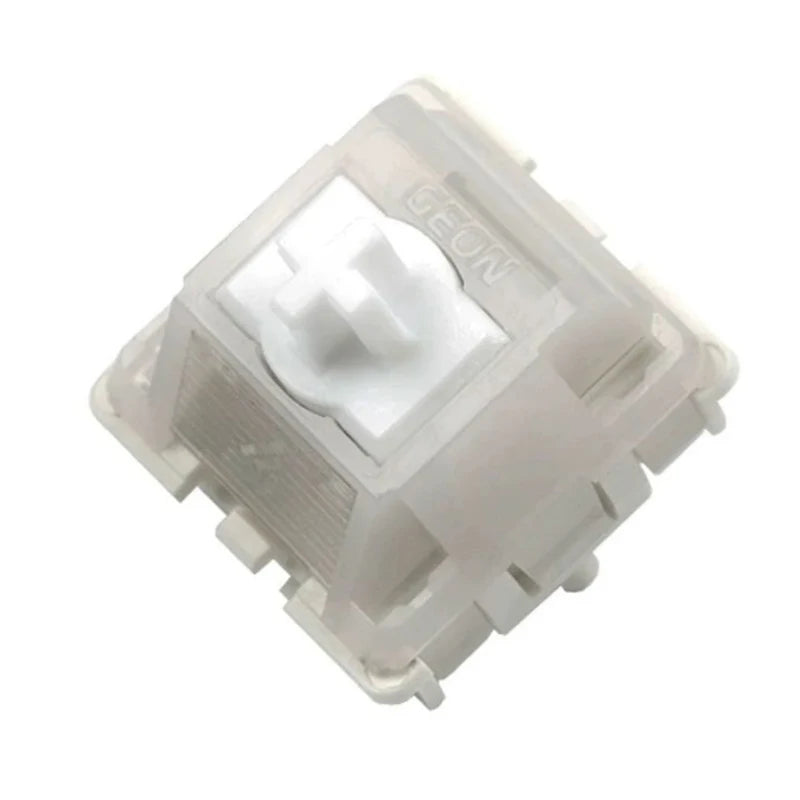

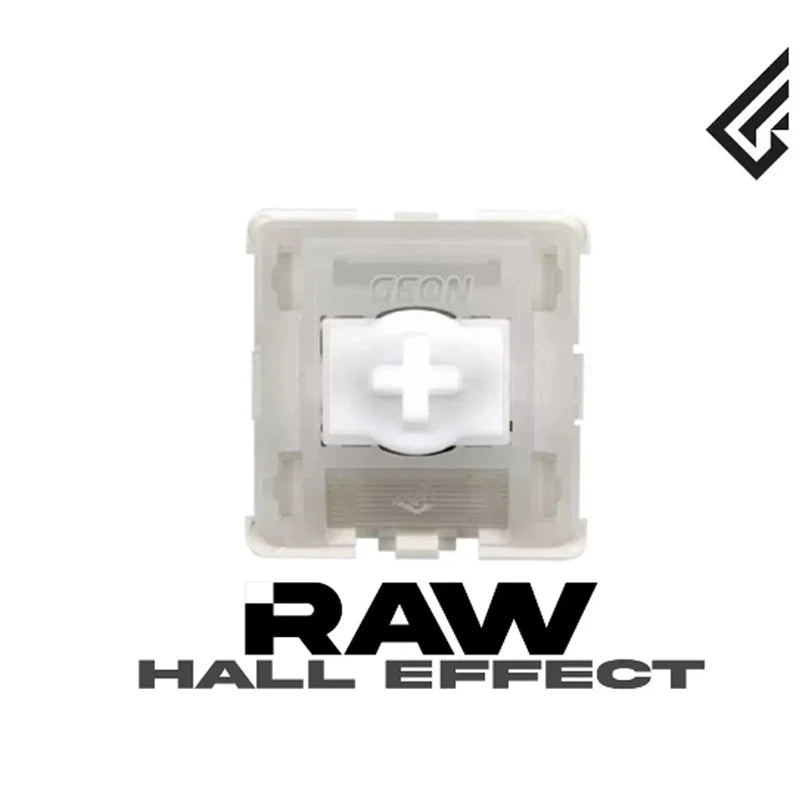

GEON RAW HE Linear Switch （2 Pins)

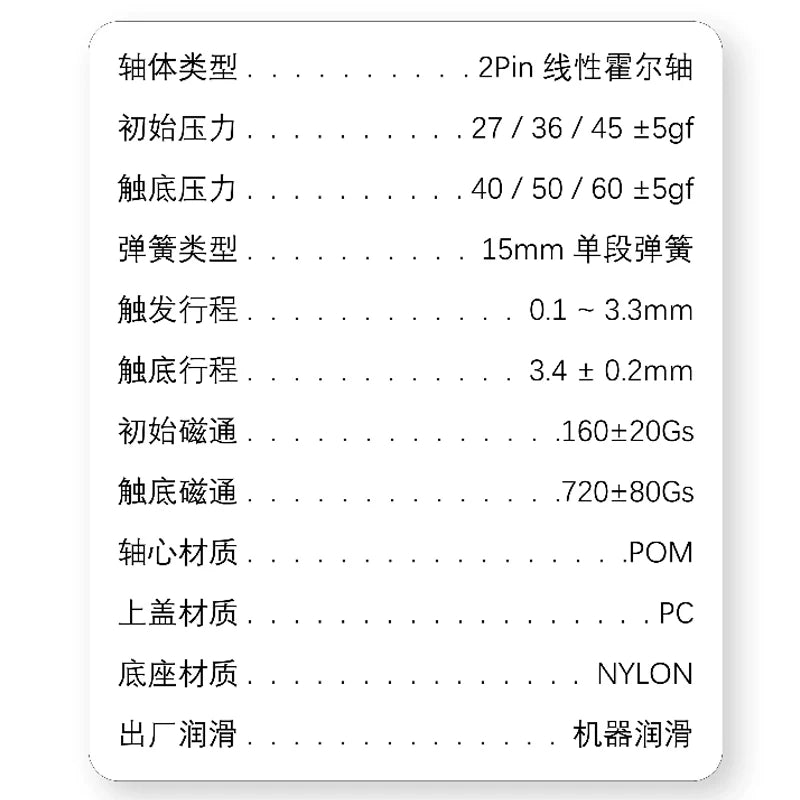

Switch Type – Linear, Lubed

Initial Force – 27.0g / 36.0g / 45.0g

Bottom-out Force – 40.0g / 50.0g

Magnetic Flux

Initial ： 160±20Gs

Bottom-out ：720±80Gs

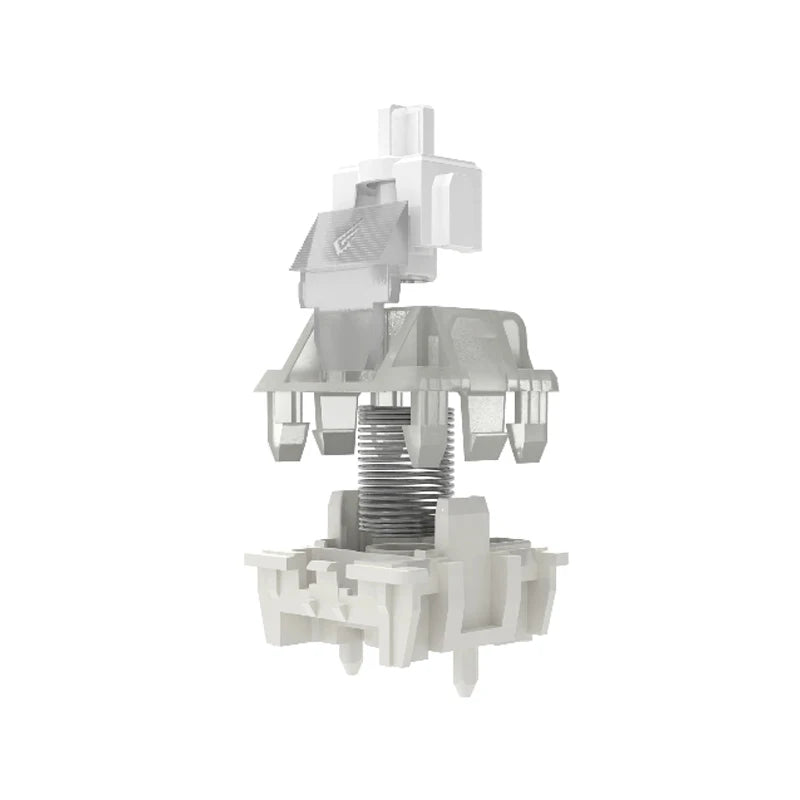

Spring Length ： 15.0mm

Spring Type - Single-stage

Pre Travel - 0.1 ~ 3.3mm (Analog)

Full Travel - 3.4mm

Top Housing Material - PC

Bottom Housing Material - NYLON

Stem Material - POM

Note

We can ship for you and wholesale, please feel free to contact us if you have any questions.
