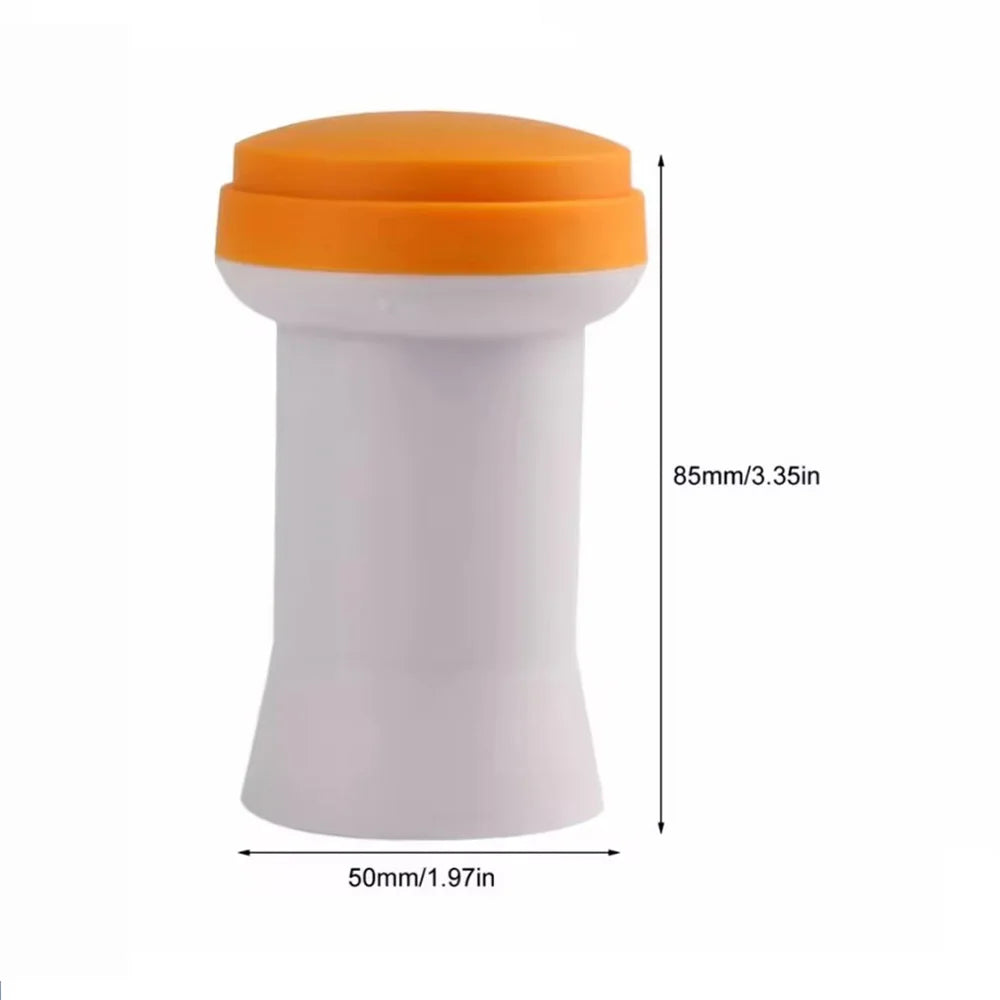

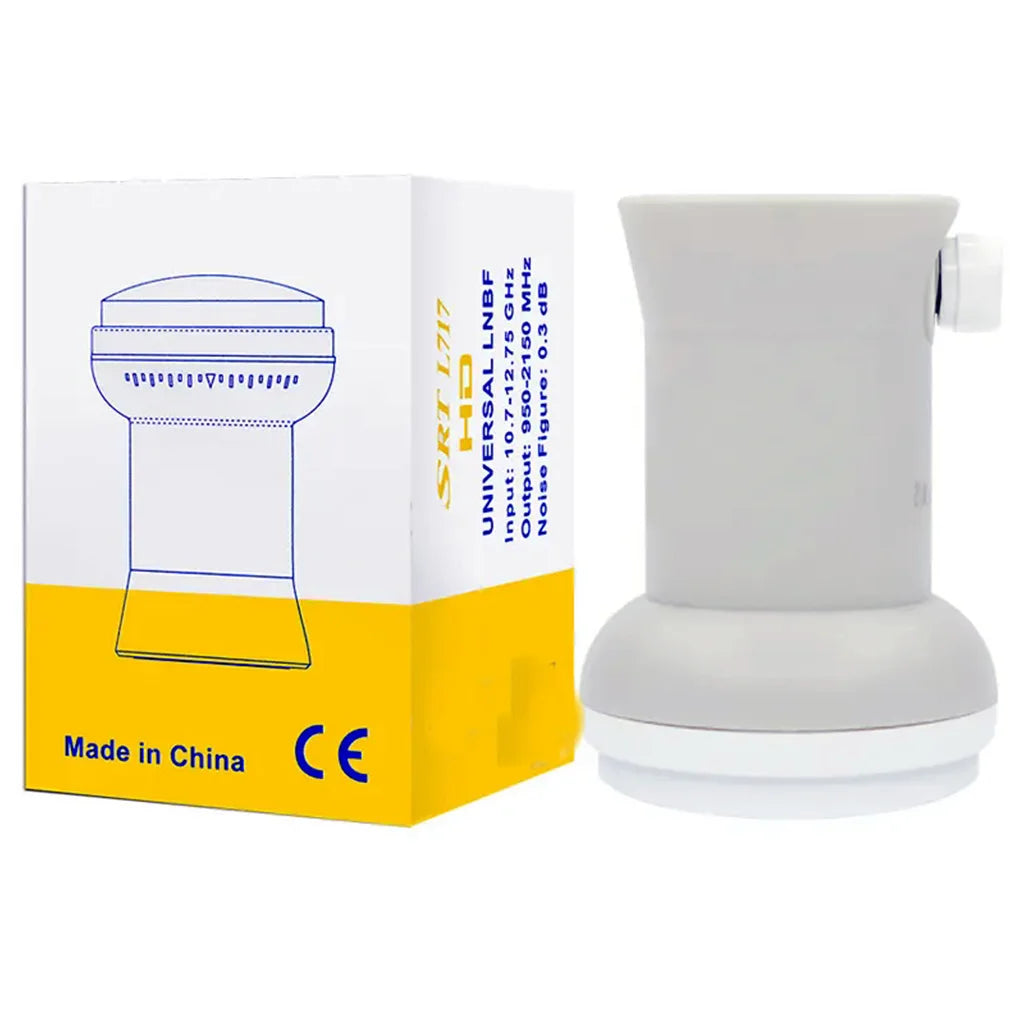

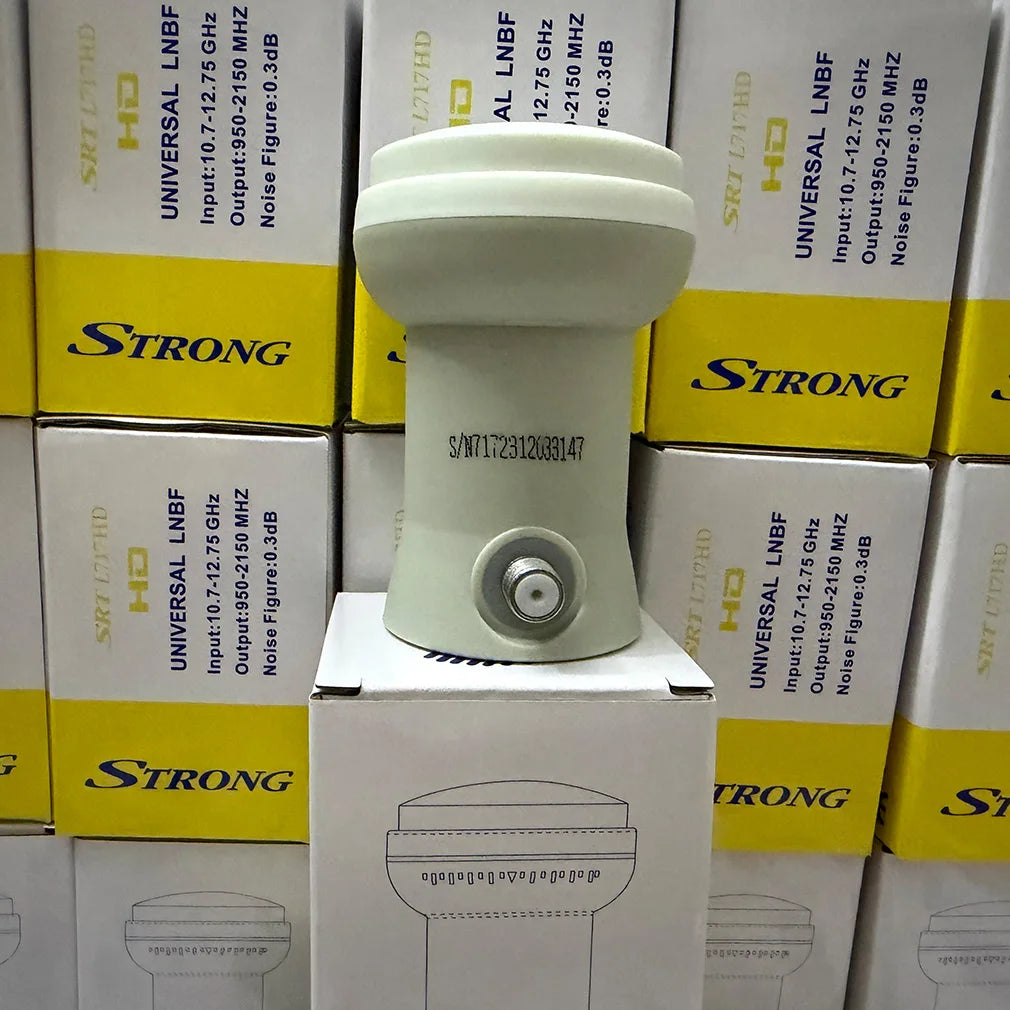

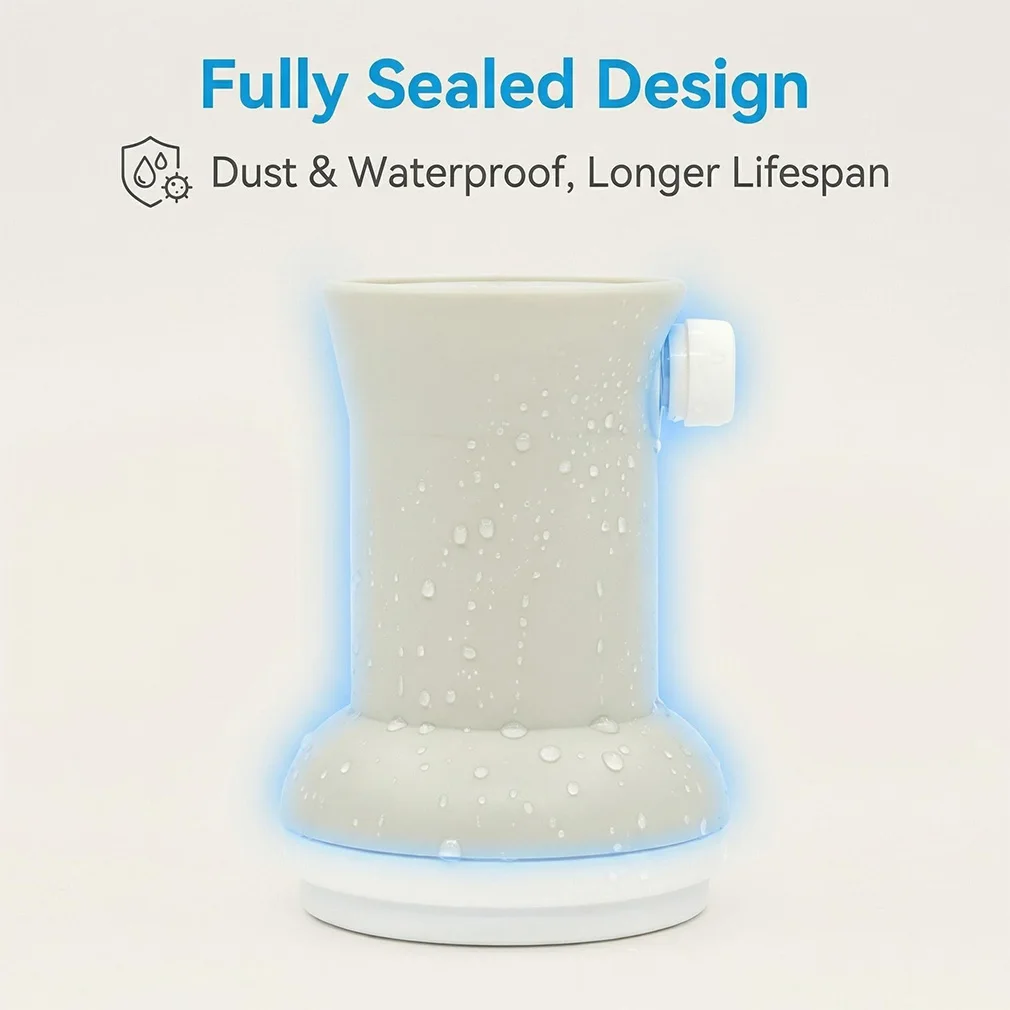

Full HD Satellite TV Receiver Universal Single LNB L9.75/10.6 KU Lnb 1 Output LNBF Waterproof Satellite Dish LNB Digtal KU-BAND
White
Sale price
$22.41
Regular price $40.74
Skip to product information
Full HD Satellite TV Receiver Universal Single LNB L9.75/10.6 KU Lnb 1 Output LNBF Waterproof Satellite Dish LNB Digtal KU-BAND
Sale price
$22.41
Regular price $40.74
Shipping calculated at checkout.
Free Shipping on Orders of $100 or More
SPECIFICATIONS
Brand Name: OIMG
Choice: yes
High-concerned chemical: none
Origin: Mainland China
IN PUT:10.7-12.75GHZ
L.O.:9.75/10.6GHZ
NOISE:0.3DB
GAIN:60DB
Specifications
Item |
Specification |
Item |
Specification |
Input Frequency Range |
Low Band:10.70~11.70GHz |
L.O. Phase Noise |
-50dBc/Hz@1KHz |
Output Frequency Range |
Low Band:950~1950MHz |
Image Rejection |
40dB(Min.) |
Noise Figure |
Low Band:0.6dB(Typ.) |
Output VSWR |
2.0:1(Max.) |
Conversion Gain |
60dB(Typ.) |
Output Power |
0dBm (Min.)(at 1dB gain |
Gain Flatness |
±0.5dB/26MHz |
Connector Type |
75Ω Female Connector |
Cross POL. Isolation |
25dB(Typ.) |
DC Current Consumption |
80mA(Typ.) |
L.O. Frequency |
Low Band:9.75GHz |
Low/High Band Switching |
Low Band:0Hz |
L.O. Frequency Stability |
±1.0MHz (Max.)@+25℃ |
POL. Switching Voltage |
10.5~14.0V @VP |
Operating Temperature |
-30℃~+70℃ |
|
|
-30℃~+70℃ |
