SPECIFICATIONS

Assembly Required: Yes

Brand Name: RUNHENGXIN

Control Method: Others

Controls Type: Others

High-concerned chemical: none

Model Number: 15 to 24 inch universal LCD LED lights change LCD LED

Number of Pieces: 5

Origin: Mainland China

Output Current: 3

Portable: No

FOR 24 Inch FOR Adjustable Light LED Backlight Kit 540mm, Work FOR 15'17'19'22'22 Inch 24', Upgrade LCD Screen to LED Monitor

Features:

*540mmbacklight strip kit for updating 24” LED CCFL LCD screen to LED monitor

*Adjustable light brightness, if the second yellow wire (adjusting brightness) is not connected, the max brightness of light will show out

*Perfect design for screen and high brightness

*Environment friendly and energy saving

*LED particles closely, high-density arrangement, import highlight LED strips

*Long service life up to100000 hours

*Easy to install, can be attached to the display original LCD groove or elsewhere with the help of double-sided adhesive

*Red wire for positive pole, black wire for negative pole, the first yellow wire for ON/OFF, and the second yellow wire for adjusting brightness

Specifications:

*Material: Fiberglass Panels

*Input: DC 10-30V

*Power: 8w

*Driver Board Dimension: 7*2cm/2.8*0.8 inches (Approx.)

*LED Strip Dimension: 540*4*2mm/21.3*0.2*0.1 inches (Approx.)

*Weight: 50g (Approx.)

Cables Function:

*VIN/VCC (Red Cable for Positive Pole): Voltage (10~30V)

*ENA (the first Yellow Cable): On(2.5~5V)/Off(0~2.5V)

*DIM/ADJ (the second Yellow Cable): Adjusting Brightness (0~5V)

*GND (Black Cable for Negative Pole): Connecting Ground

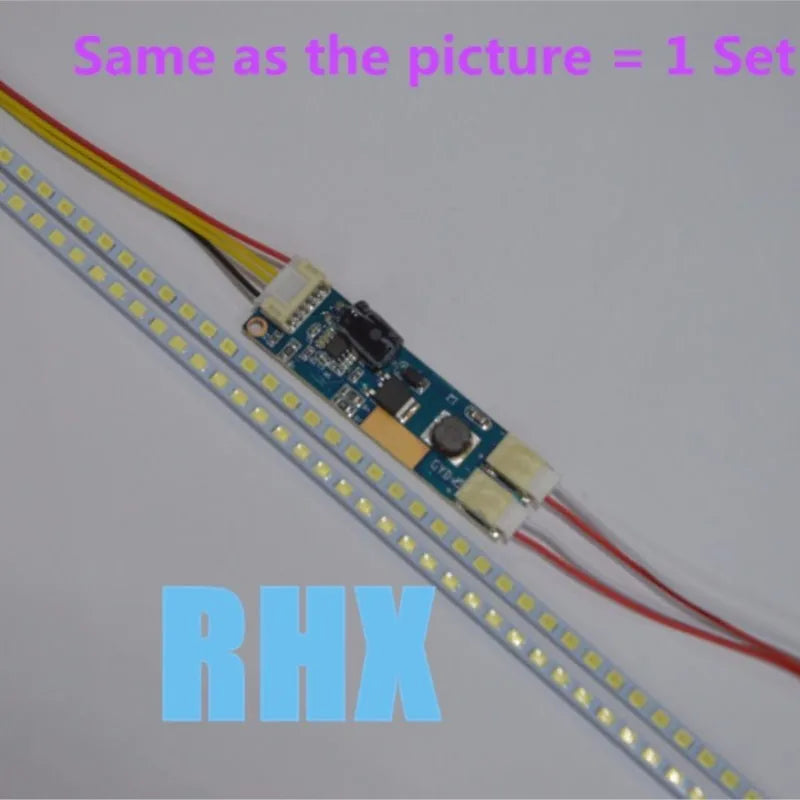

Package Contents:

2*LED Strips

1*Driver Board

1*Cable

Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
