SPECIFICATIONS

Analog I/O: 6-in/8-out or 4-in/8-out (by configuration)

Application: Active speaker / 3-way crossover / EQ / DIY audio

Audio Interface: I2S / SPI

Brand Name: NoEnName_Null

Bundle: Bundle 1

CODEC chip: CS42448/AD1938

Certification: NONE

Compatible Audio & Video Equipment Style: Digital-to-Analog Converter (DAC),Professional Audio Equipment,Stage Equipment,player

DSP Chip: ADAU1452 SigmaDSP, 294 MHz / 32-bit

Dimensions (WxHxD)): 72mm*73mm*28mm

High-concerned chemical: Tris(2-chloroethyl) phosphate

Model Number: ADAU1452 SigmaDSP DSP Board

Origin: Mainland China

Package: Yes

Power supply voltage: 5V

Pre-flashed: Yes works out of the box

Programming: SigmaStudio free software

SNR: 108 dB Hi-Res Codec (codec boards)

Sampling Rate: 48 To 192 kHz

Weight: 144G

PRODUCT HIGHLIGHTS

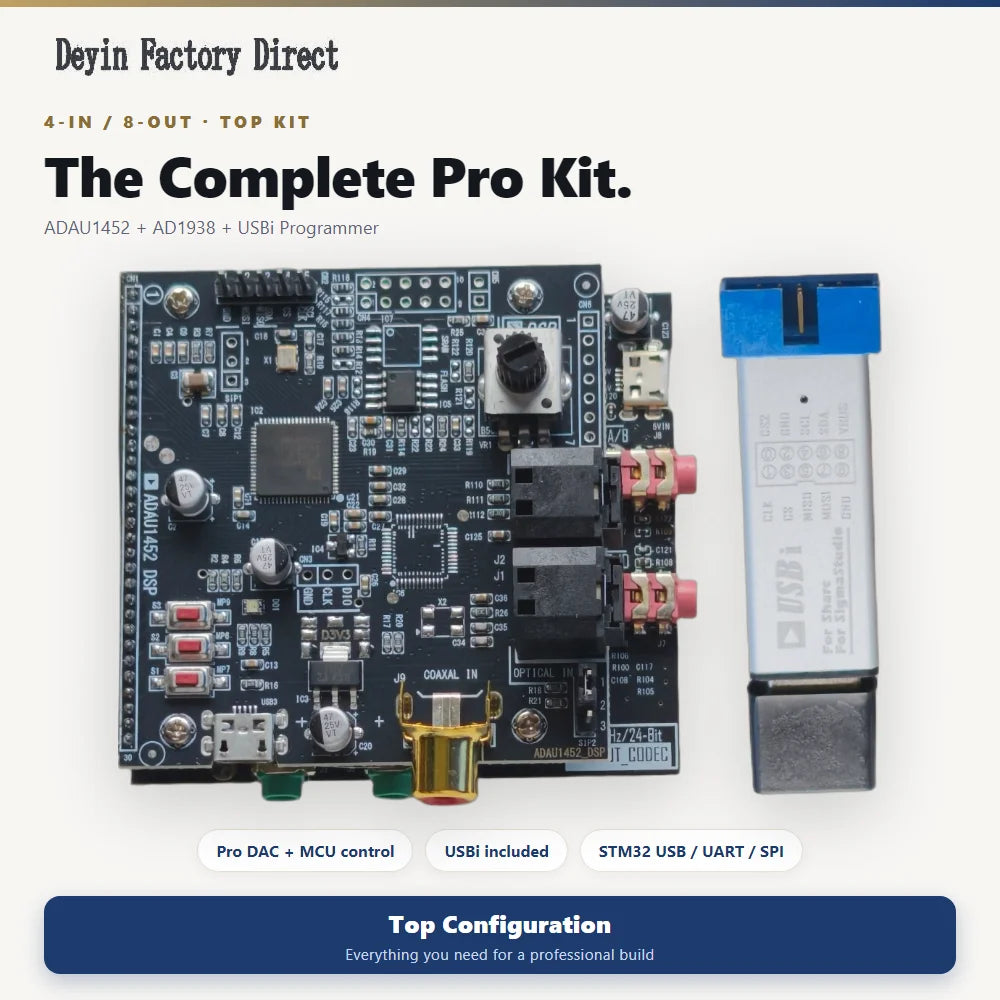

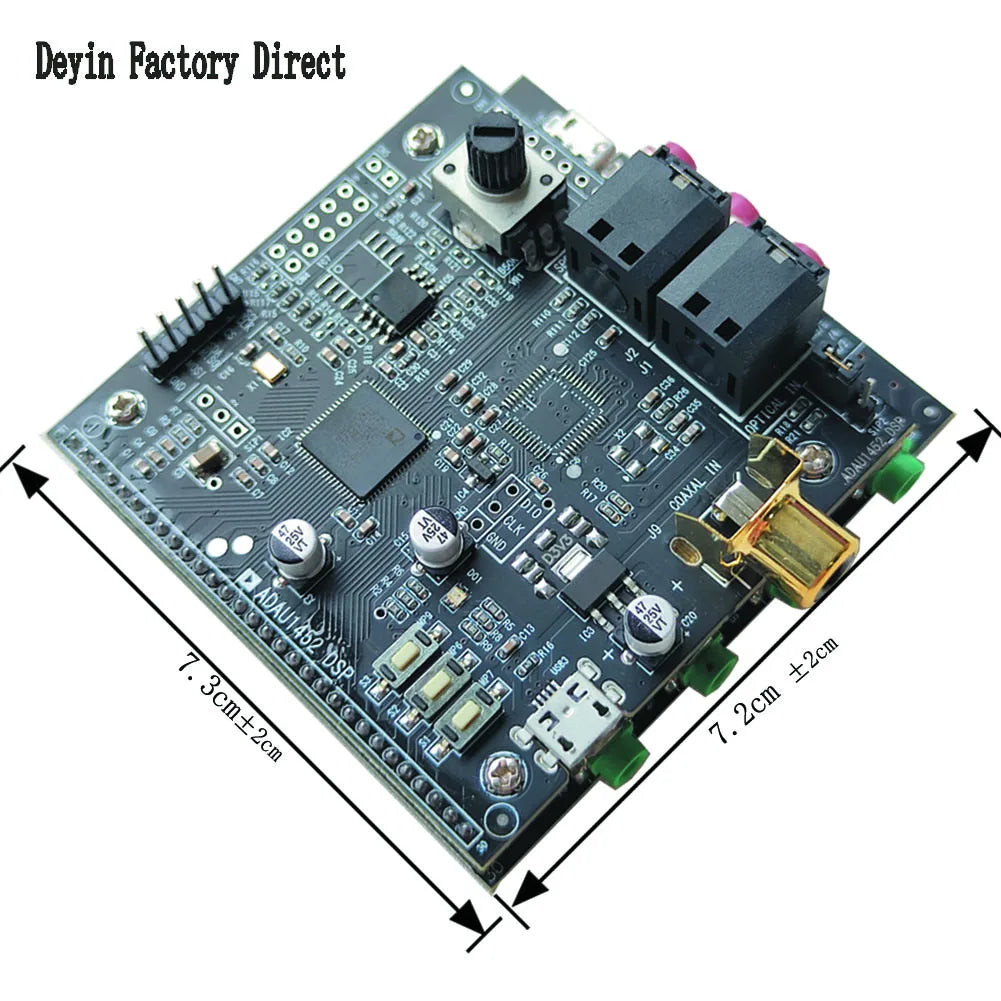

Factory-direct ADAU1452 SigmaDSP board - 294.9 MHz / 32-bit core,

6144 SIMD instructions per sample.

Hi-res audio path 48-192 kHz / 24-bit, works with CS42448 (6-in/8-out) or

AD1938 (4-in/8-out) - 108 dB SNR.

Full digital I/O: Toslink optical in + out, gold-RCA coaxial in, SPDIF out,

2 x 3.5 mm analog in.

Program on a Windows PC with free SigmaStudio, then run untethered -

S1/S2/S3 buttons + volume knob control input,

10 EQ presets and subwoofer.

Free SigmaStudio software, drag-and-drop crossover / PEQ / delay /

limiter. No coding required.

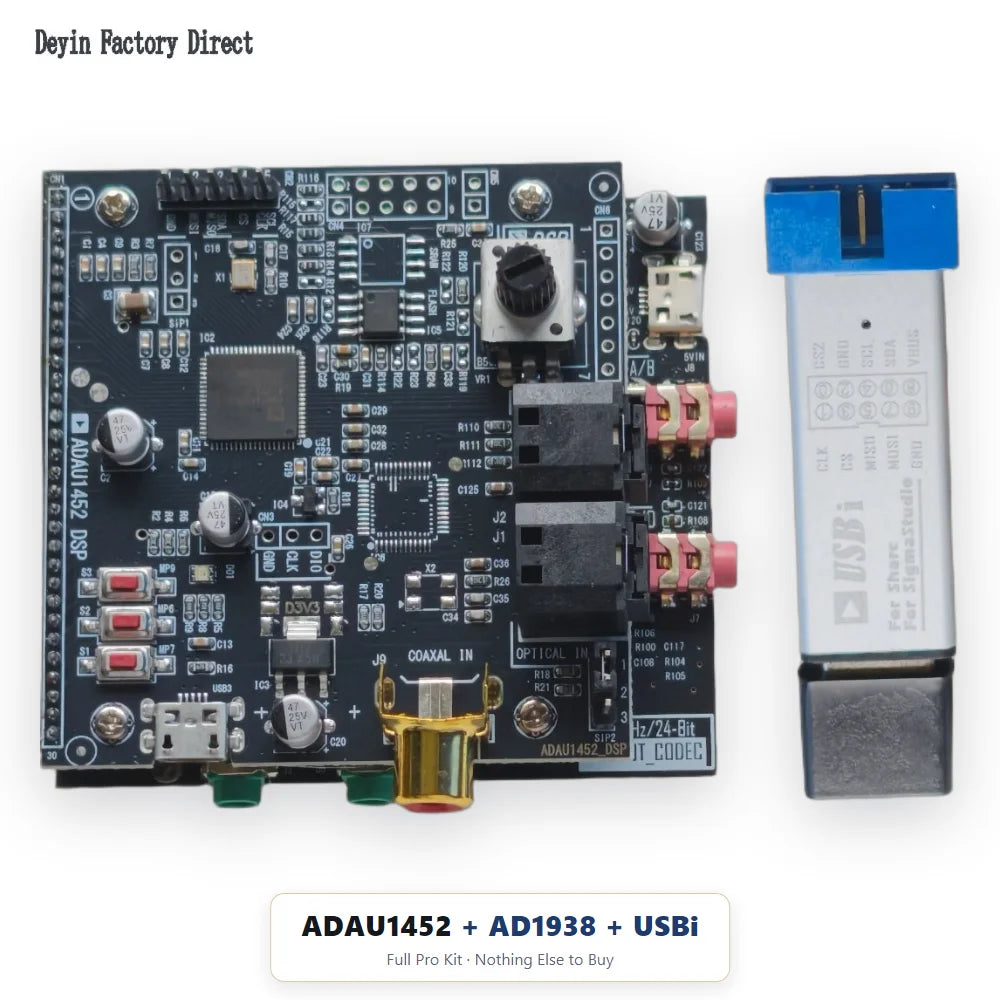

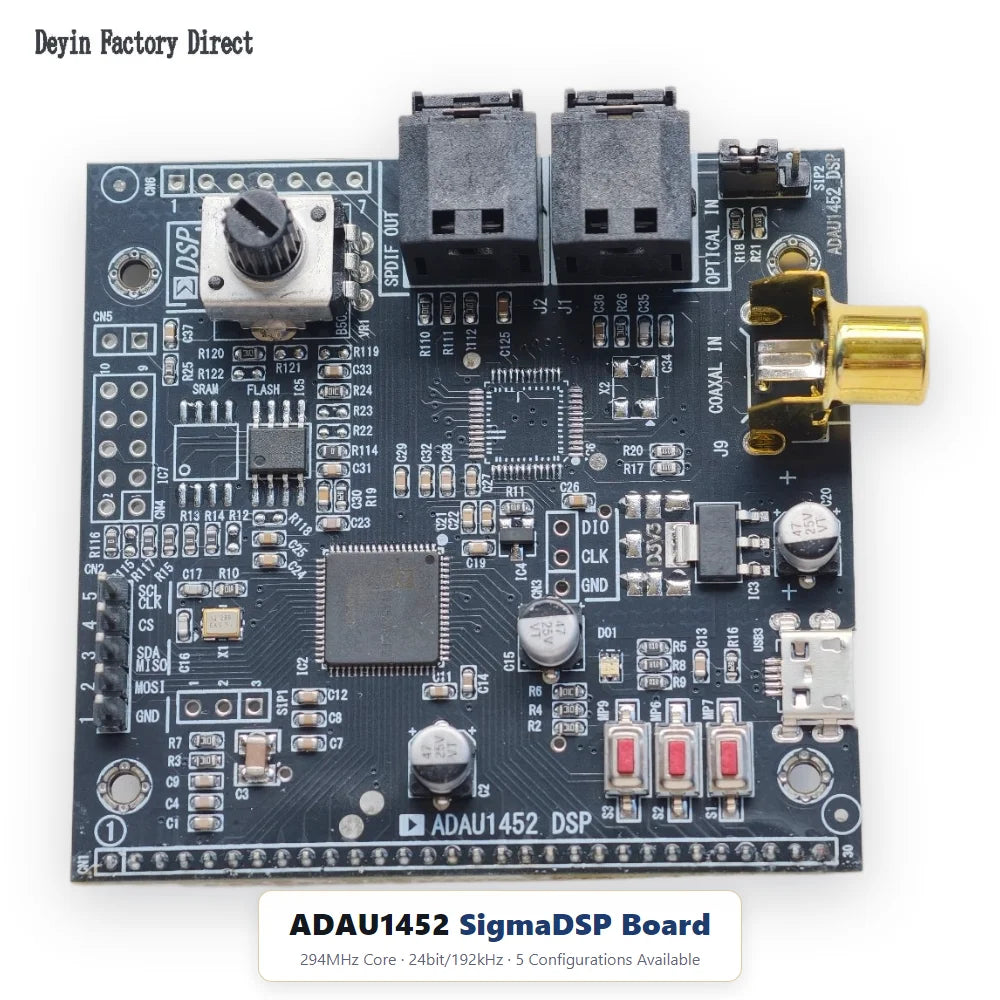

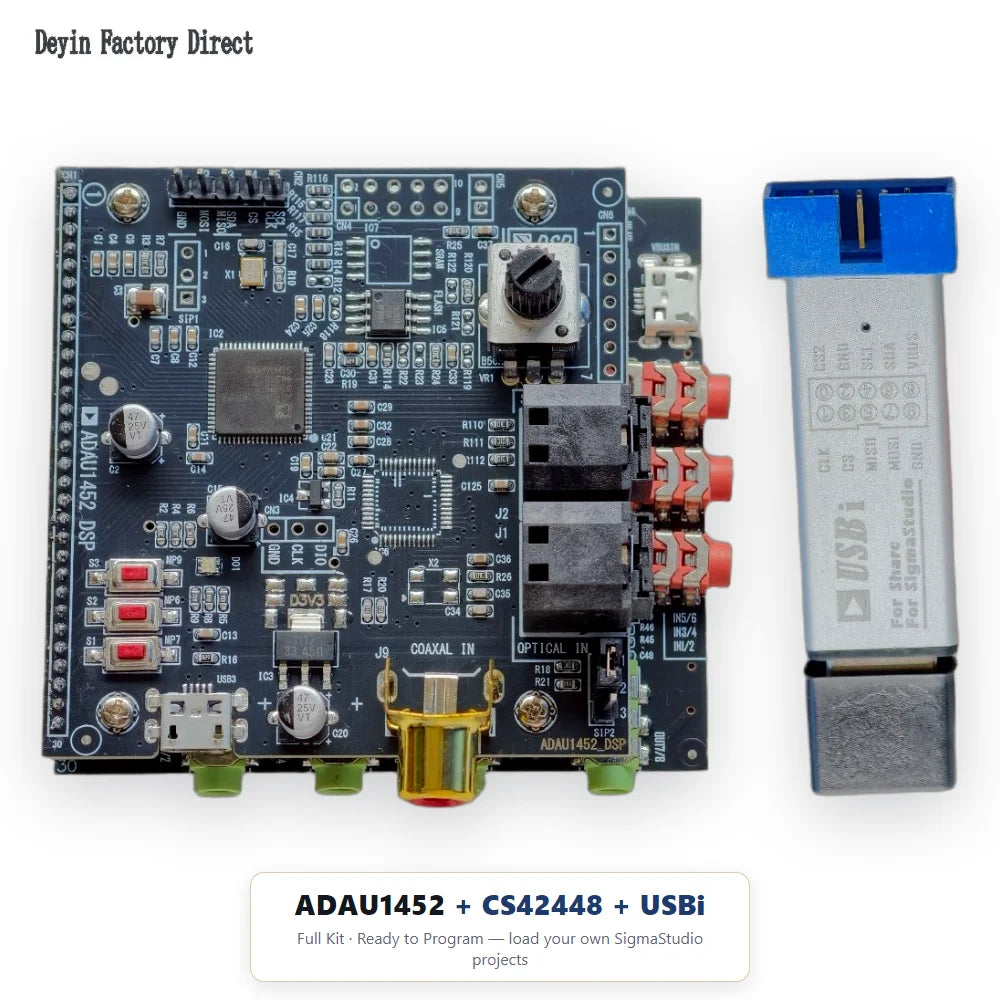

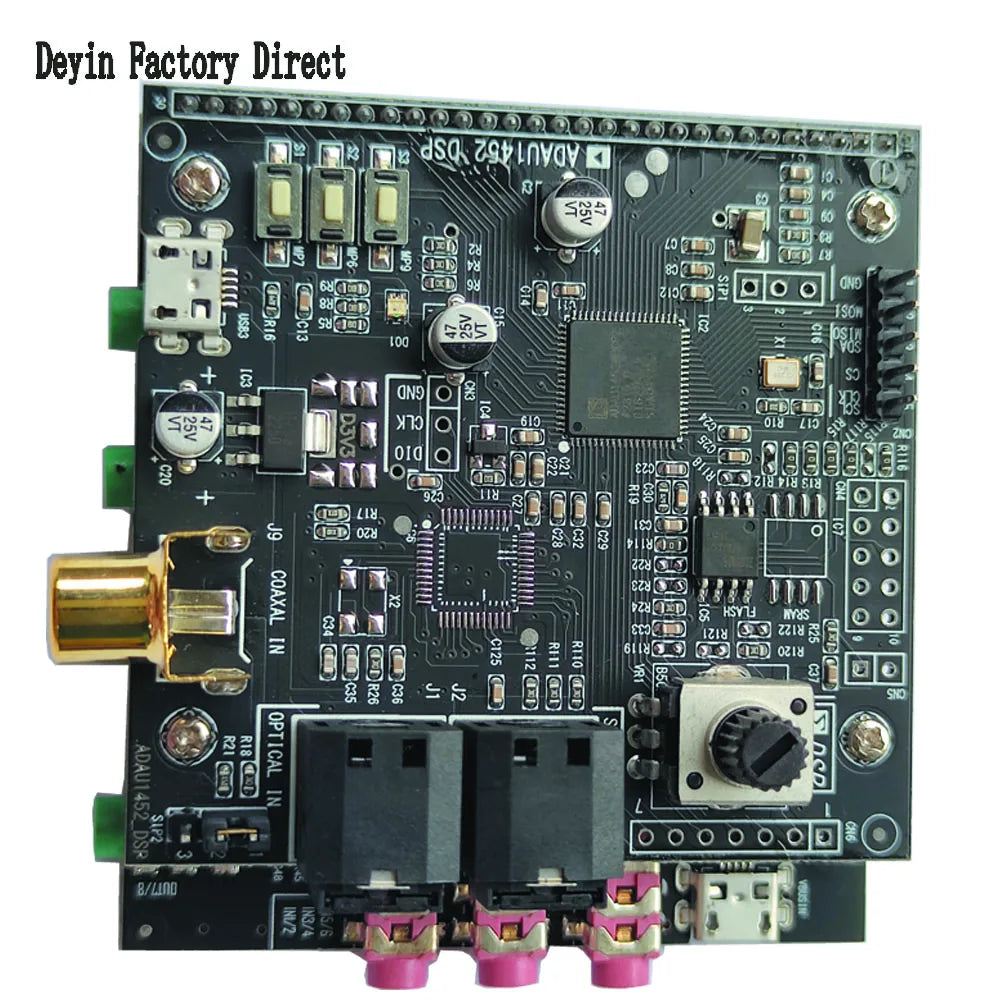

1452 DSP

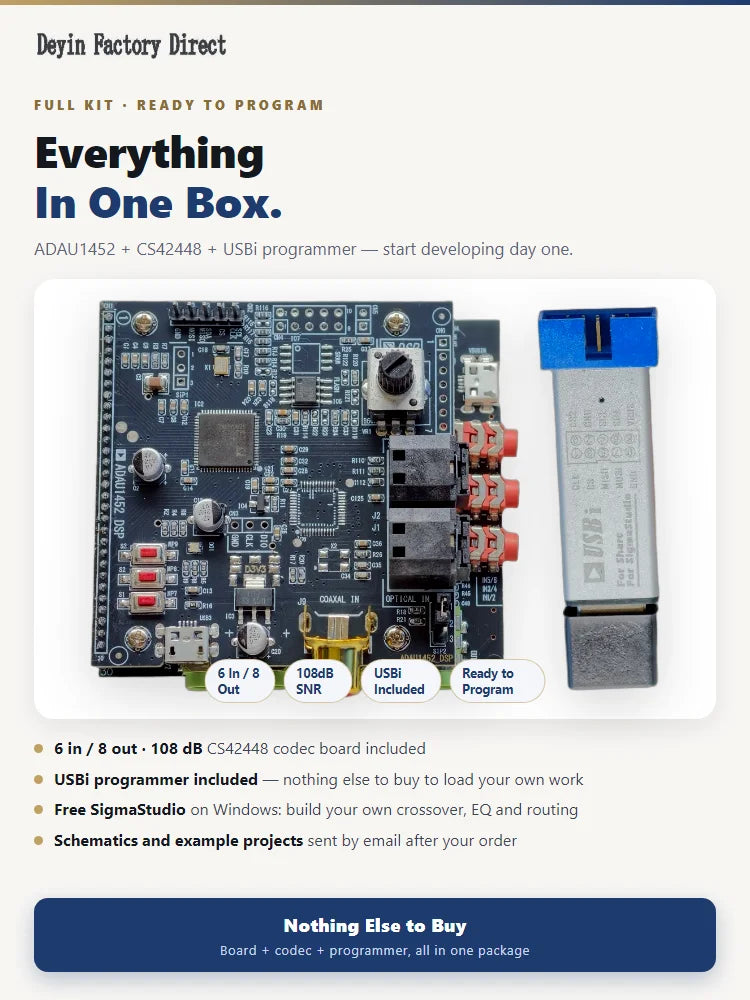

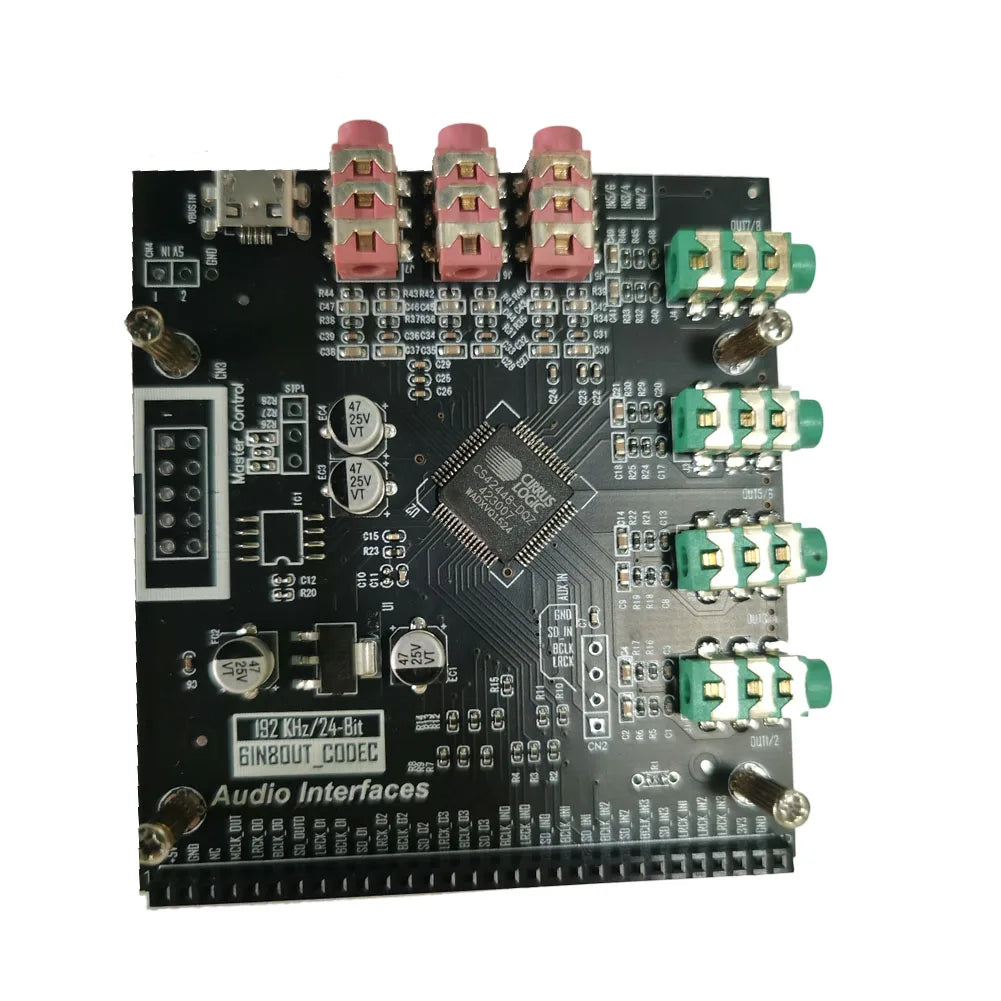

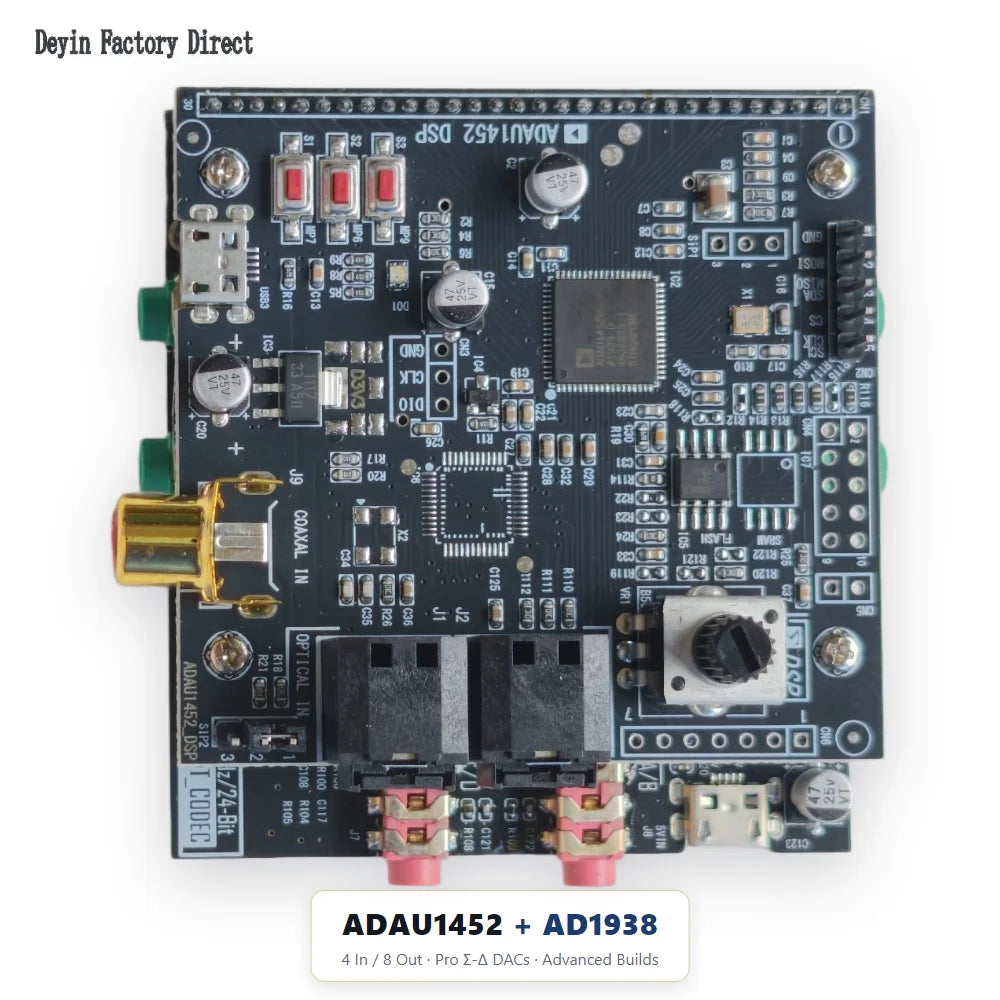

AD1938  schematic diagram

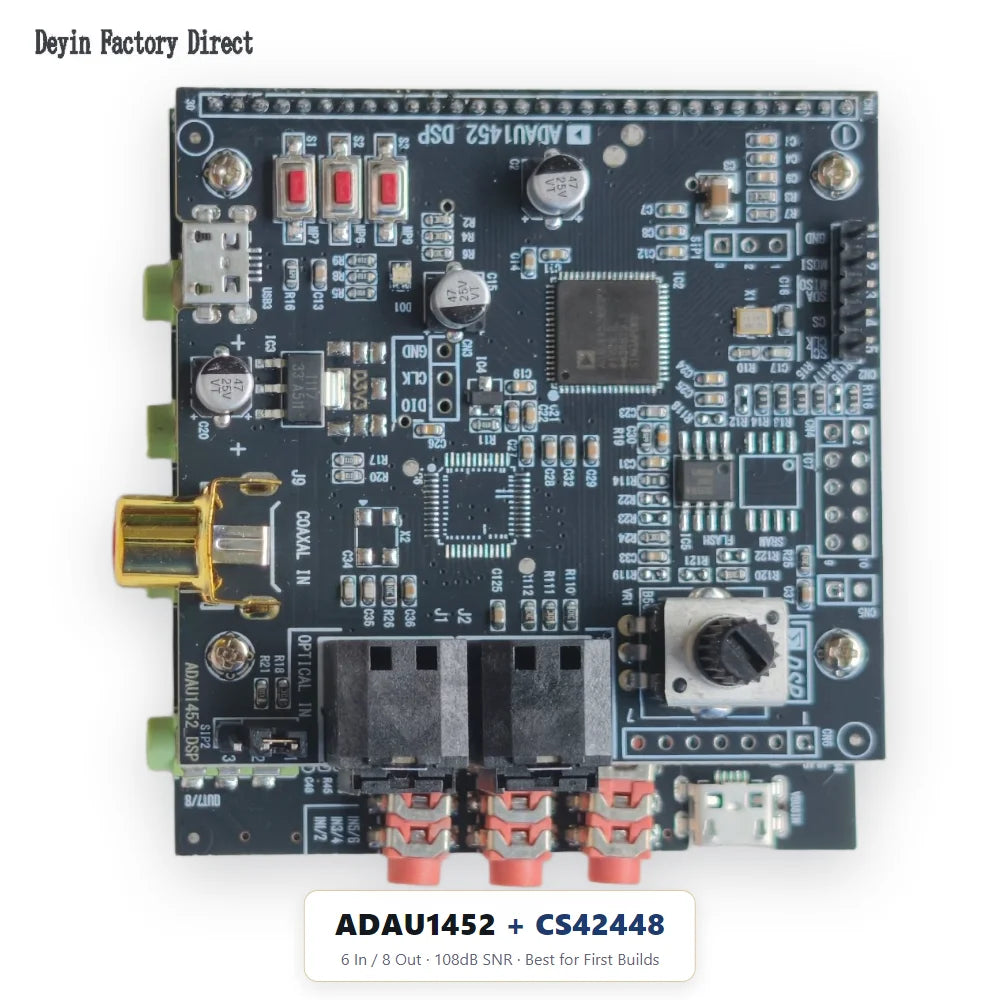

CS42448 schematic diagram
