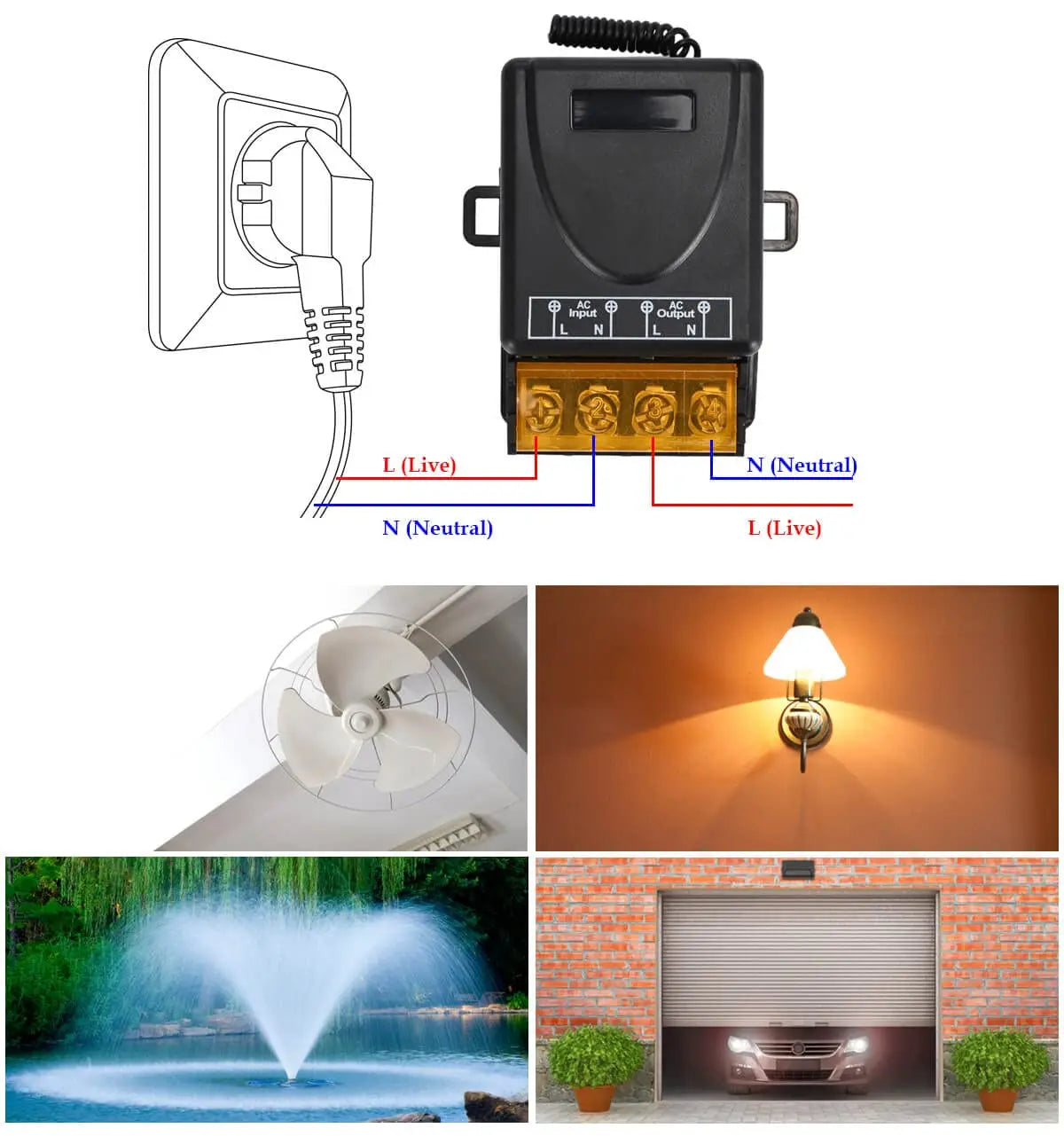

Operating voltage: AC 110V - 240V

Output voltage = Operating voltage

Operating frequency: 433MHz(Same with Remote control)

Encoding Type: learning code

Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

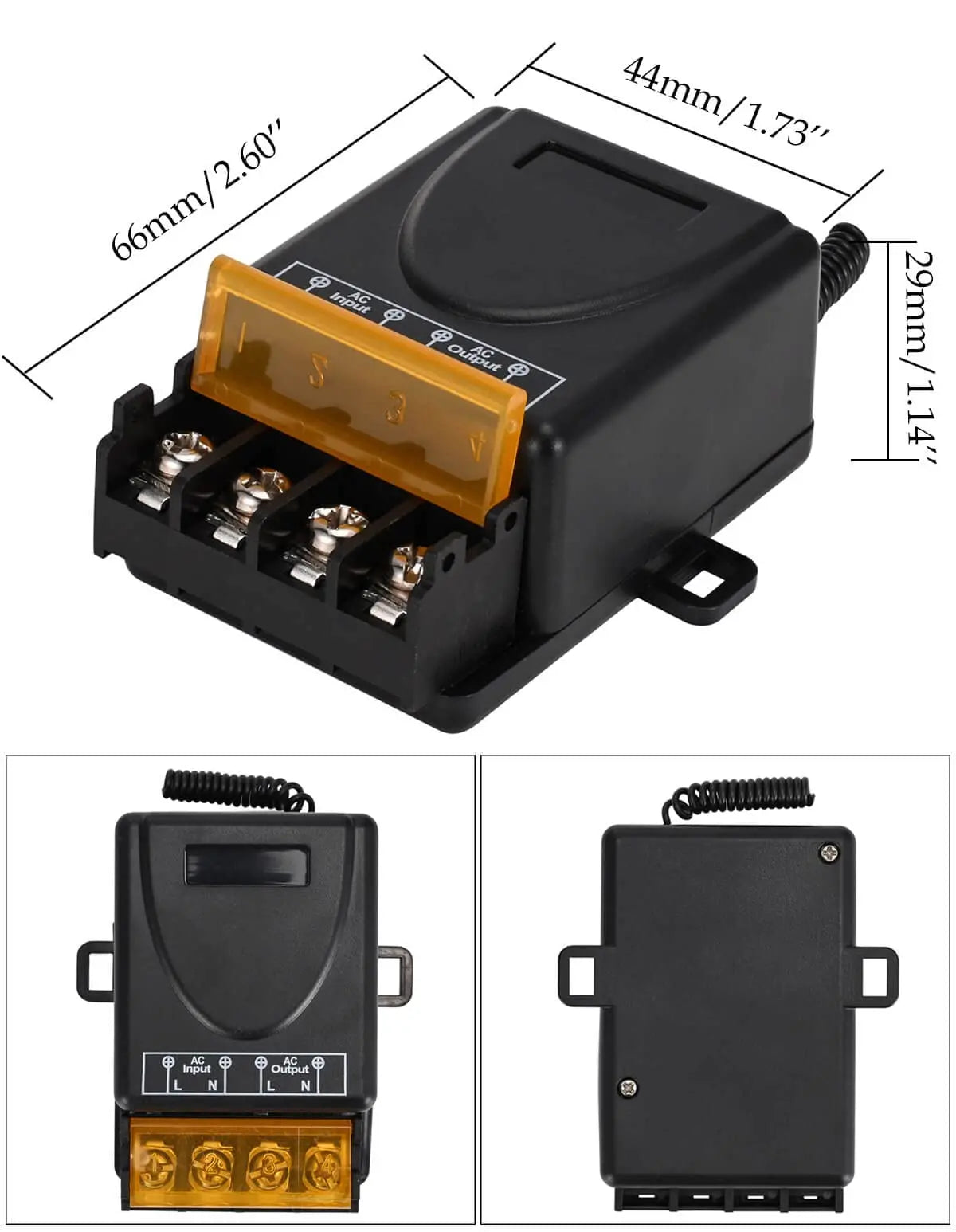

Box size: Approx 65x45x28m

About Working way:

Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.

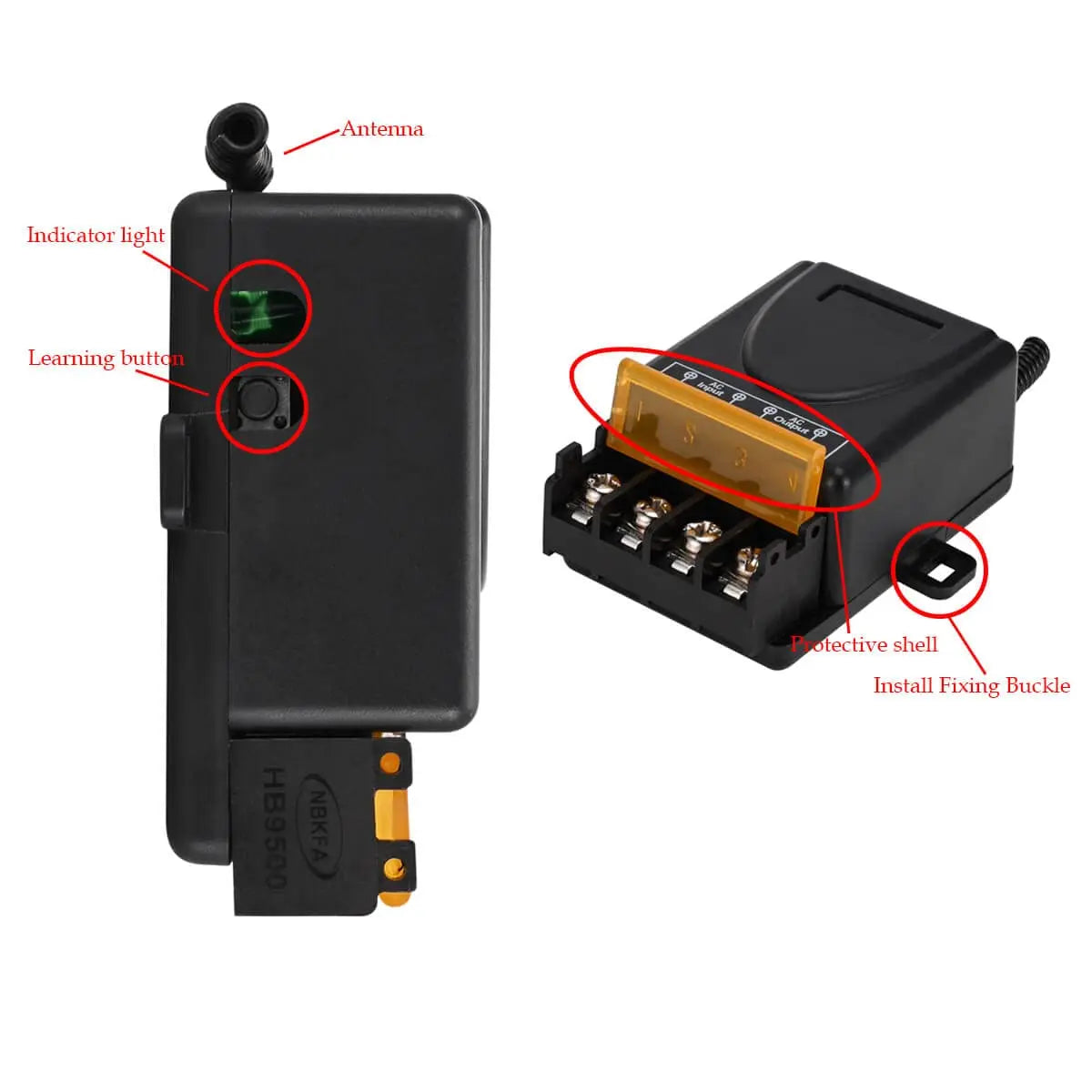

About Learning and clearing Method:

Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.

Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
