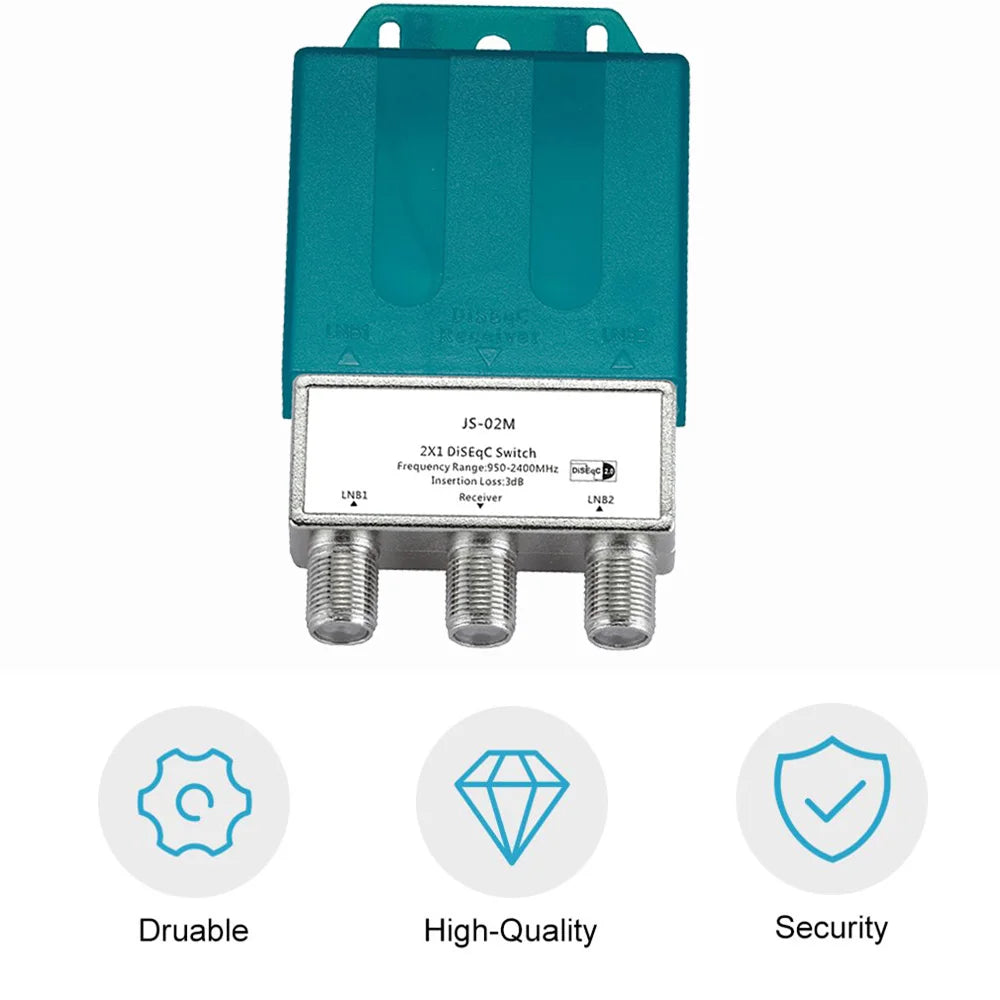

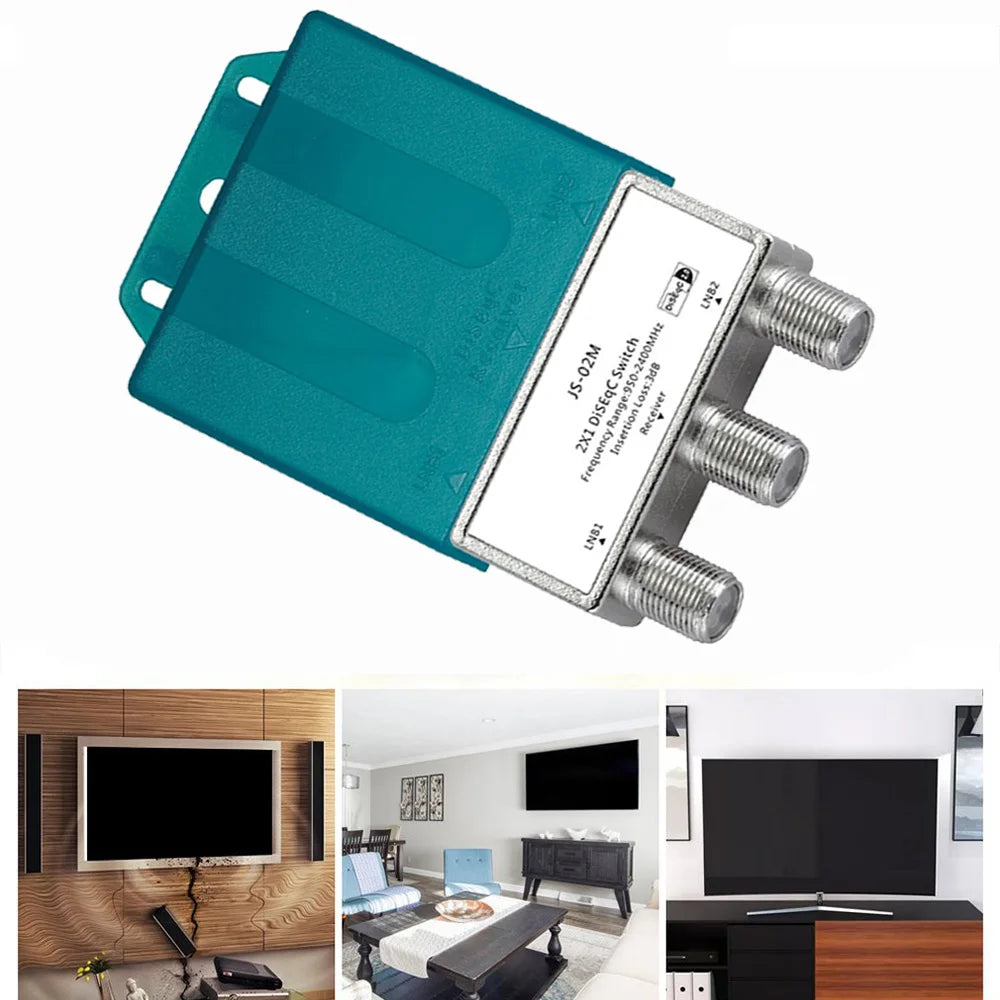

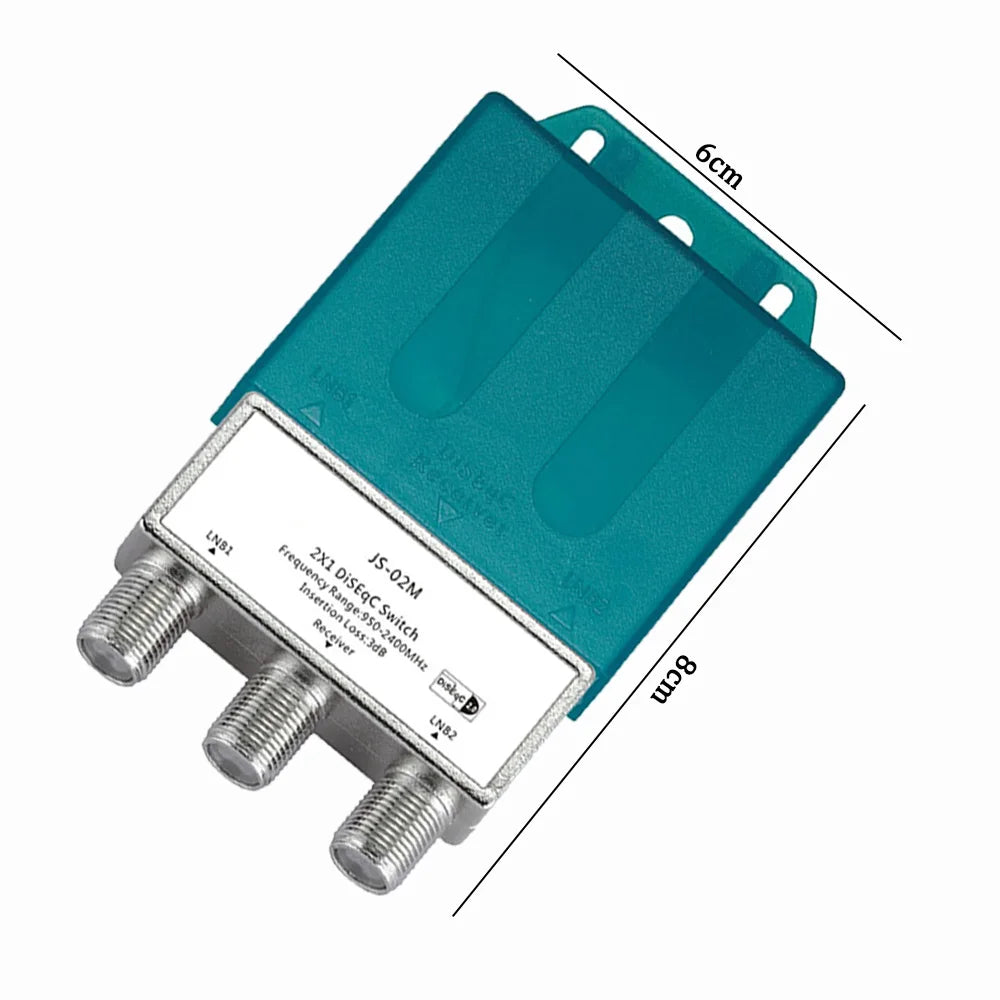

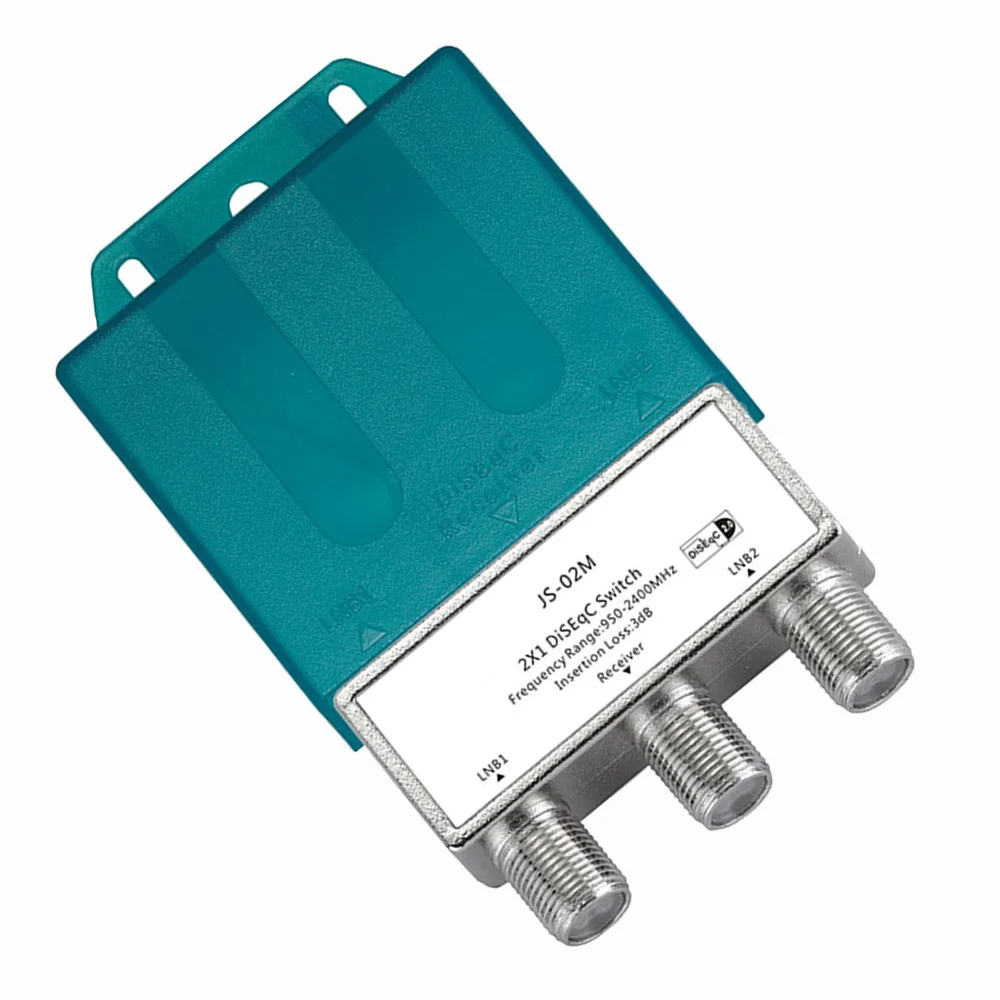

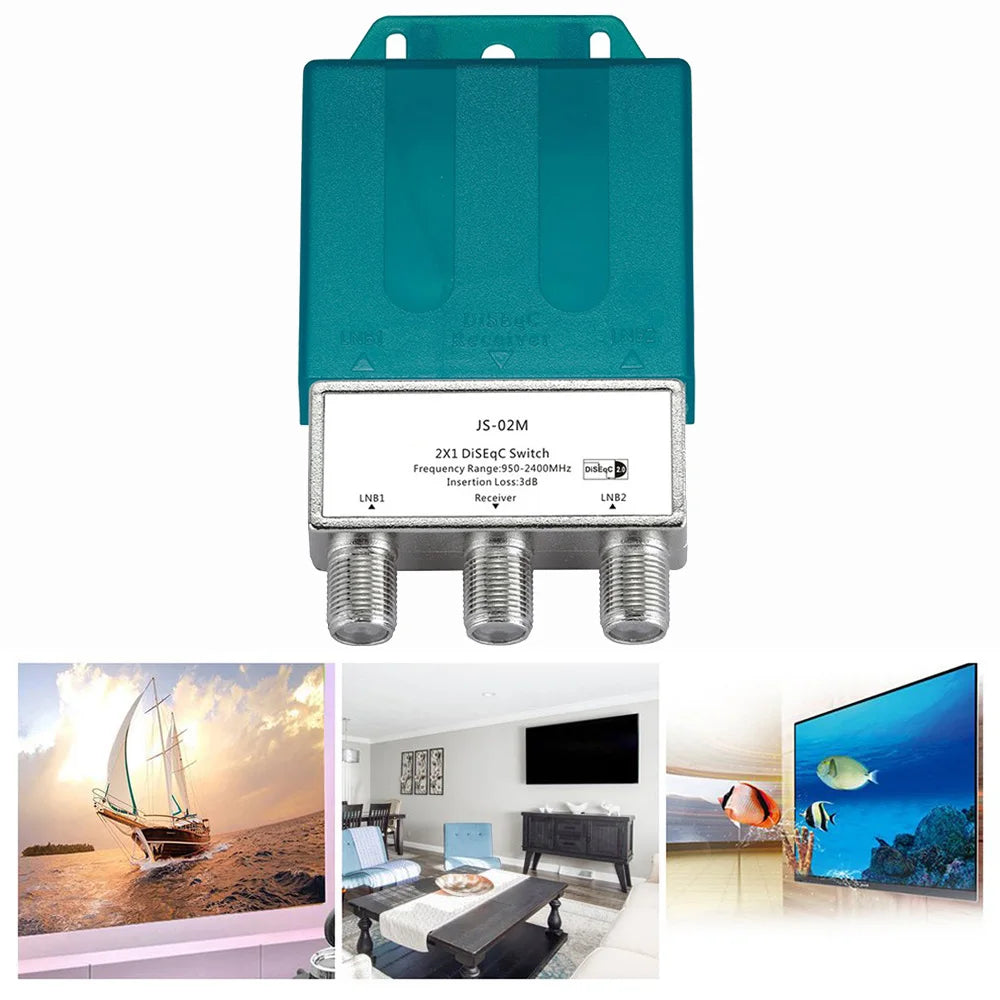

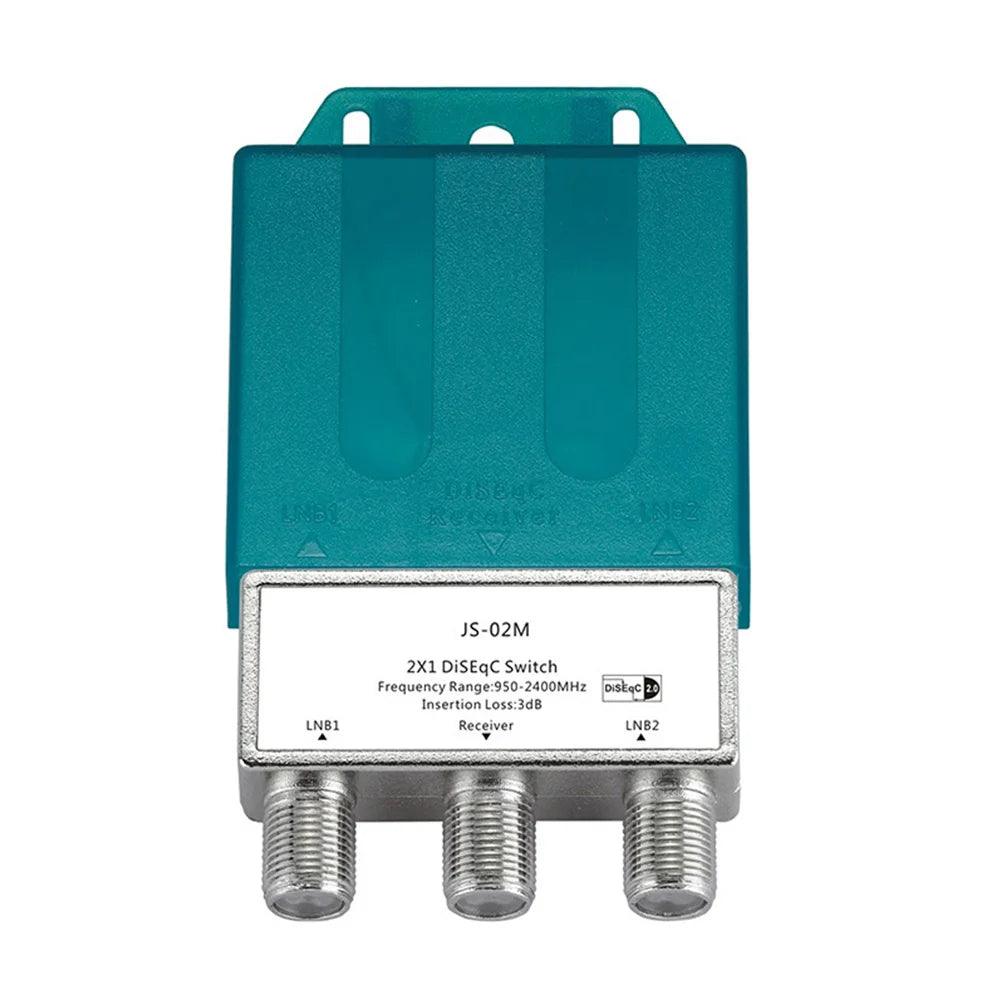

TV Waterproof DS-04M Satellite 950-2400MH 2x1 DiSEqC Switch Antenna FTA Dish Flat LNB Multiswitch For Satellite TV Receiver
Free Shipping on Orders of $100 or More
SPECIFICATIONS
Brand Name: OEING
Choice: yes
Form-factor: Others
High-concerned chemical: none
Origin: Mainland China
semi_Choice: yes


Features:
1、 Zinc die-cast housing, nickel-plated
2、 Excellent quality component, professional circuit design and low loss
3、 Excellent quality chip, professional program design and compatible with more types of satellite receiver
4、 Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
5、 DiSEqC 2.0, supports bi-directional DiSEqC full control functions
6、 Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
7、Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
8、Support DiSEqC “standby” command
Specifications
Item |
Specification |
Item |
Specification |
Frequency Range |
950-2400(MHz) |
Normal Working Voltage |
12-20(V) |
Insertion Loss |
3(dB) |
DC Power Consumption |
10(mA) |
Isolation |
20(dB) |
DC Max Power Passing |
500(mA) |
Return Loss |
8(dB) |
Impedance(all ports) |
75(Ω) |
Switching Signal : DiSEqC 1.0、2.0Connectors:“F”type female
