SucceBuy Dividing Head 5Inch 3 Jaw Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set

$585.88 $1,171.75

Shipping calculated at checkout.

Free Shipping on Orders of $100 or More

SPECIFICATIONS

Brand Name: succebuy

Center Height: 3-15/16" (10 cm)

Certification: CE

Headstock Dimensions: 9.5" x 7.5" x 4.92" ( 24 x 19 x 12.5 cm)

Headstock Taper: MT2

High-concerned chemical: None

Net Weight: 50.7 lbs (23 kg)

Number of Jaws: 3

Origin: Mainland China

Power: Manual

Power Source: Manual

Swing: 4.92" (12.5 cm)

Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

Product Description

BS-0 Precision Dividing Head

MT2 Headstock Taper & Complete Set & Simple Operation

The indexing head doesn't only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.

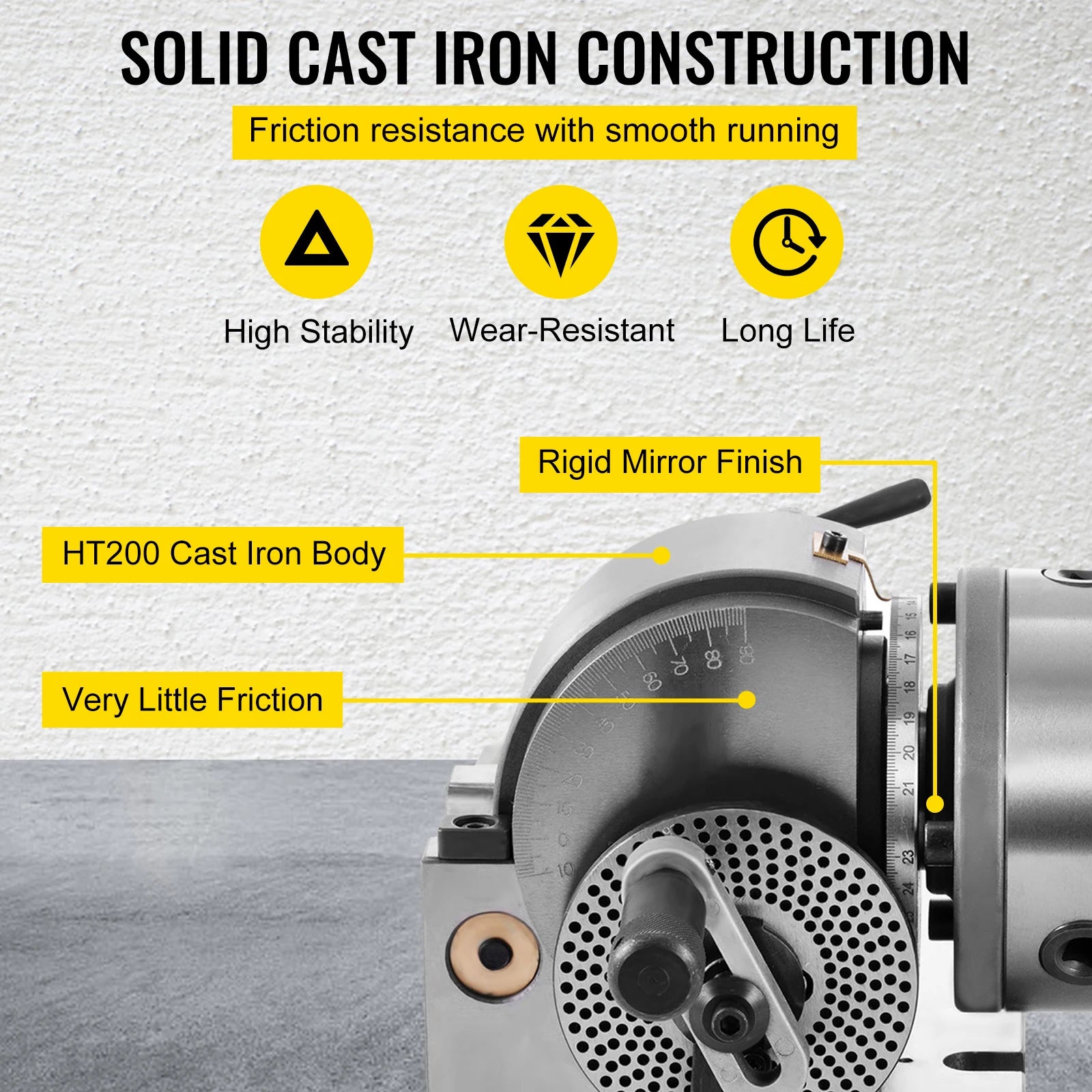

Solid Cast Iron Construction
Adjustable Dividing Head

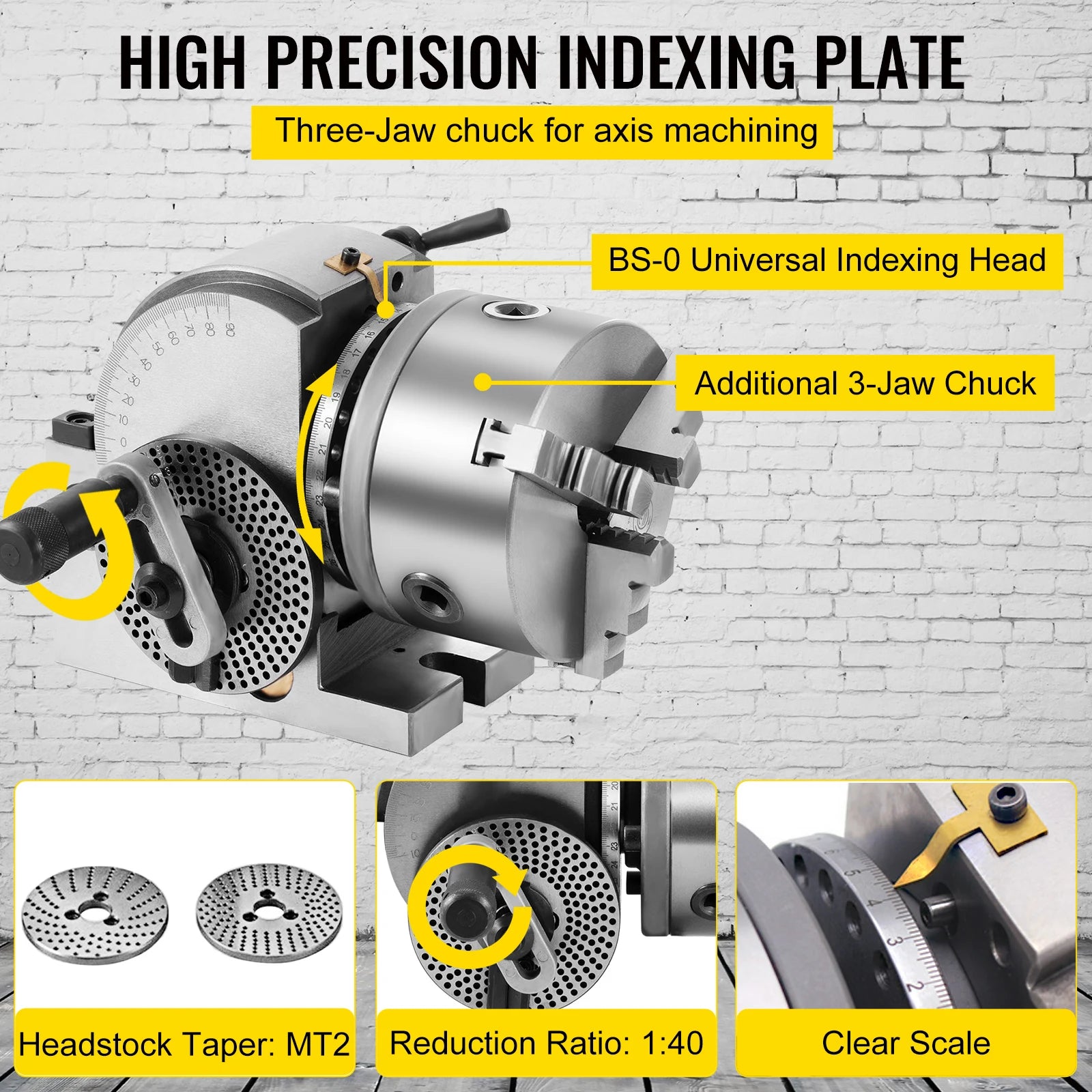

High Precision Indexing Plate

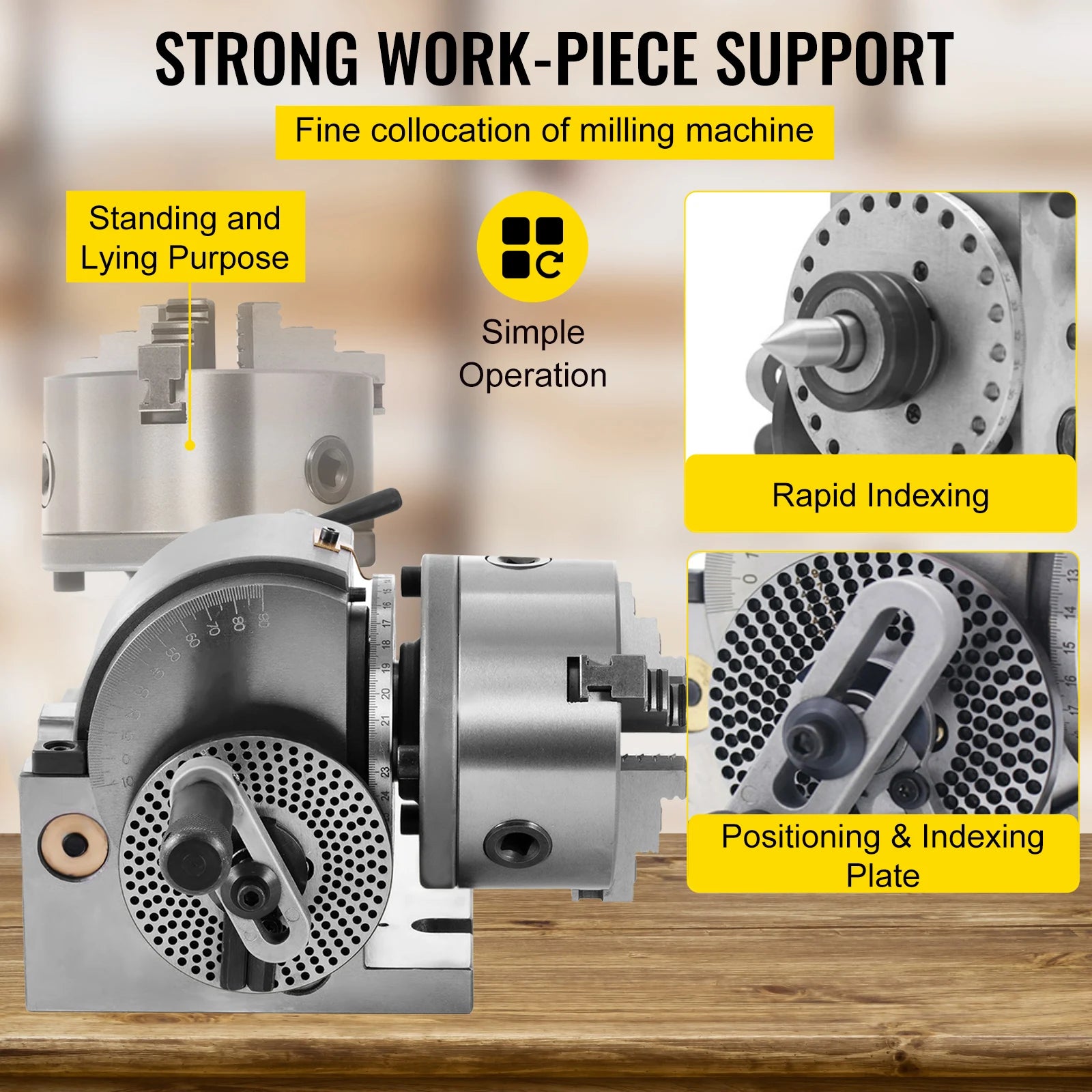

Strong Workpiece Support

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose SucceBuy?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

Rigid & Sturdy Body

The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.

Adjustable Headstock

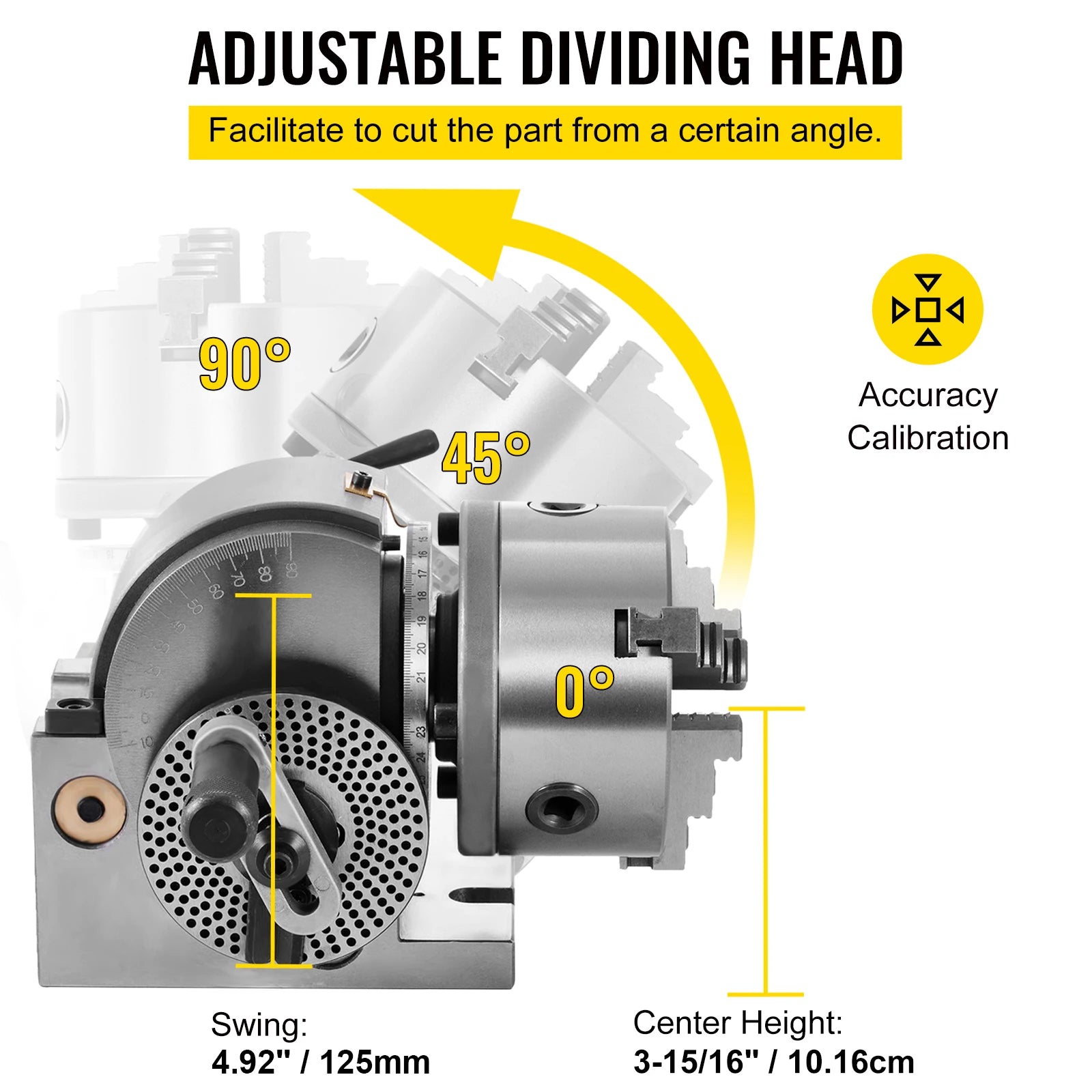

The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.

Direct Indexing Plate

By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.

More Precise Plates

The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.

Strong MT2 Tailstock

The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.

Wide Application

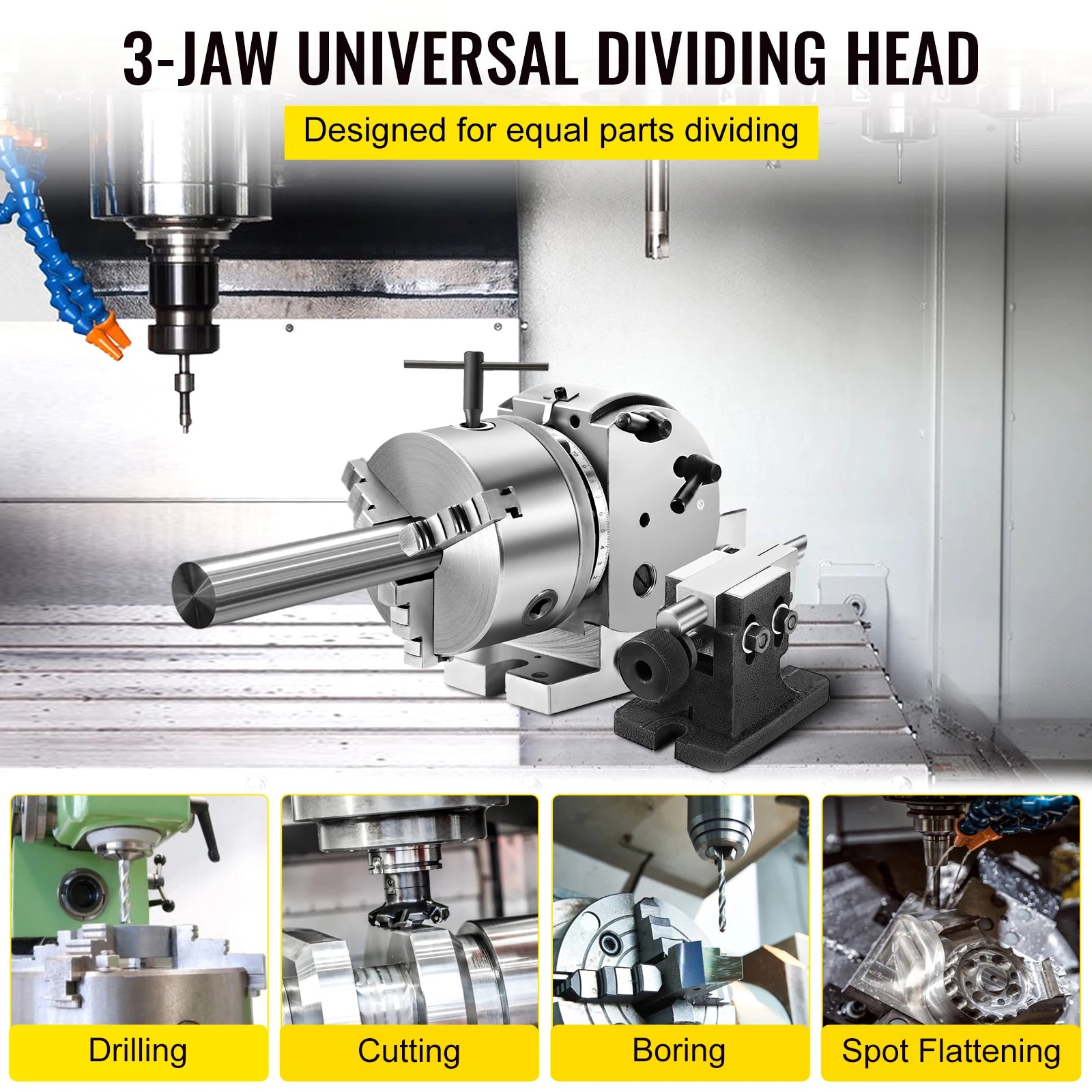

The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.

Specifications

Swing:4.92" (125 mm)
Center Height: 3-15/16" (10 cm)
Headstock Taper: MT2
Net Weight: 50.7 lbs (23 kg)
Headstock Dimensions: 9.5" x 7.5" x 4.92" ( 24 x 19 x 12.5 cm)
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

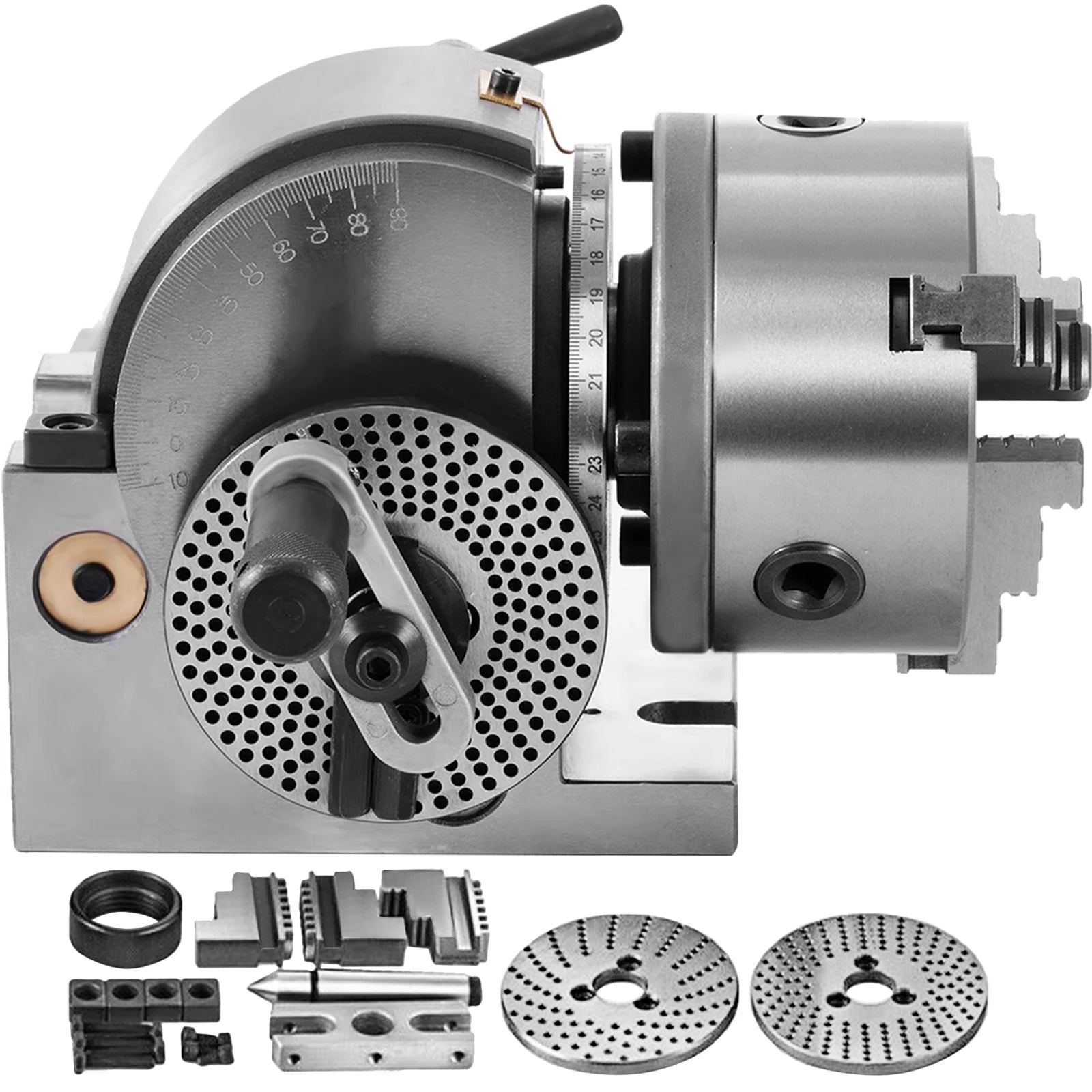

Package Content

1 x Dividing Head
3 x Dividing Plates
1 x Tailstock
1 x 125 mm 3-Jaw Chuck

Features & Details

Solid Cast Iron Construction: Swing: 4.92"/125 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.
