SPECIFICATIONS

Antenna: External IPEX

Baud rate: 115200bps

Brand Name: Hi-Link

Camera Equipped: No

Certification: CE,FCC,RoHS

Communication method: Wi-fi

Compatibility: All Compatible

Flash: 32M or 8M

High-concerned chemical: none

LAN/WAN: 4/1

Main chipset: MT7628NN

Model Number: HLK-7628N/HLK-7628NE

Origin: Mainland China

RAM: 128M or 64M

Specification: EU Plug

State of Assembly: Almost Ready,Almost Ready

TCP/UDP: 20~30

Transmission rate: 300Mbps

Transmit power: 15-20dBm

Wireless Function: Yes

Wireless protocol: IEEE802.11bgn

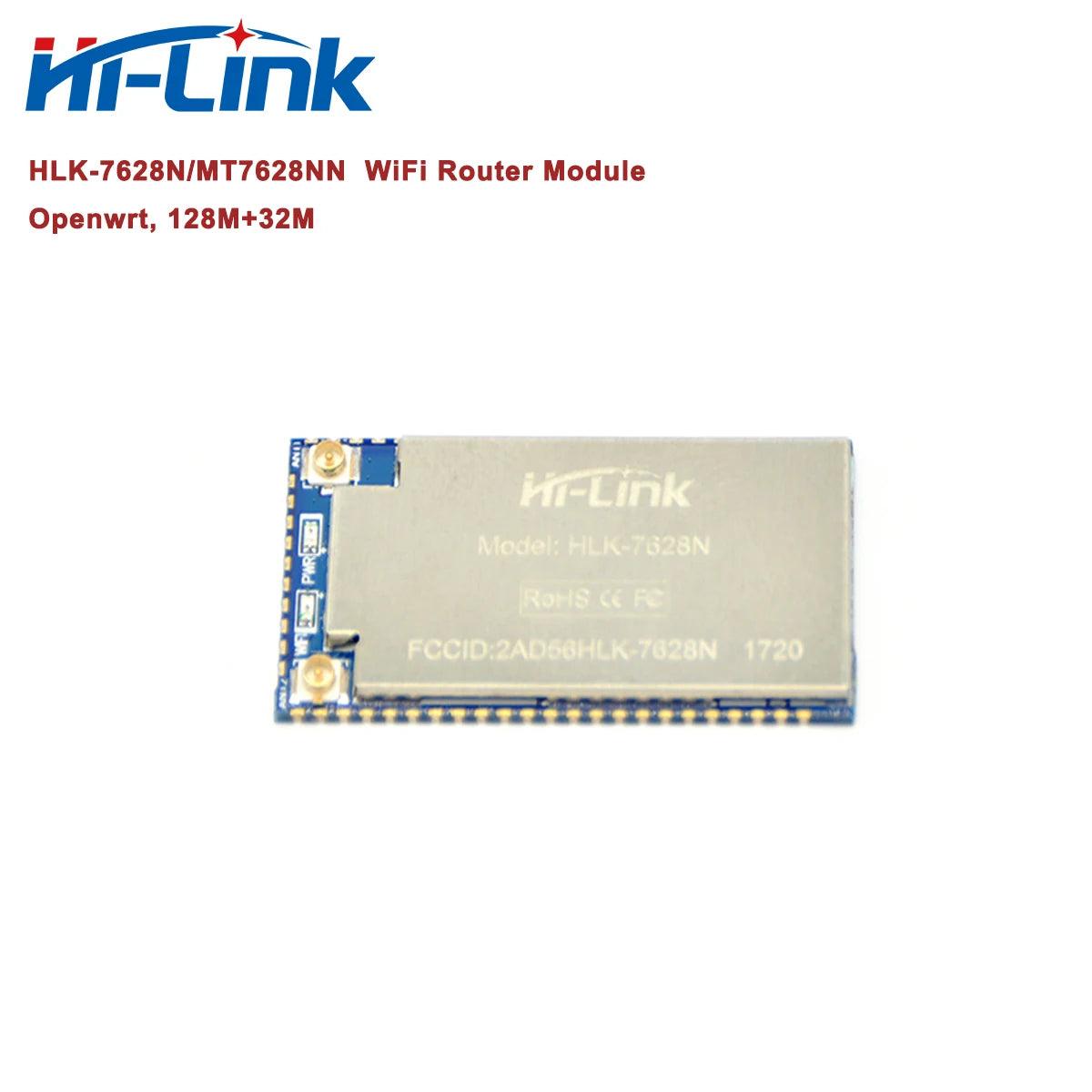

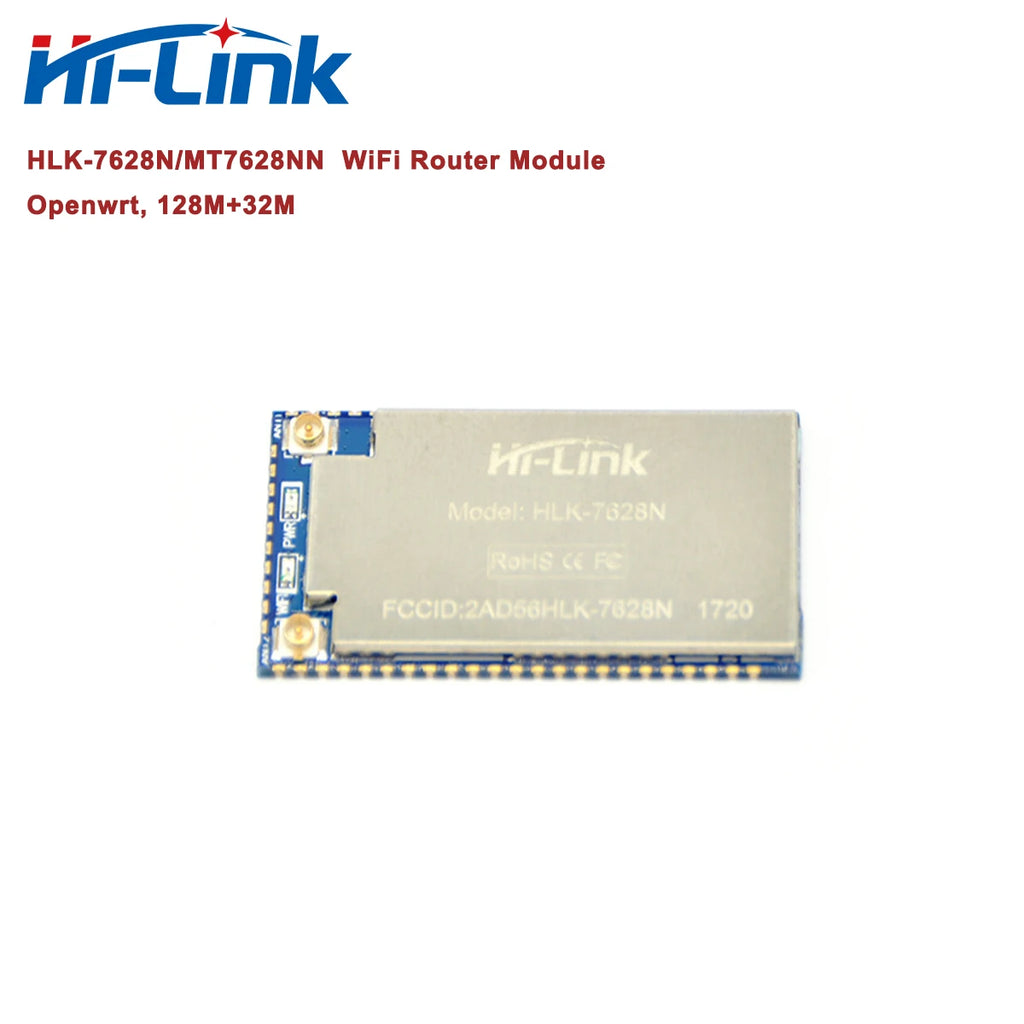

Original HLK-7628N WiFi Wireless Router Module Openwrt with128M/32M (Sample)

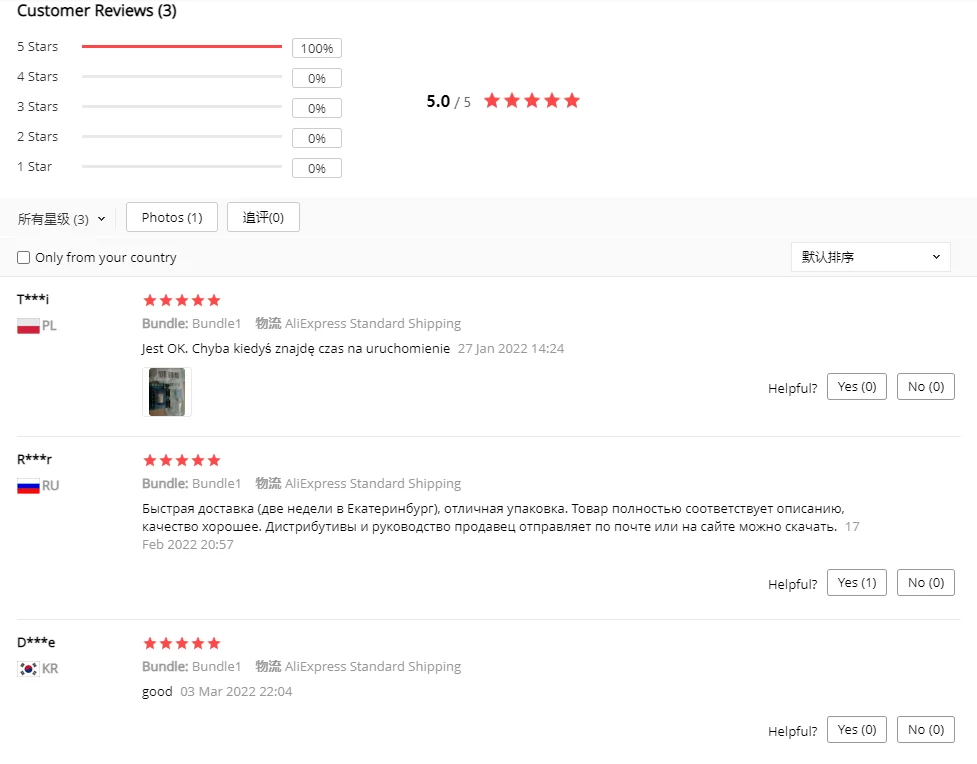

Customer Feedeback

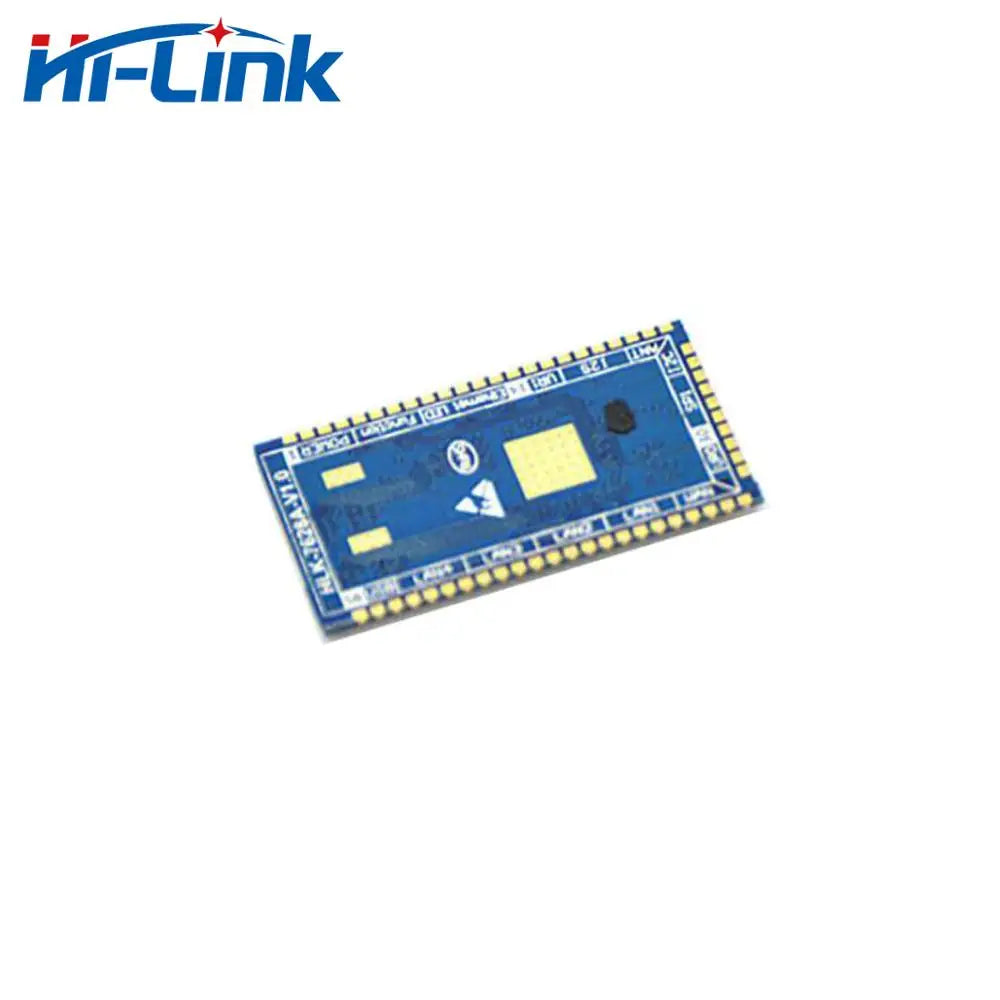

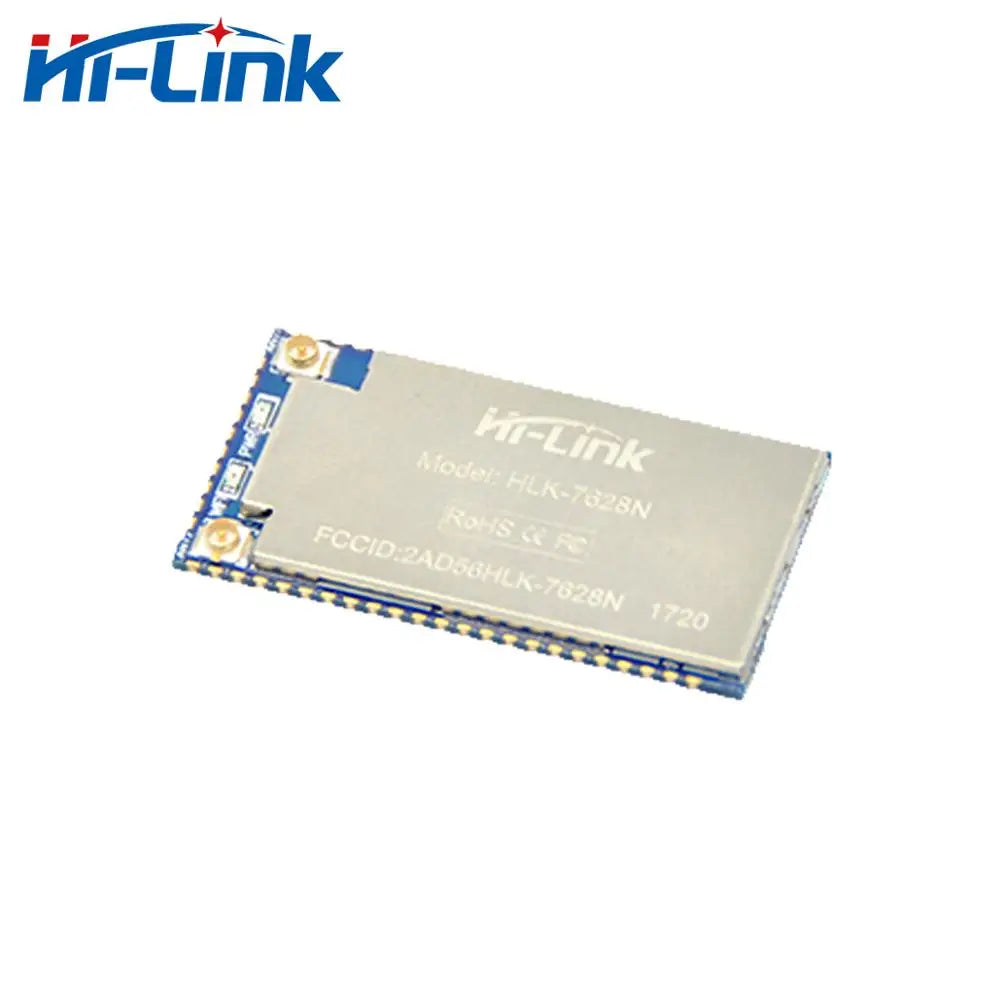

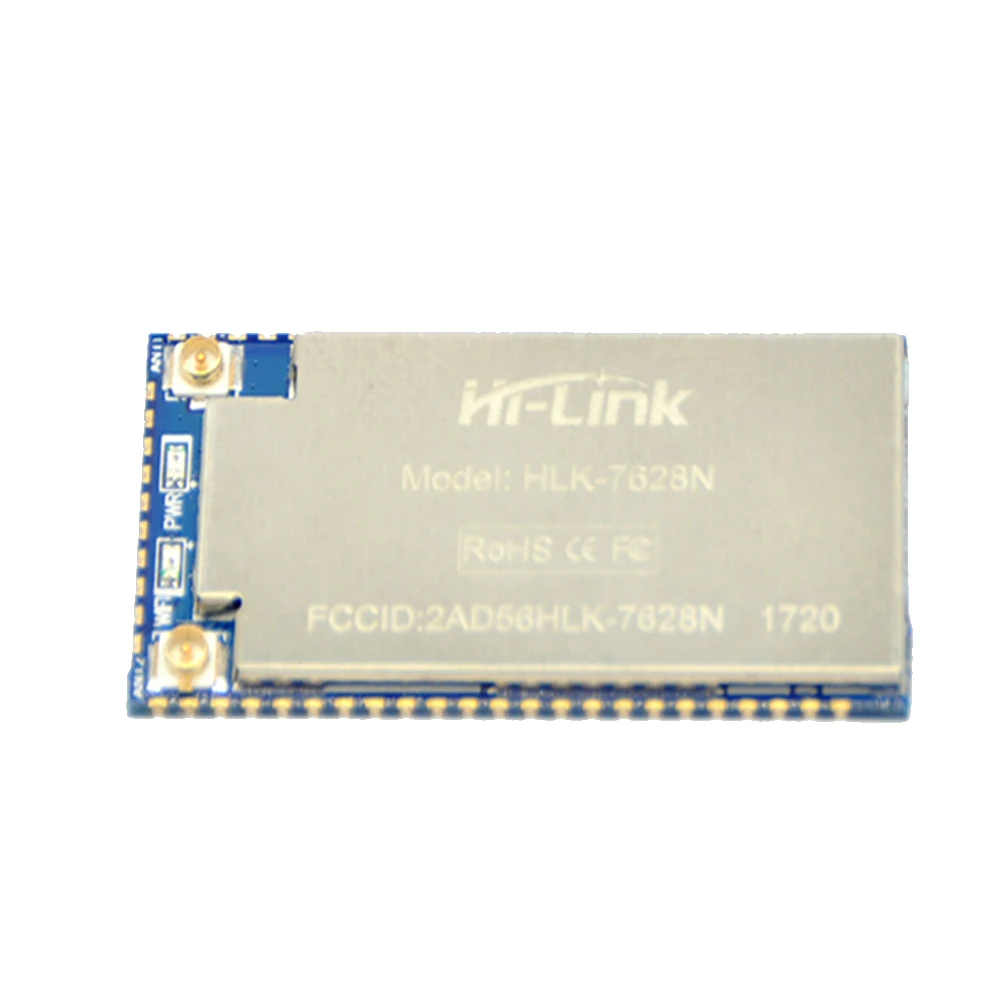

    HLK-MT7628N is a low cost and low power consumption IOT module developed by Hi-Link.

    The module supports Linux, OpenWRT operating system and custom development.

    It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.

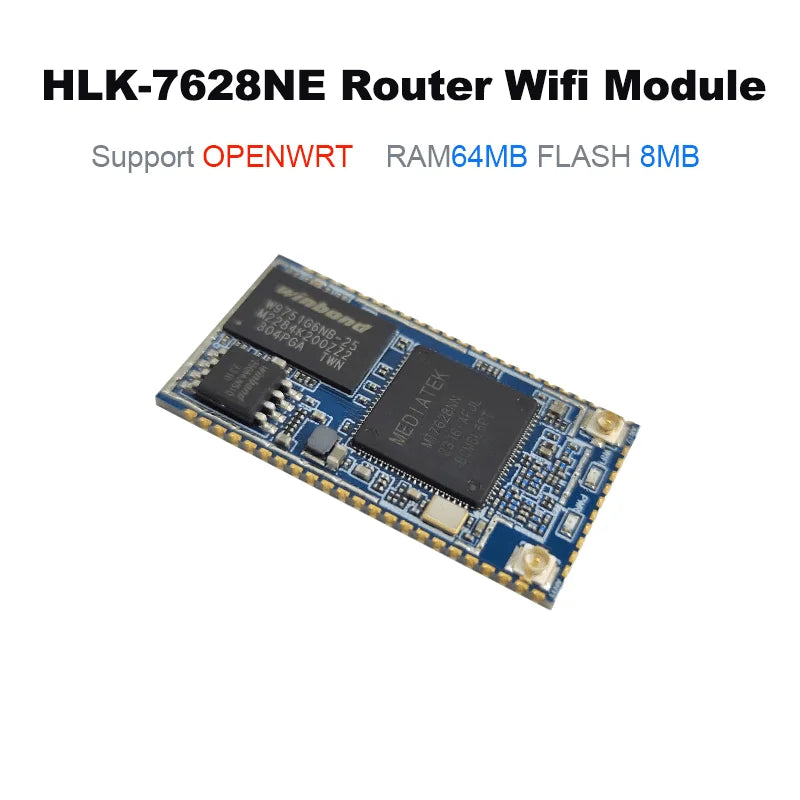

Please notice that HLK-7628NE with smaller RAM and Flash without cover/shield

Key Features:

1.300 Mbps

2. Support AP,STA and AP,STA mixed

3. High data processing ability，CPU frequency 580MHz

4.Rich peripheral interfaces，SPI,I2C,I2S,PCM,UART,JTAG,GPIO

5.OpenWrt 14.07 operating system development



Please notice this link is just sample link for module on promotion, if you need more, can contact me dircetly.

We also get test board to try.

https://www.aliexpress.com/item/4000960474099.html?spm=5261.ProductManageOnline.0.0.6e0d4edfdSujdk



Module Certificate
