SPECIFICATIONS

Brand Name: nobsound

Certification: CE

Channels: Other

Control Method: Push button,Touch,Others

High-concerned chemical: none

Material: Plastic,aluminum,Metal,others

Maximum Power Per Channel: NO POWER

Model Number: L1MINI

Origin: Mainland China

Output Power: 0

Package: Yes

Surround sound channel configuration: Others

Features

Can generate the corresponding 50/60HZ frequency flash source according to the frequency of household power supply 50/60HZ, almost suitable for being used in all countries in the world.

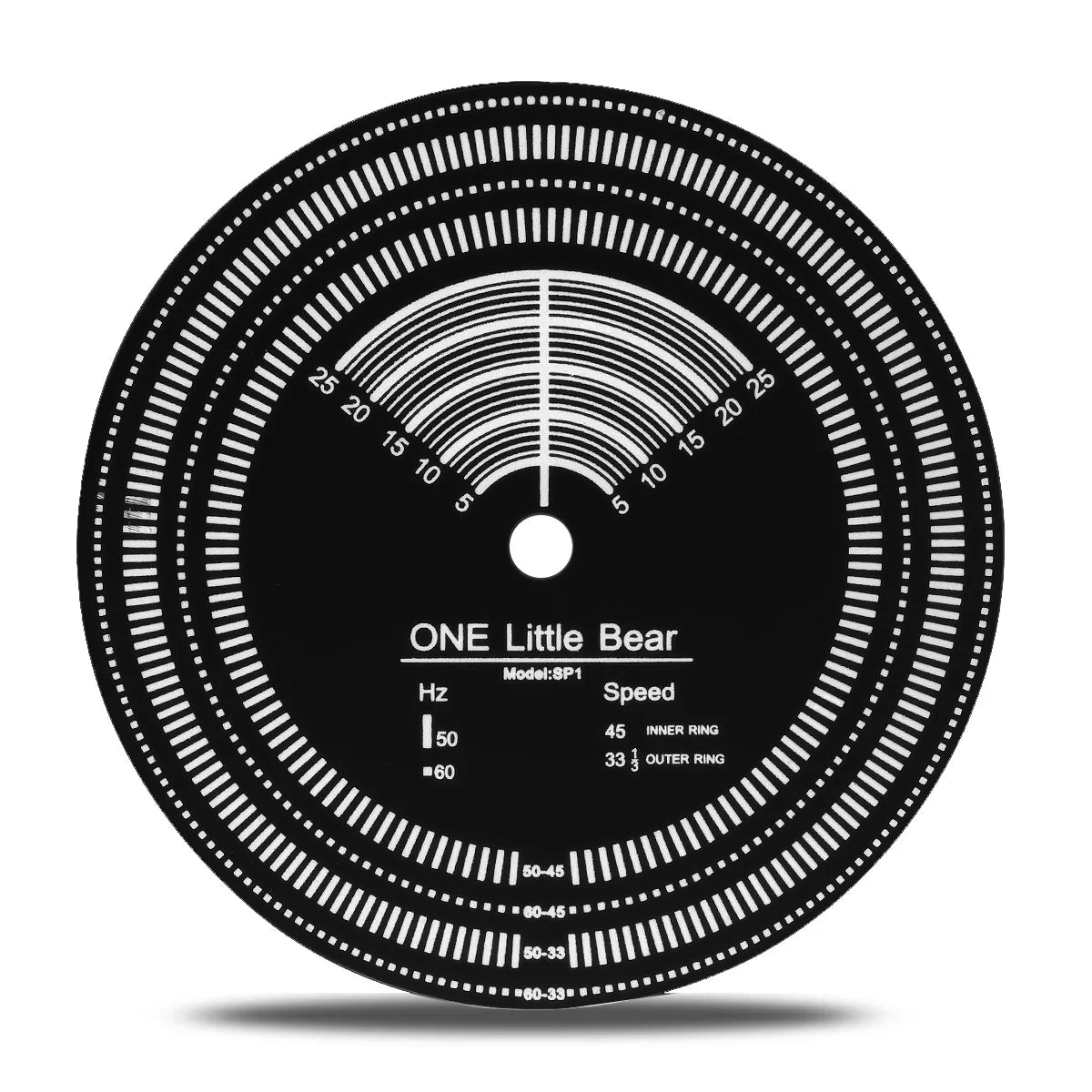

Used with the tachometer disc in the package to adjust the speed of your record player to the most accurate position and ensure the most accurate sound output.

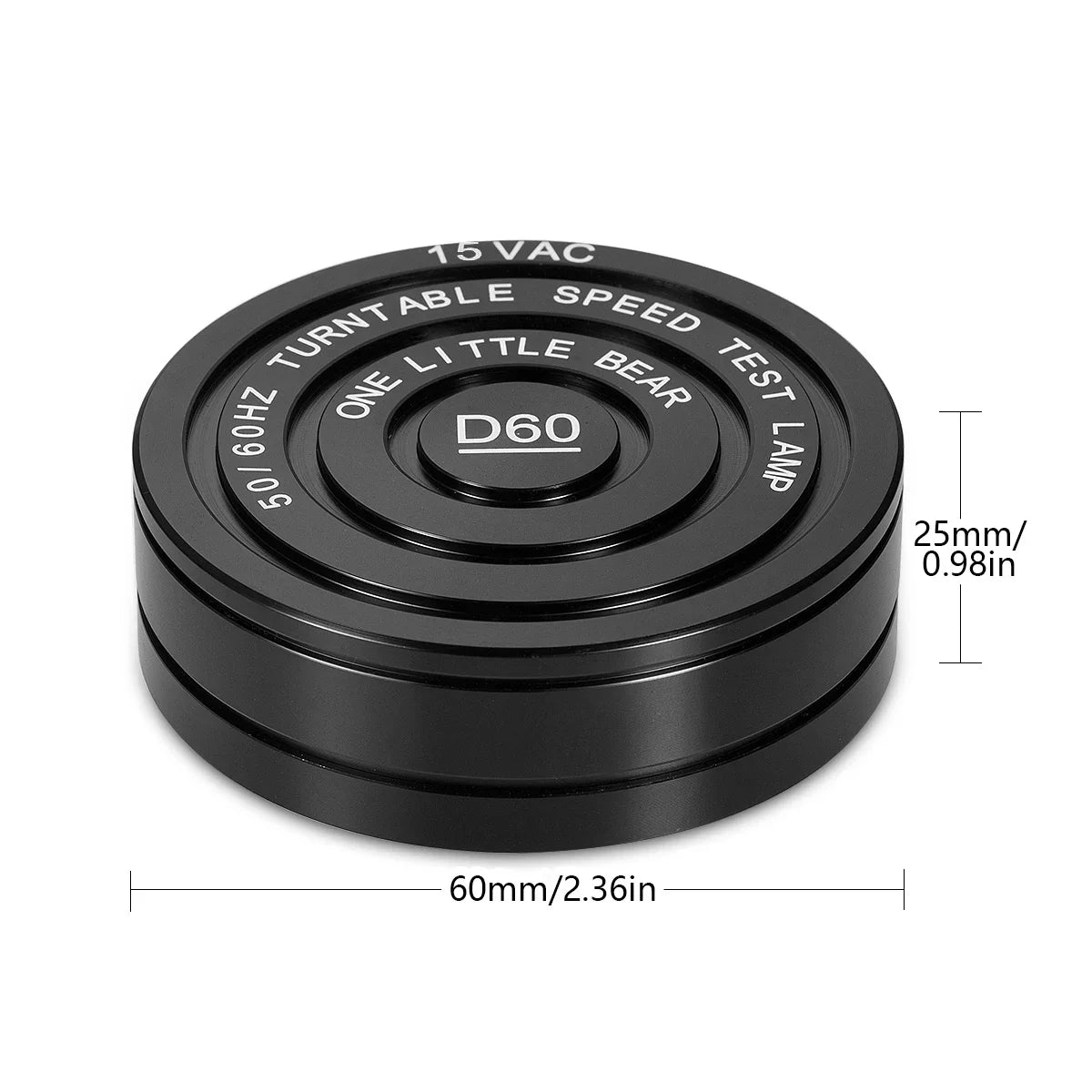

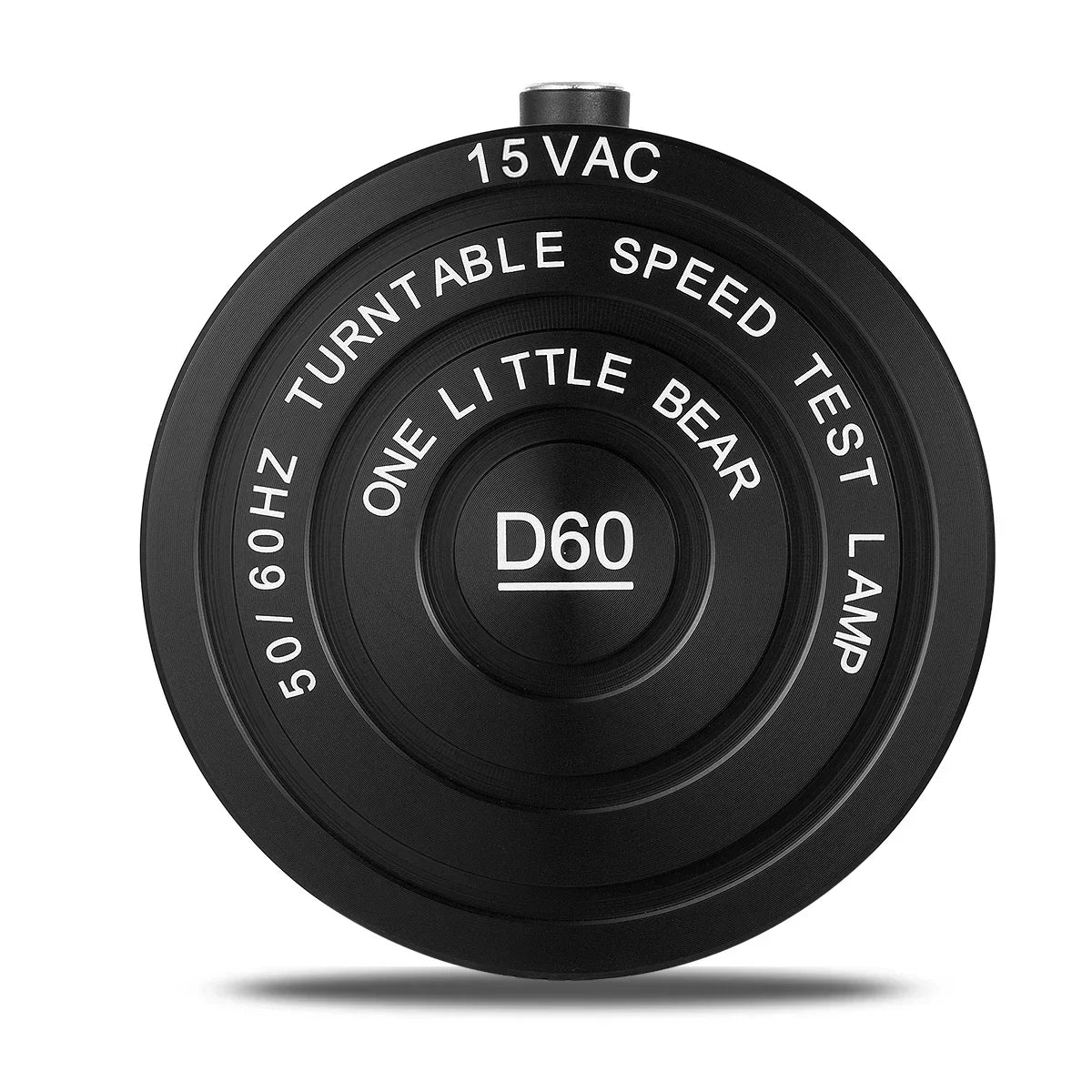

The strobe light uses 15VAC power supply, and the ultra-low voltage is used to ensure that you are protected from electric shock during use, and it is safe and effective.
3W high brightness LED output, can be used in any environment. Whether day or night, indoor or outdoor.
Small size, easy to use and convenient to collect.

How to use:

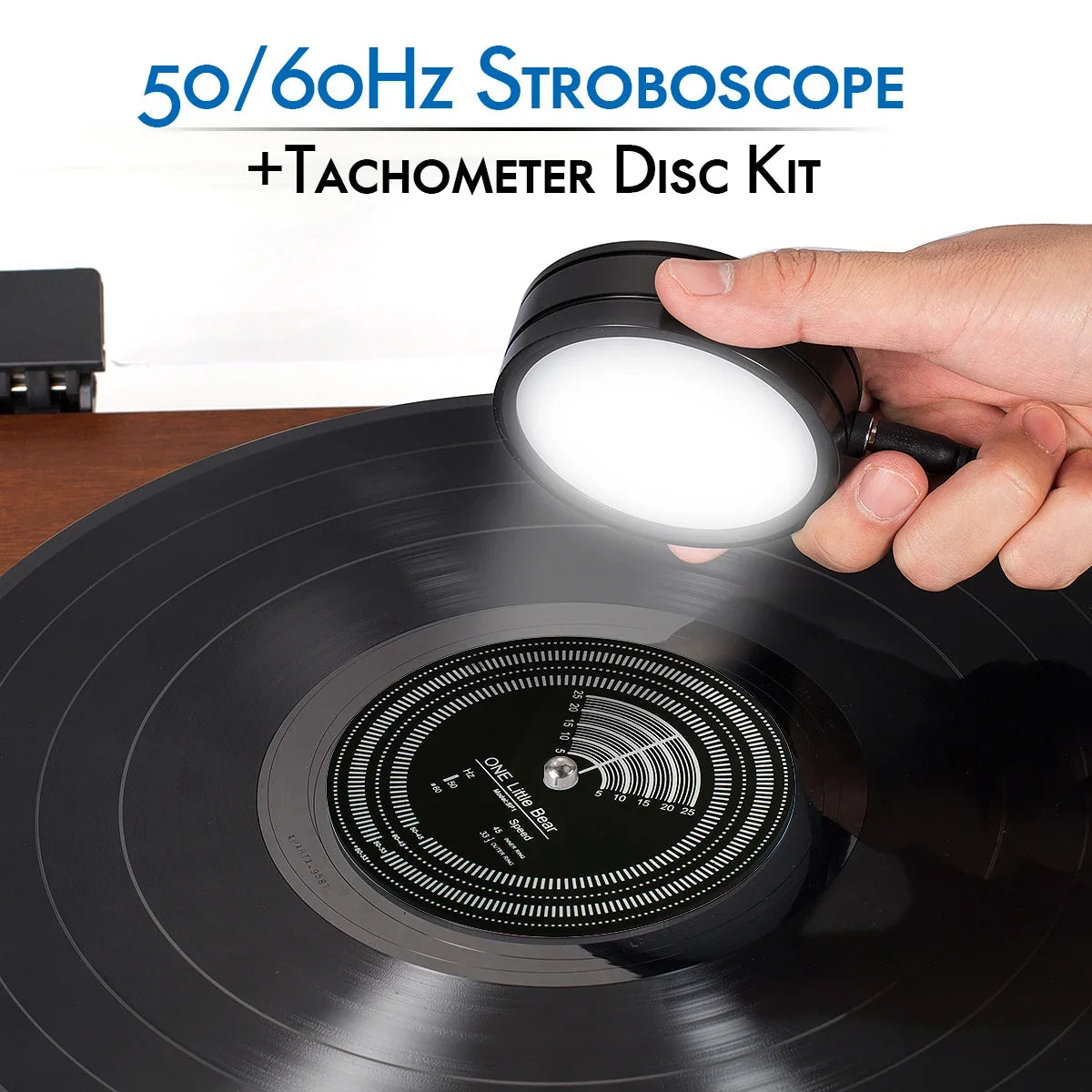

1. Place the tachometer disc on the turntable of the record player and turn on your turntable.

2. Turn on the strobe light, align the light to the tachometer disc , try to put it closer and about 5-10 CM is appropriate.

3. Eyes staring at the corresponding 33.3/45 speed stripe on the tachometer disc.

If the stripes of the LED light must be stable and not moving, the rotation speed is correct ;

If the stripes on the disc are moving slowly clockwise , the turntable is running fast ;

If the stripes on the disc are moving slowly anticlockwise , the turntable is running slow .

4. If your turntable is adjustable, please adjust the rotation speed of the disc until the corresponding speed strip stops.

5. If your turntable is not adjustable, first try a new drive belt. Drive belts can stretch over time causing minor speed variations. Great speed variations are more likely to be mechanical issues.

6. After adjusting the speed, remove the tachometer disc and put your vinyl record on the record player to hear the most accurate music.

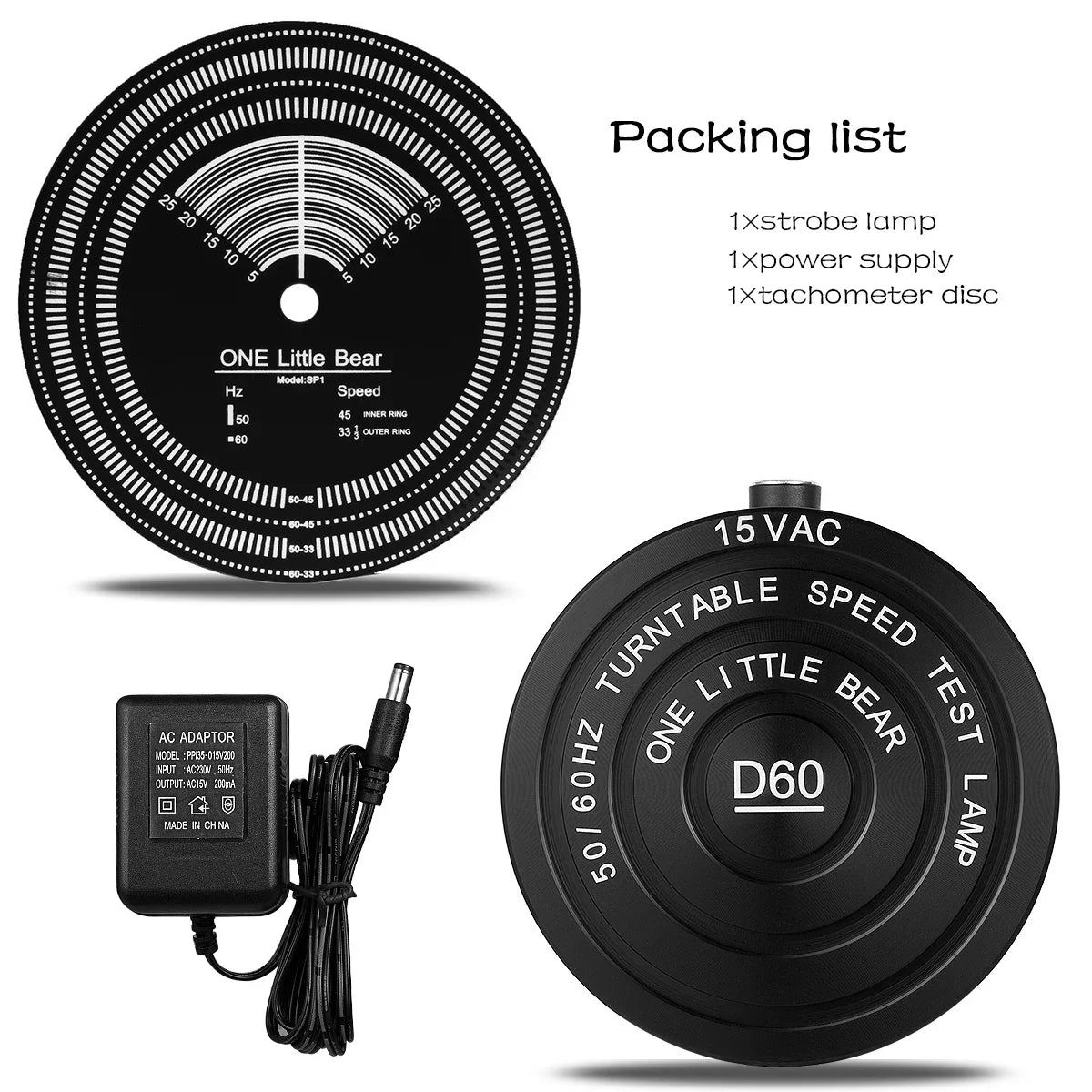

Packing List
