SPECIFICATIONS

Brand Name: meterk

CNC or Not: Normal

Certification: CE

Choice: yes

Condition: New

High-concerned chemical: None

Model Number: Milling Machine

Origin: Mainland China

Features:

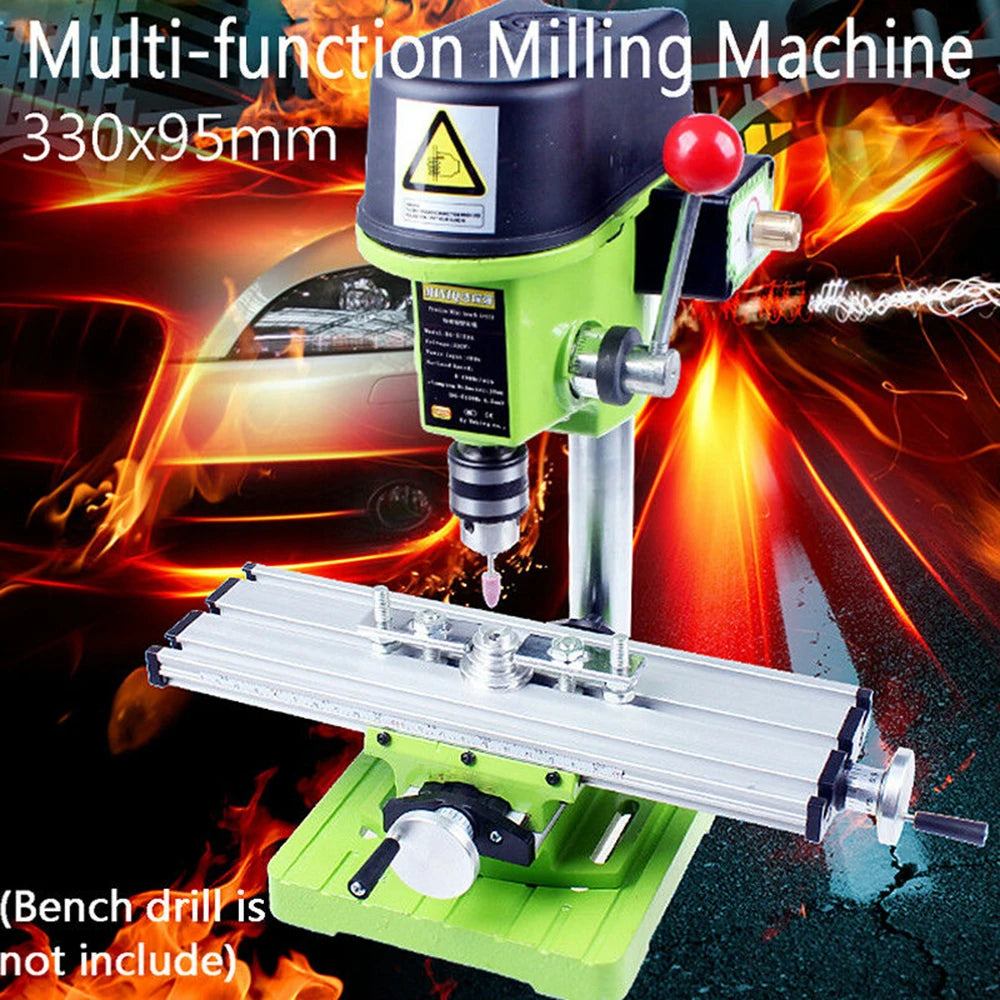

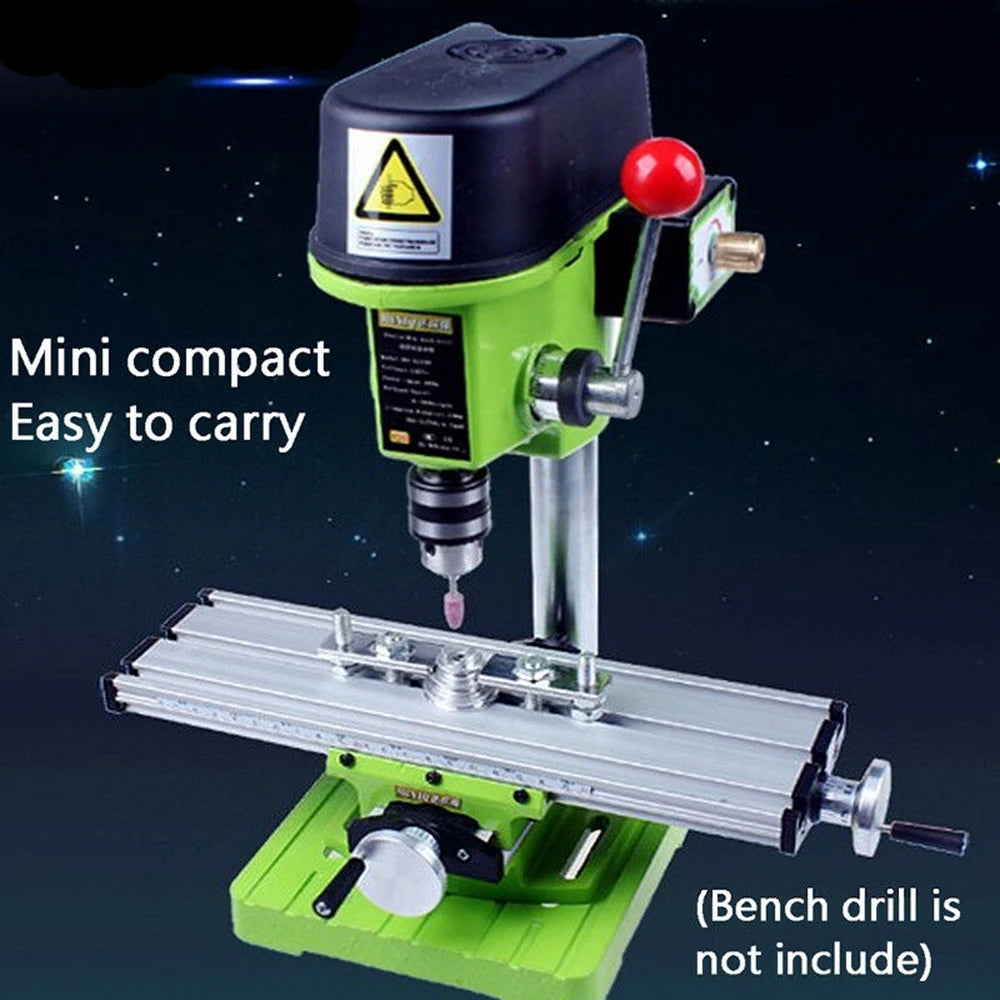

1. The table is suitable for mini drill and drill bracket series.

2. It can also apply to other suitable machine.

3. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.

4. The working table with three T shaped groove.

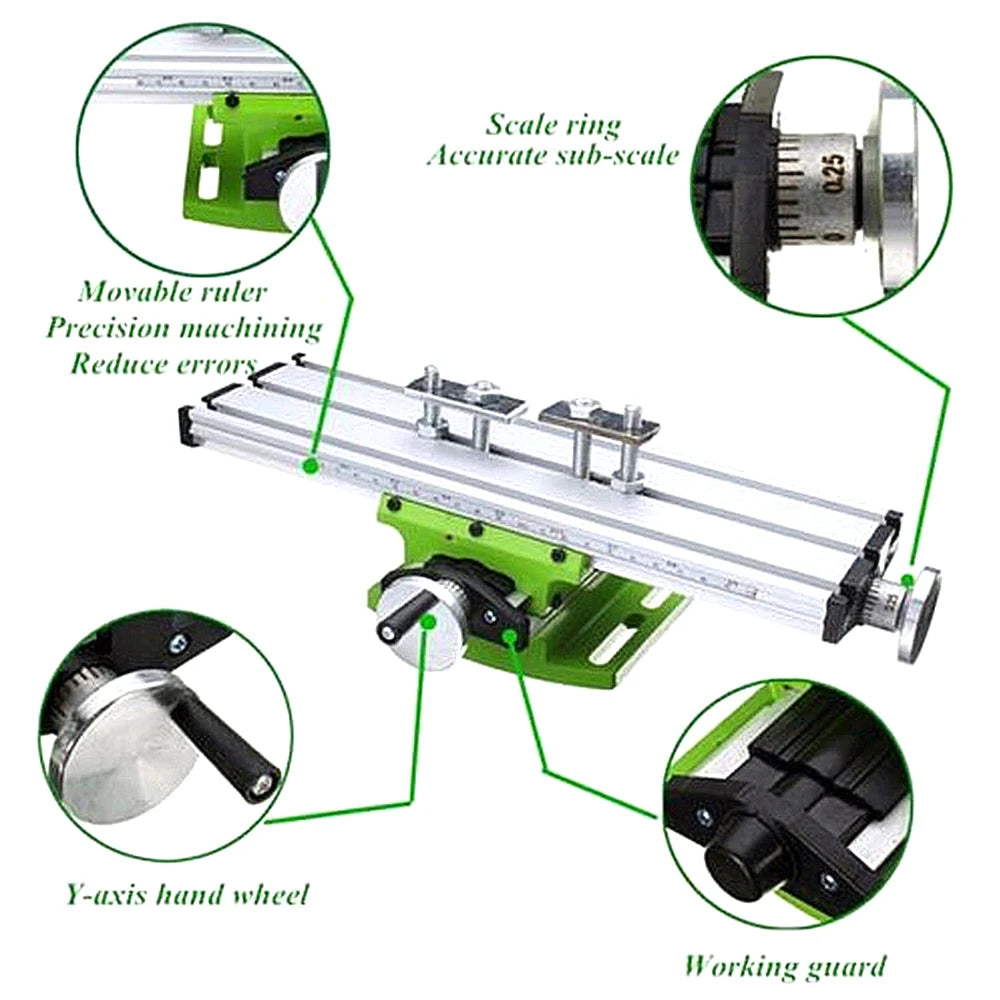

5. Scale is in front of the movable positioning.

6. Zero adjustment hand wheel rotates a circle of 1.25mm.

7. The X-axis distance is 200mm, Y-axis is 50mm.

8. Working table size is 310 x 90mm including two working clamp.



Specifications:

Table size: 300 * 85 * 78mm

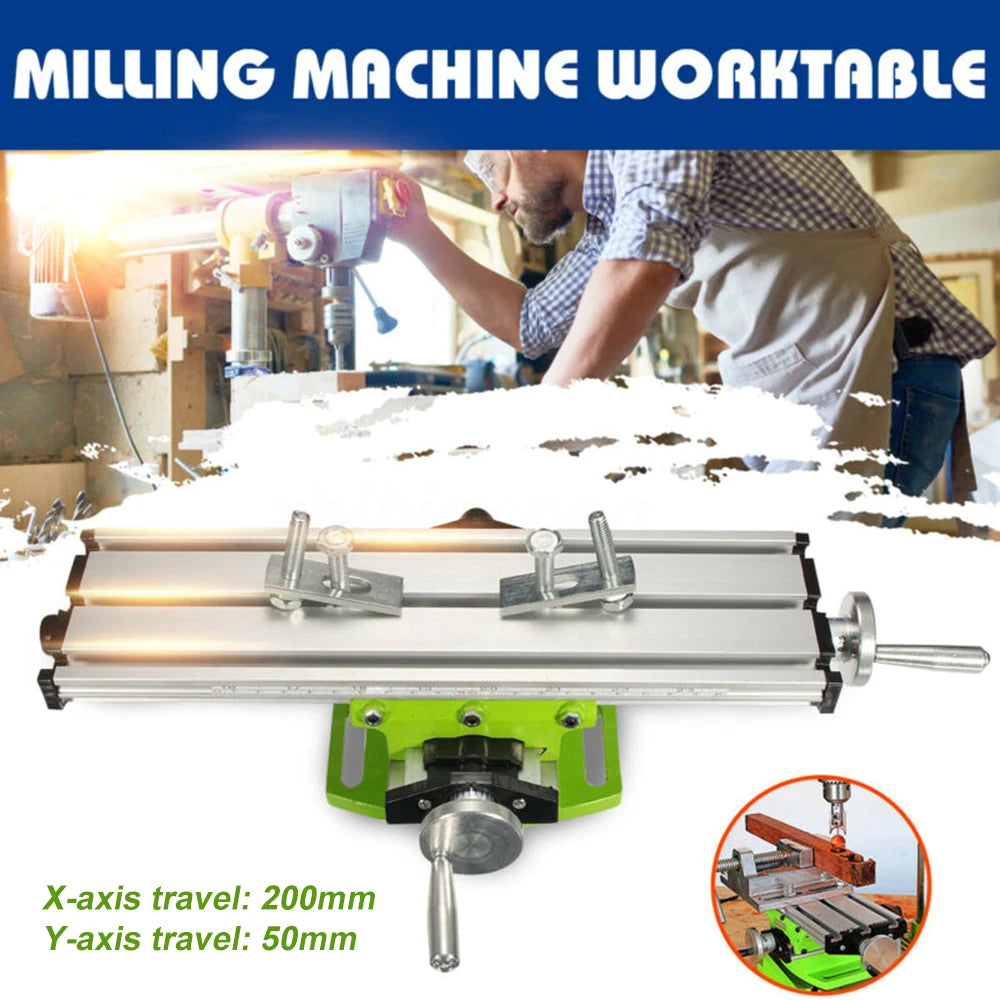

X-axis travel: 200mm

Y-axis travel: 50mm
Distance between grooves: 34mm

1 ring=1.25mm
1 scale=0.05mm

Package Weight: 1657g / 3.65lb

Package Size: 350 * 200 * 80mm / 13.78 * 7.87 * 3.15in

Note:

- Please allow 1-10mm size error due to manual measurement, thanks for your understanding!

Package List:

1 * Mini Multi-function Table

1 * Accessories Set
