SPECIFICATIONS

Brand Name: HTMCK

Choice: yes

High-concerned chemical: none

Item Height: 1.1

Item Weight: 0.18

Item Width: 4.2

Material: Nylon

Model Name: BB100-T5M6-C-RB

Origin: Mainland China

Product Type: Protective Device Accessories

Special Features: Bus Bar Terminal

Year: 2024

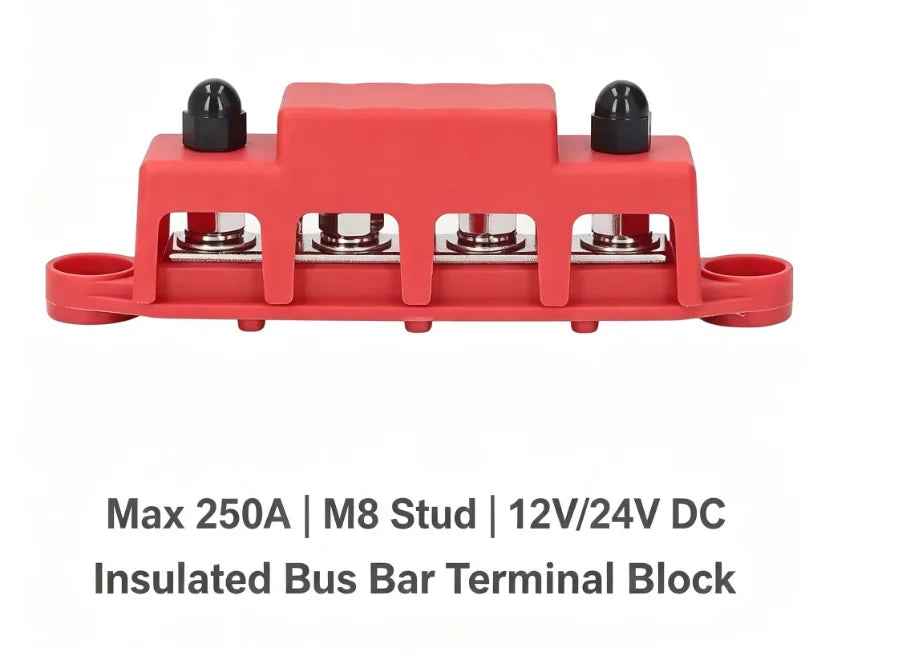

This battery bus bar adopts high-quality conductive copper plate as the conductive core, featuring great electrical conductivity, low resistance and low heat generation during long-time operation.

Stud Quantity: 4 Studs

Stud Size: M8

Rated maximum 250A current, suitable for DC 12V/24V/48V circuit system.

Comes with an insulated safety cover, which can avoid accidental contact, prevent short-circuit risks, greatly improve circuit safety for vehicles and marine equipment.

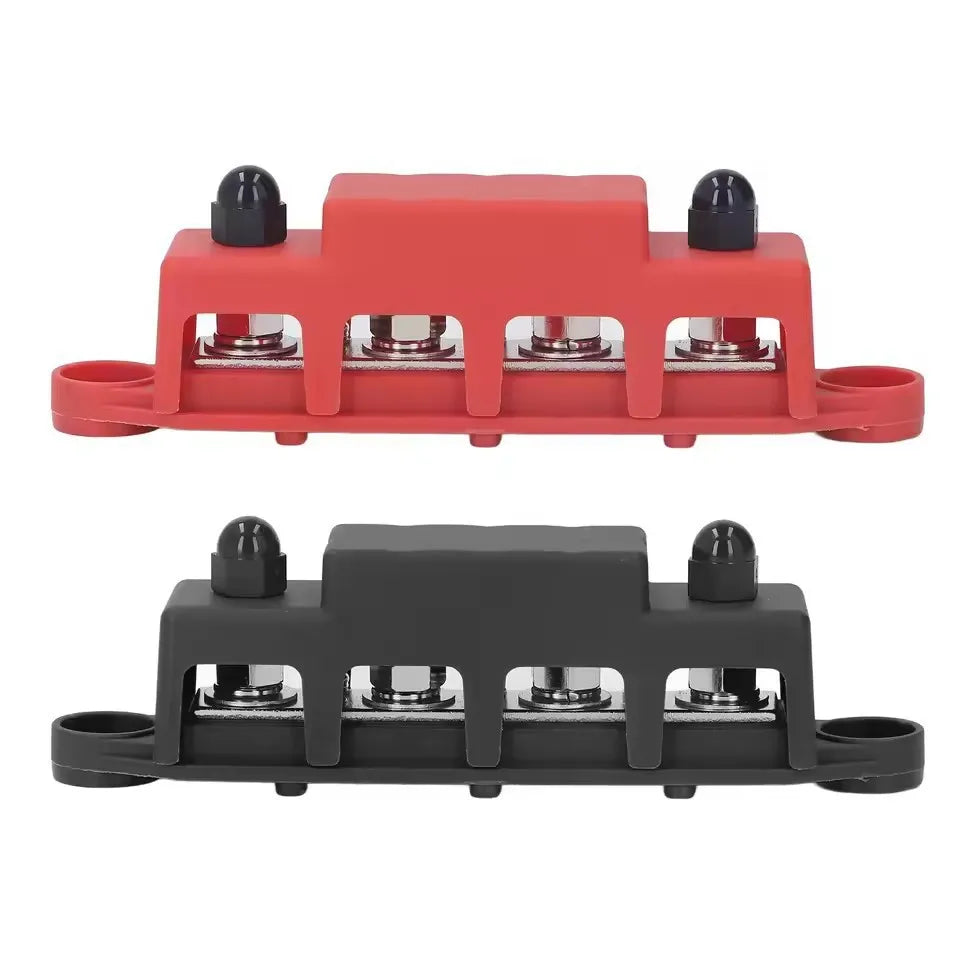

Available in positive (red) and negative (black) two colors, easy to distinguish positive and negative circuits.

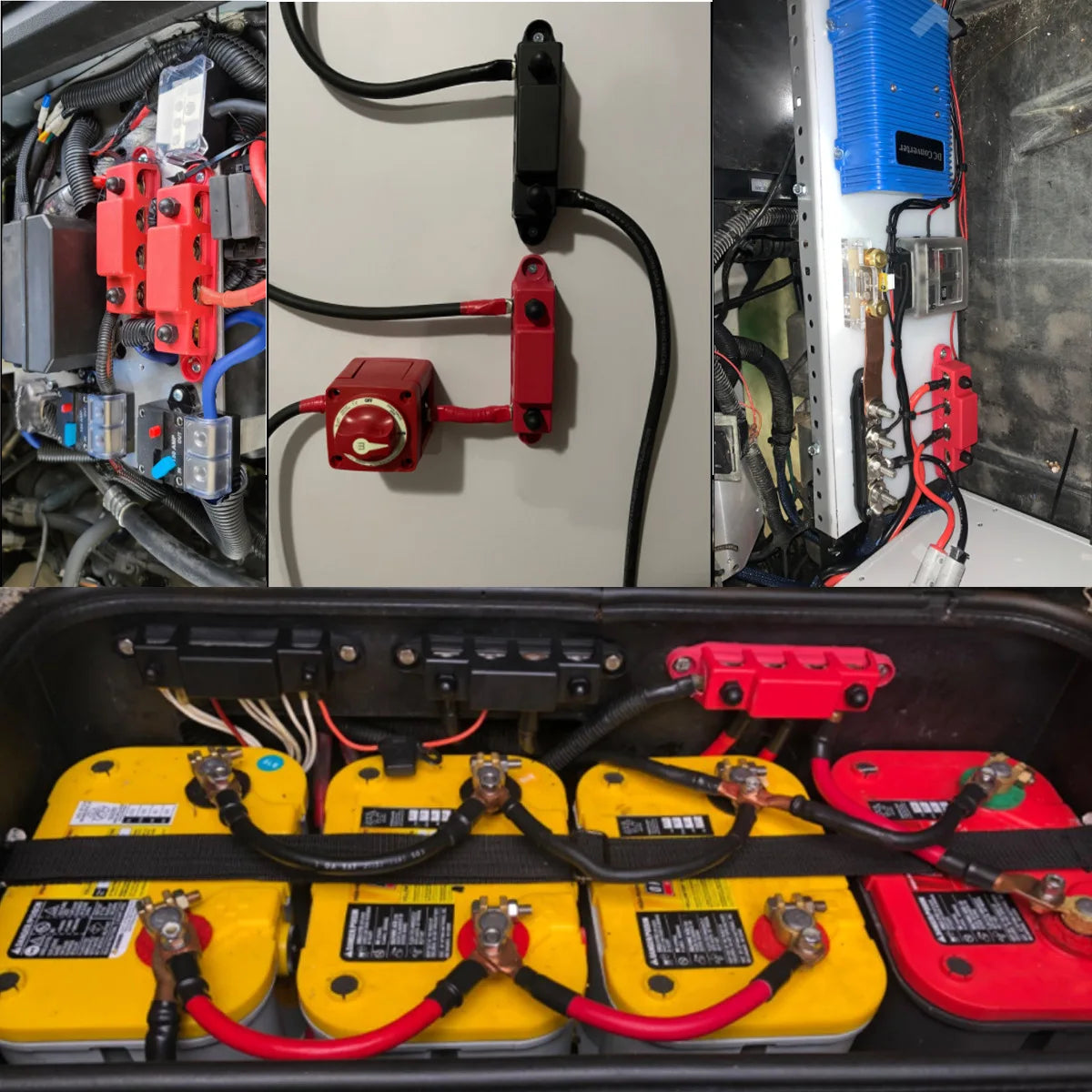

Ideal power junction solution for RV, campervan, caravan, yacht, boat, automobile, off-road vehicle and solar energy storage system.

✅ Heavy-duty conductive copper base, excellent electrical conductivity, low voltage drop, stable power transmission.

✅ Max 300A current load, compatible with 12V/24V/48V DC system, widely used for RV, camper, yacht, car, off-grid solar power.

✅ Equipped with insulated safety protective cover, effectively prevent accidental short circuit and electric shock, improve safety.

✅ Red(Positive) & Black(Negative) optional, clear polarity distinction, convenient for circuit layout.

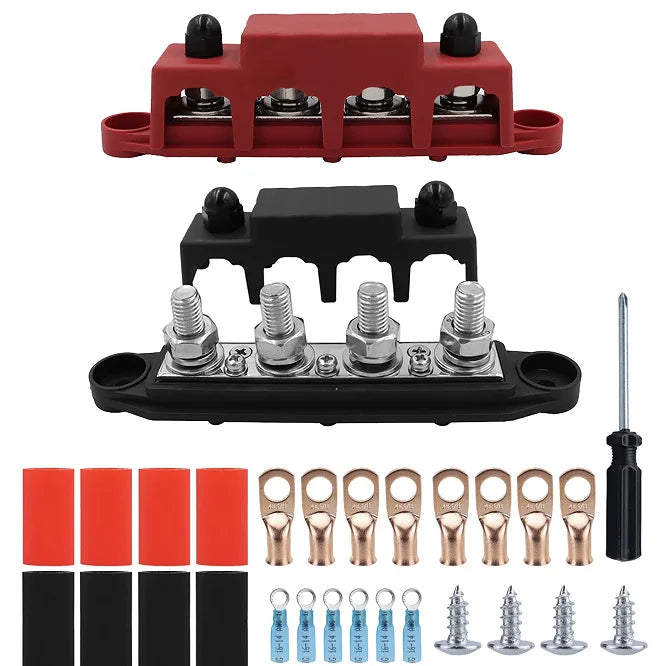

✅ Complete installation accessories (cable lugs, heat shrink tubes, screws, screwdriver included for kit version), easy to install.

Material: Conductive Copper Base + Nylon Insulated Housing

Stud Quantity: 4 Studs

Max Rated Current: 250A

Working Voltage: DC 12V / 24V / 48V

Color Option: Red (Positive), Black (Negative)

Package Option: Bus Bar Only / Complete Installation Kit

Warm Reminders

his bus bar is only suitable for DC circuit, DO NOT use for AC mains power.

Please confirm your maximum working current will NOT exceed 250A. Overload will cause overheating and damage the product.

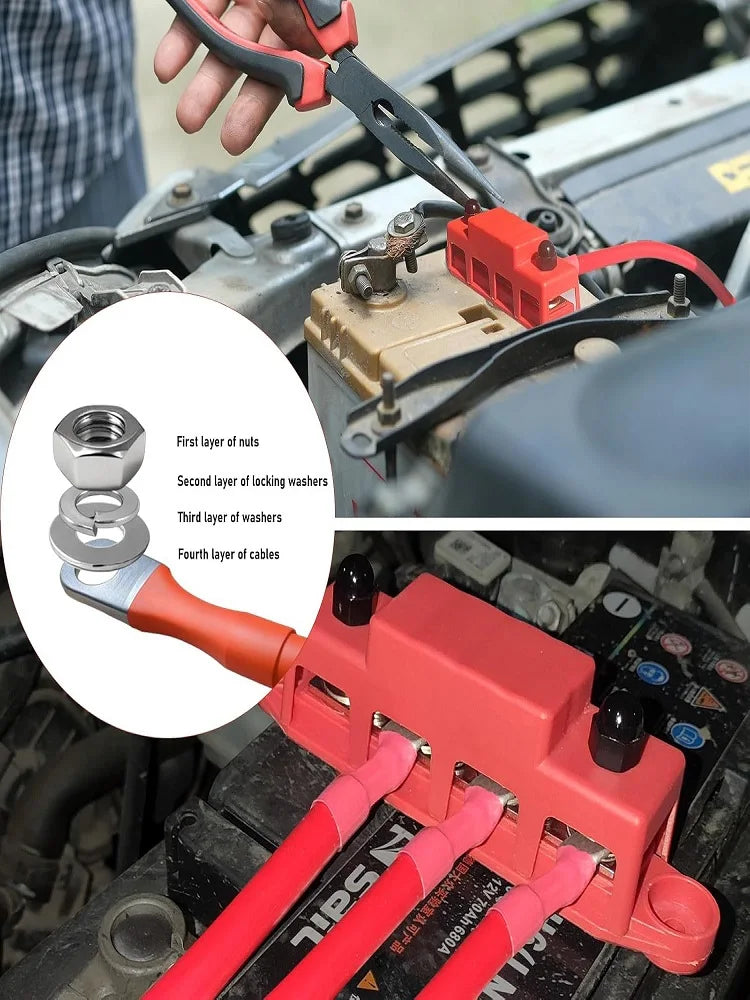

Correctly tighten all nuts during installation. Loose wiring will lead to high temperature, poor contact and circuit failure.

Please match suitable gauge cables according to actual load current. Improper wire specification affects power supply safety.

All dimensions are manually measured, slight tolerance exists.

Check the package and goods immediately after receiving parcel. If damaged or missing accessories, take clear photos and contact us first, please do not open dispute directly.

Professional electrician installation is recommended. Incorrect wiring may cause short circuit, equipment damage.
