SPECIFICATIONS

Application: Desktop

Audio Channels: 7.1

Back I/O Ports: 1x RJ45,2x USB 3.2/3.1 Gen 1,PS/2

Battery Included: Yes

Brand Name: Gigabyte

Certification: weee

Chipset: AMD B550

Chipset Manufacturer: AMD

Choice: yes

Form Factor: CeB,others

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 2

Number of PCIe x 4: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.1 /3.2 Gen 1 Connector,RGB Header,8-pin +12V Power Connector,OthersConnectors & Header,M.2_FAN Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: Yes

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 4000 Series-R9

Quality Certification: FCC

RAID Supported: no

Socket Type: AM4

Special Features: NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Supports M.2 SSD: 2242,2280,2260,22110

Usage Scenario: others

With CPU: No

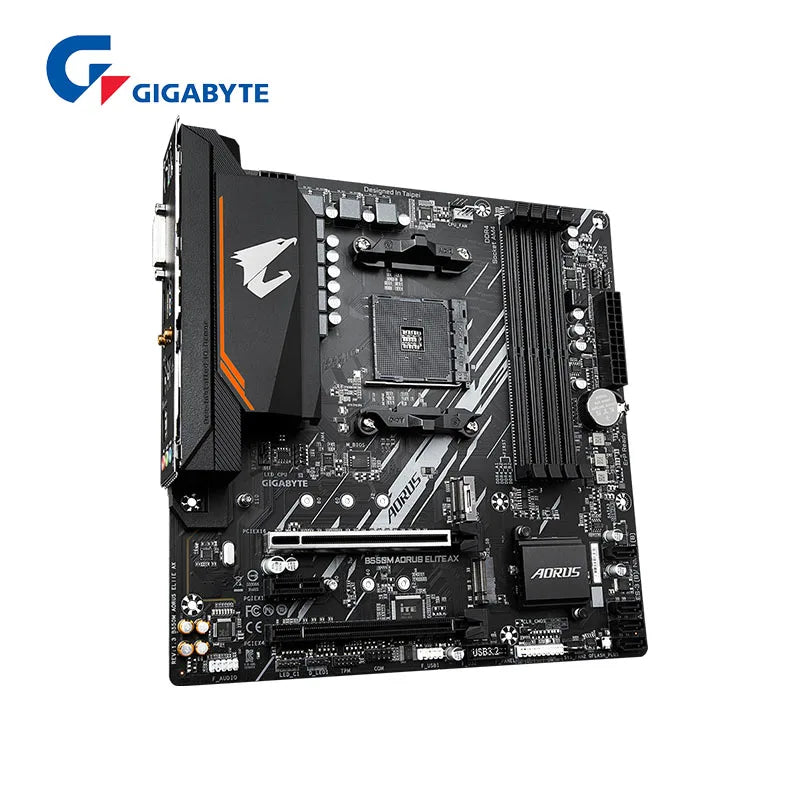

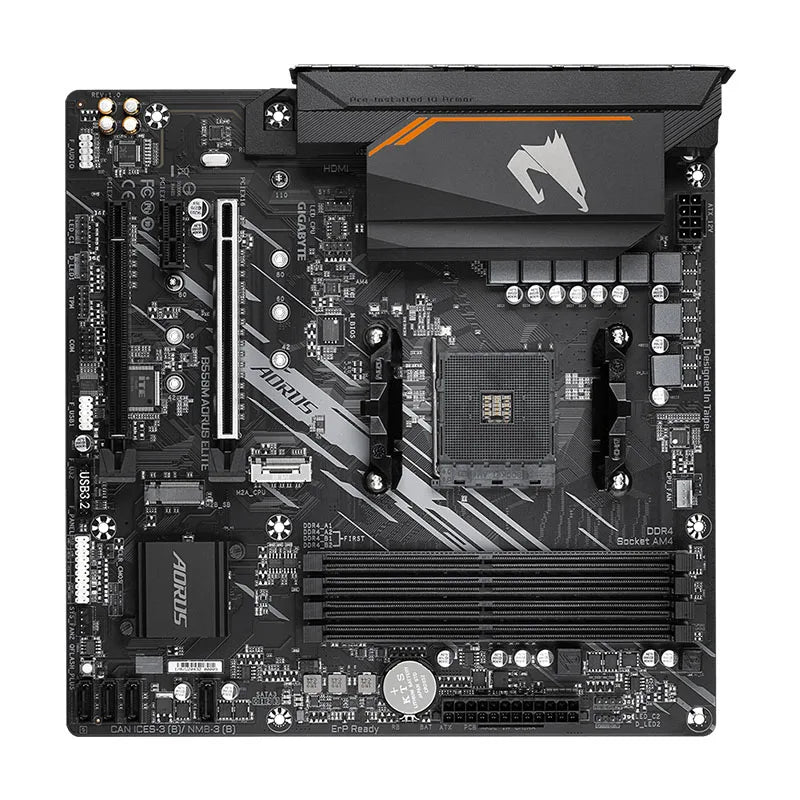

The AMD B550 AORUS motherboard features a digital power supply design, PCI-E 4.0 graphics card slots, 2 sets of M.2 SSD slots, gigabit high-speed network card, Smart Fan 5 with intelligent fan technology, RGB FUSION 2.0, Q-Flash Plus

Support AMD Ryzen ™ 5000 series/Ryzen ™ 5000 G-series/Ryzen ™ 4000 G-series/Ryzen ™ 3000 series and 3000G series processors

Integrated with four memory slots, supporting dual channel ECC/Non ECC DDR4 memory

5+3-phase power supply with low resistance transistor

PCI-E 4.0 alloy armored graphics card slot

High speed NVMe PCI-E 4.0/3.0 M.2 SSD slot

High quality audio dedicated capacitor+independent audio block isolation line

Gigabit high-speed network card equipped with intelligent management software

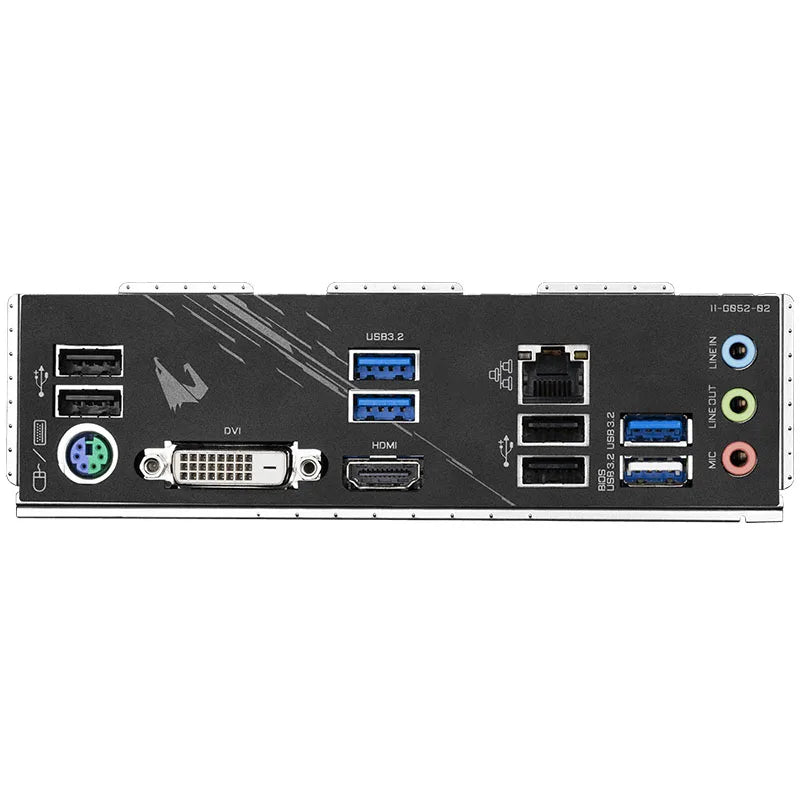

The rear window interface supports HDMI&DVI

RGB FUSION 2.0 lighting system, supporting digital LED and integrated programmable RGB LED strip sockets

Smart Fan 5 technology, integrating multi-point temperature measurement function and adopting a hybrid fan socket with support for FAN STOP technology

Q-Flash Plus can easily update BIOS without installing CPU, memory, or graphics card

Anti sulfur resistor design extends service life
