Description

Are you still feeling tired of manual spraying on a large area? This backpack sprayer with 3.7gal large capacity has 2.13kW strong power and 39.4ft wide range, which can achieve accurate spraying operation and evenly care for each leaf vein. It is the guardian of farmland and an ideal choice during the busy farming season. Choosing it will take you into a new era of efficient farming and witness a bountiful harvest!

Key Features

Large Capacity: Its 3.7gal large capacity tank can significantly increase continuous operation time and reduce refilling frequency, accelerating the completion of your work.

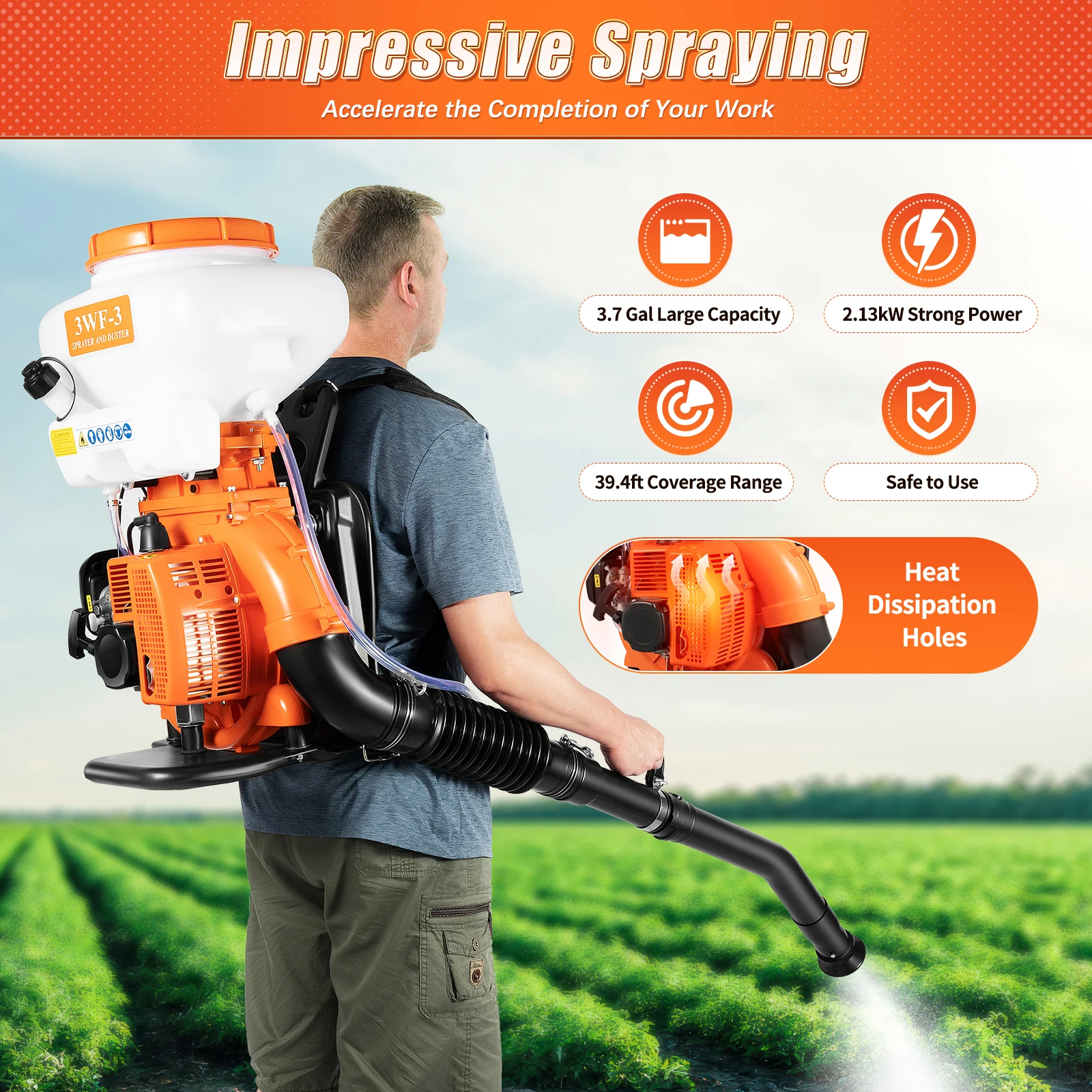

Impressive Spray: Through its high-speed airflow technology and 2.13kW strong power, pesticides can be quickly and evenly sprayed onto the surface of crops with a wide coverage range(39.4ft), improving work efficiency.

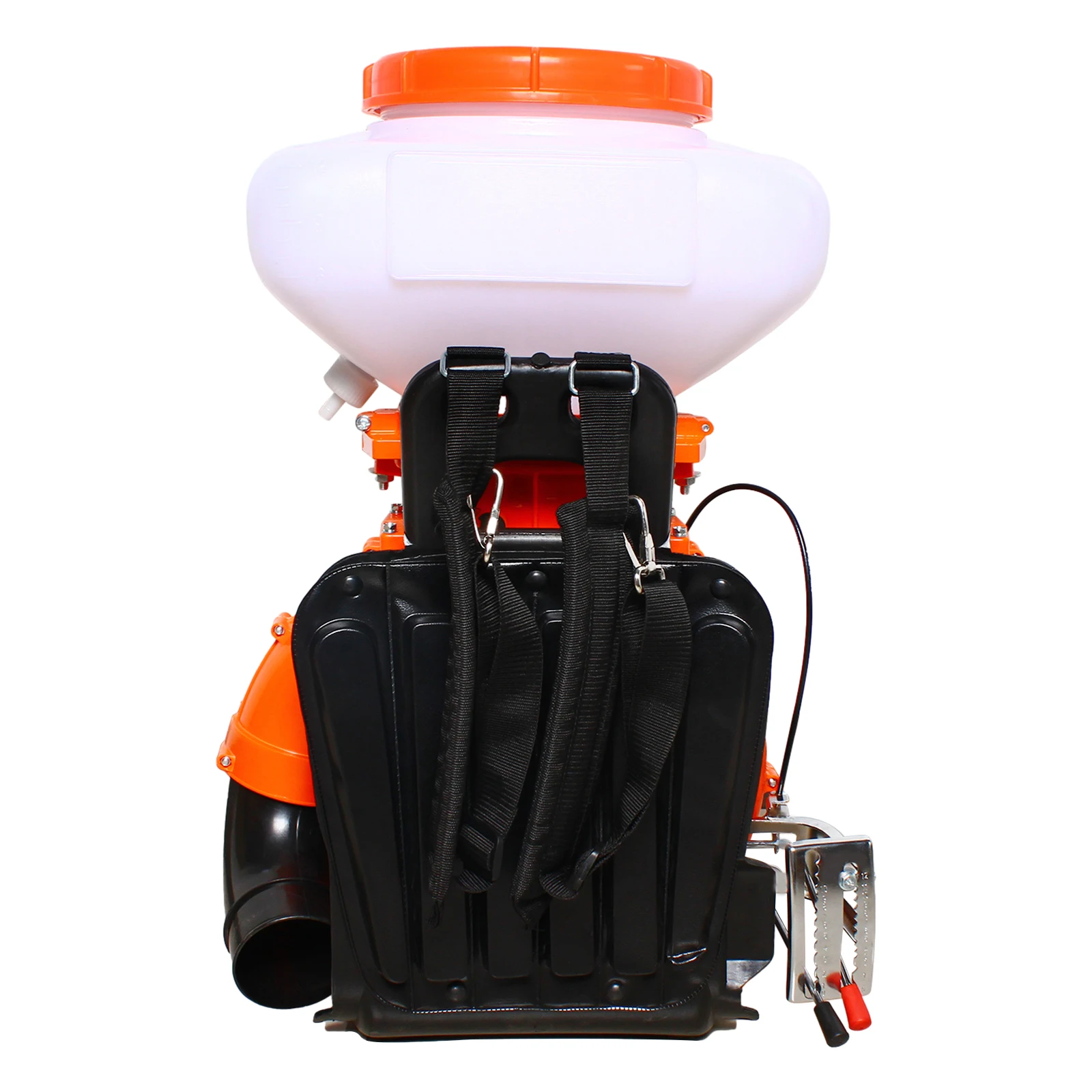

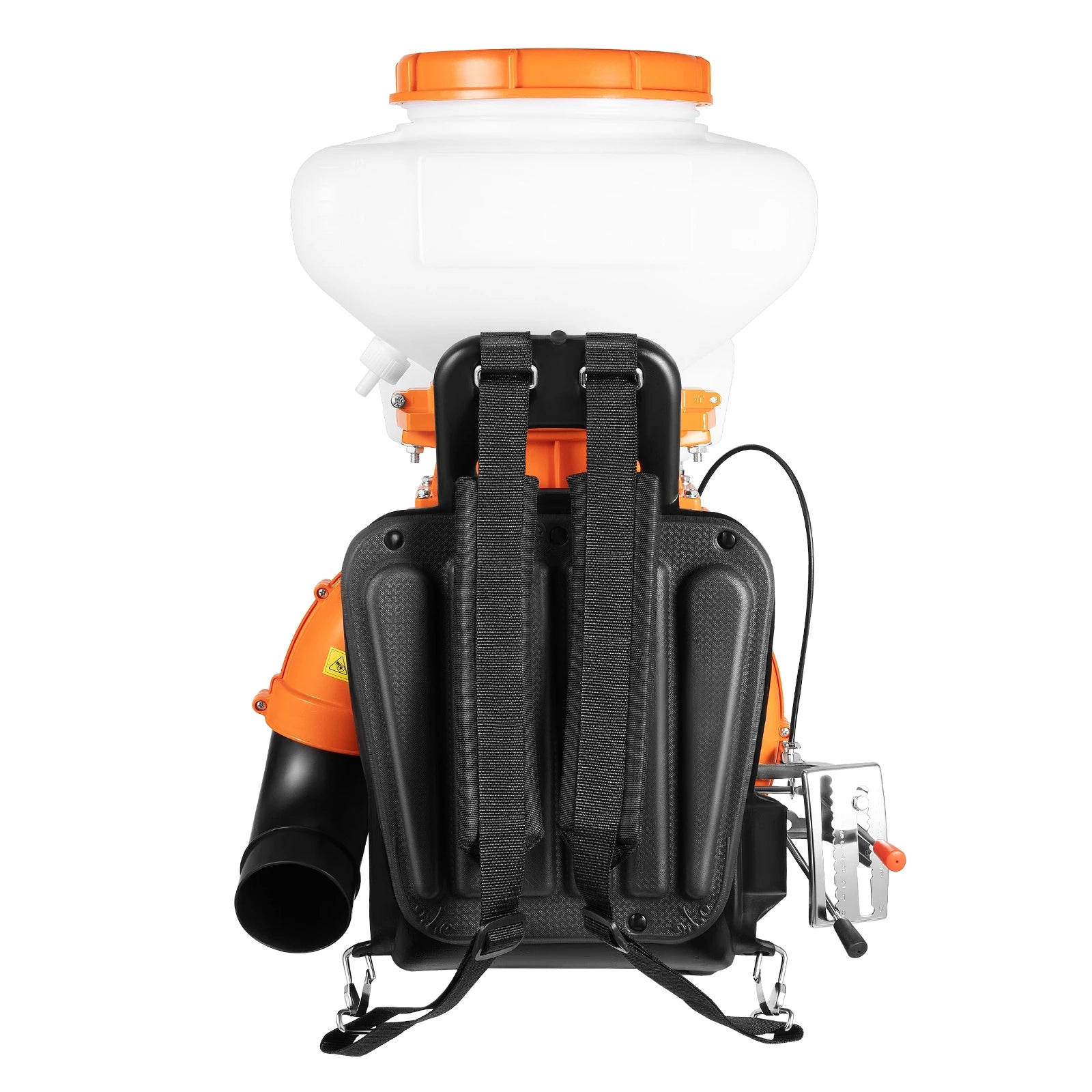

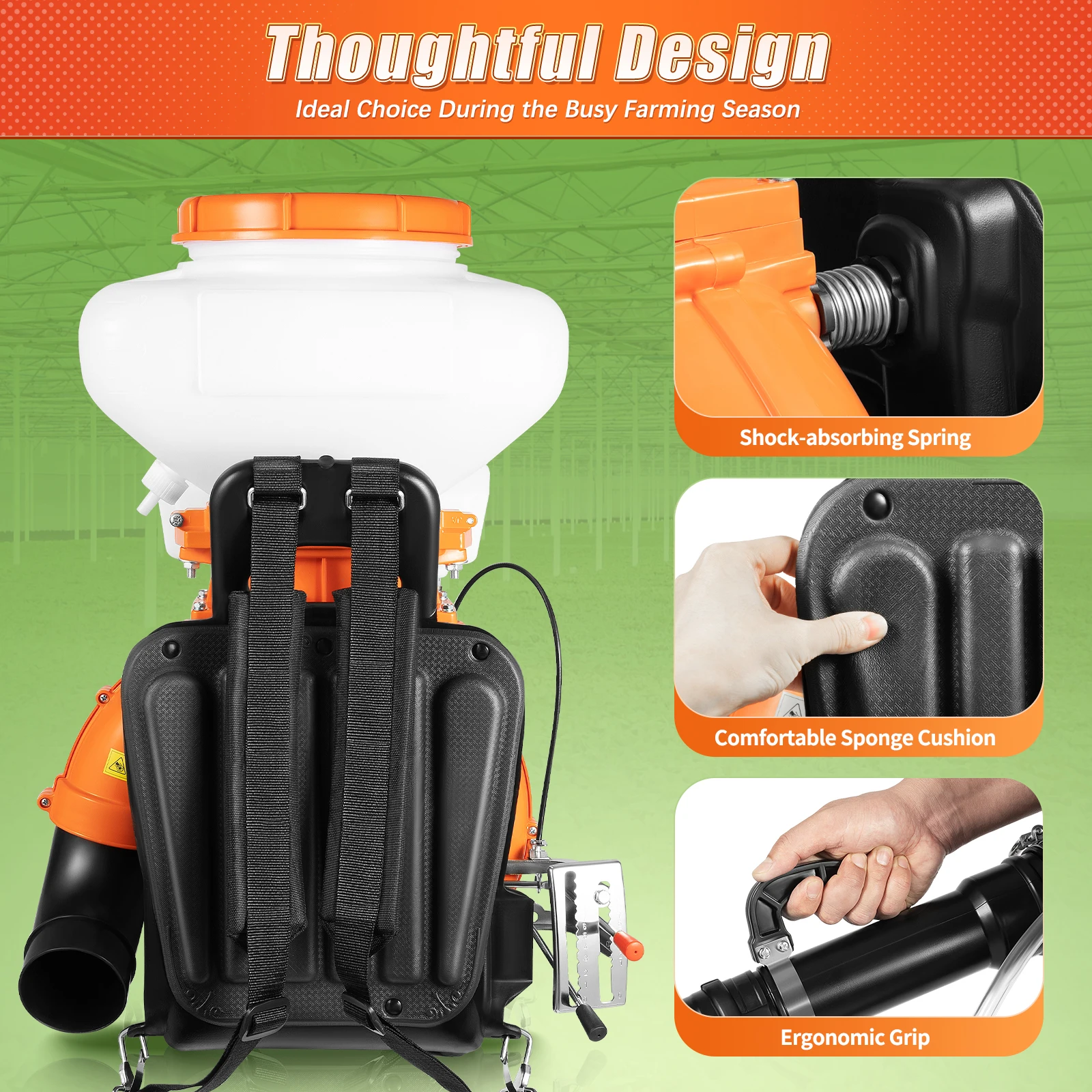

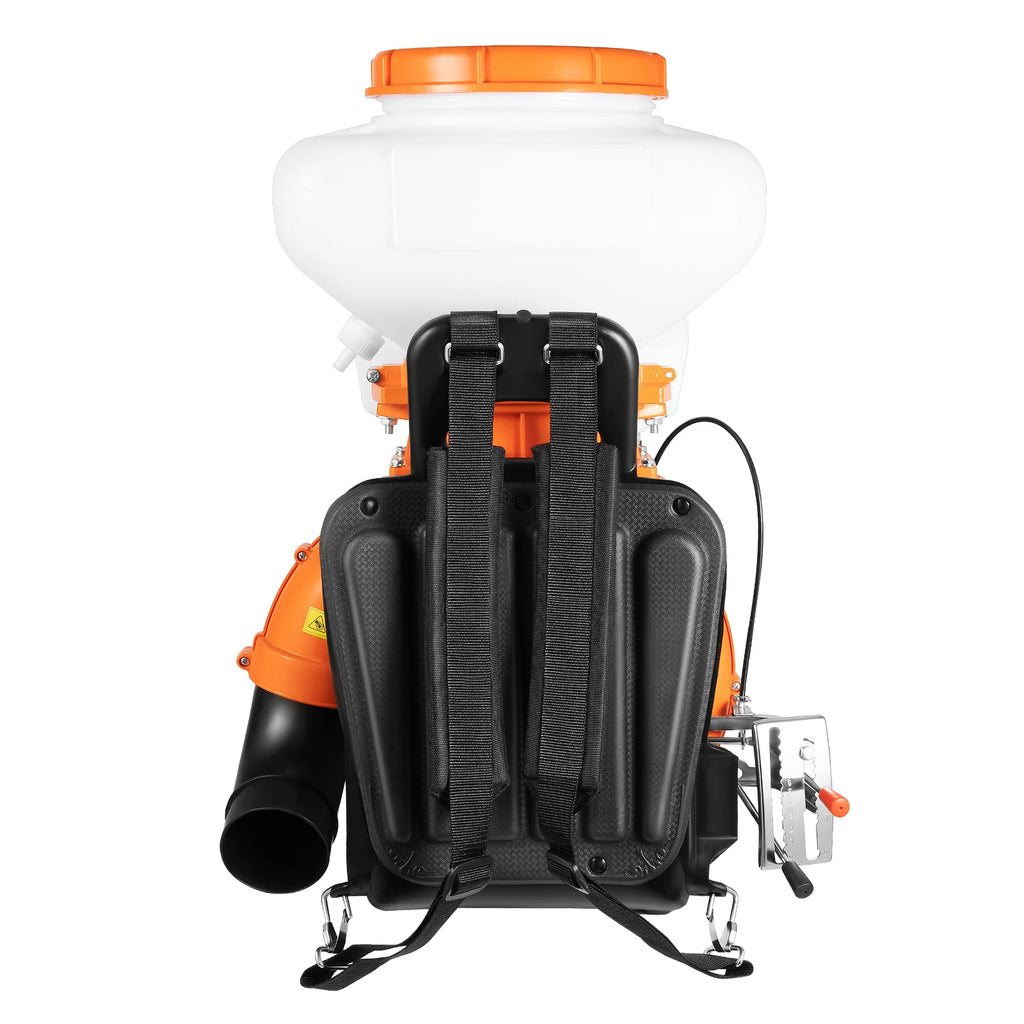

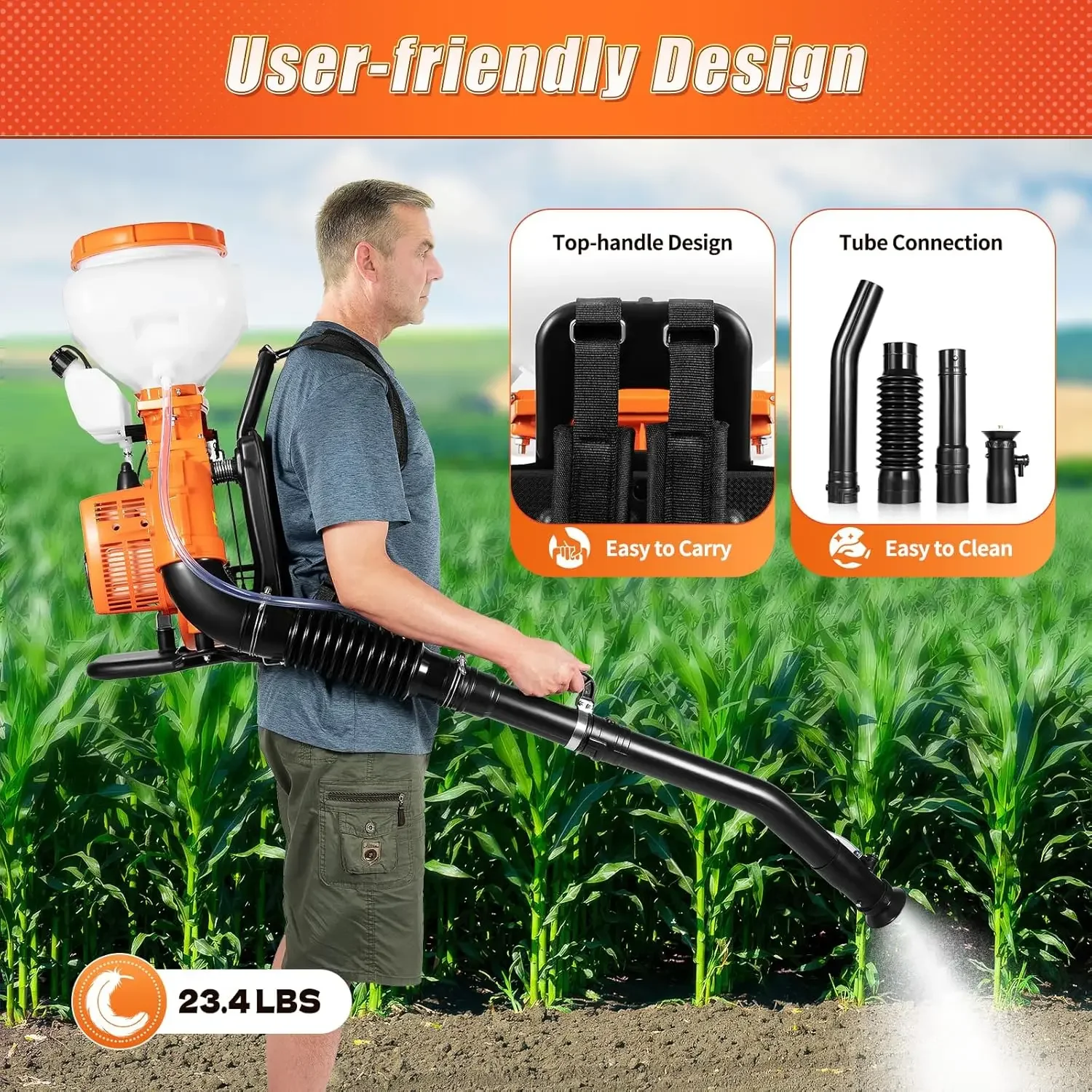

Comfortable Design:Its backrest is equipped with a shock-absorbing spring and a shock-absorbing sponge cushion, and its grip adopts an ergonomic design, providing a comfortable grip. Even if working for a long time, you won’t feel tired or stuffy.

Cost Savings: It is made of high-quality plastic and aluminium, which are corrosion-resistant. Its 2-stroke motor is more fuel-efficient. Therefore, you can use it for a long time without frequent replacement, which can save your costs.

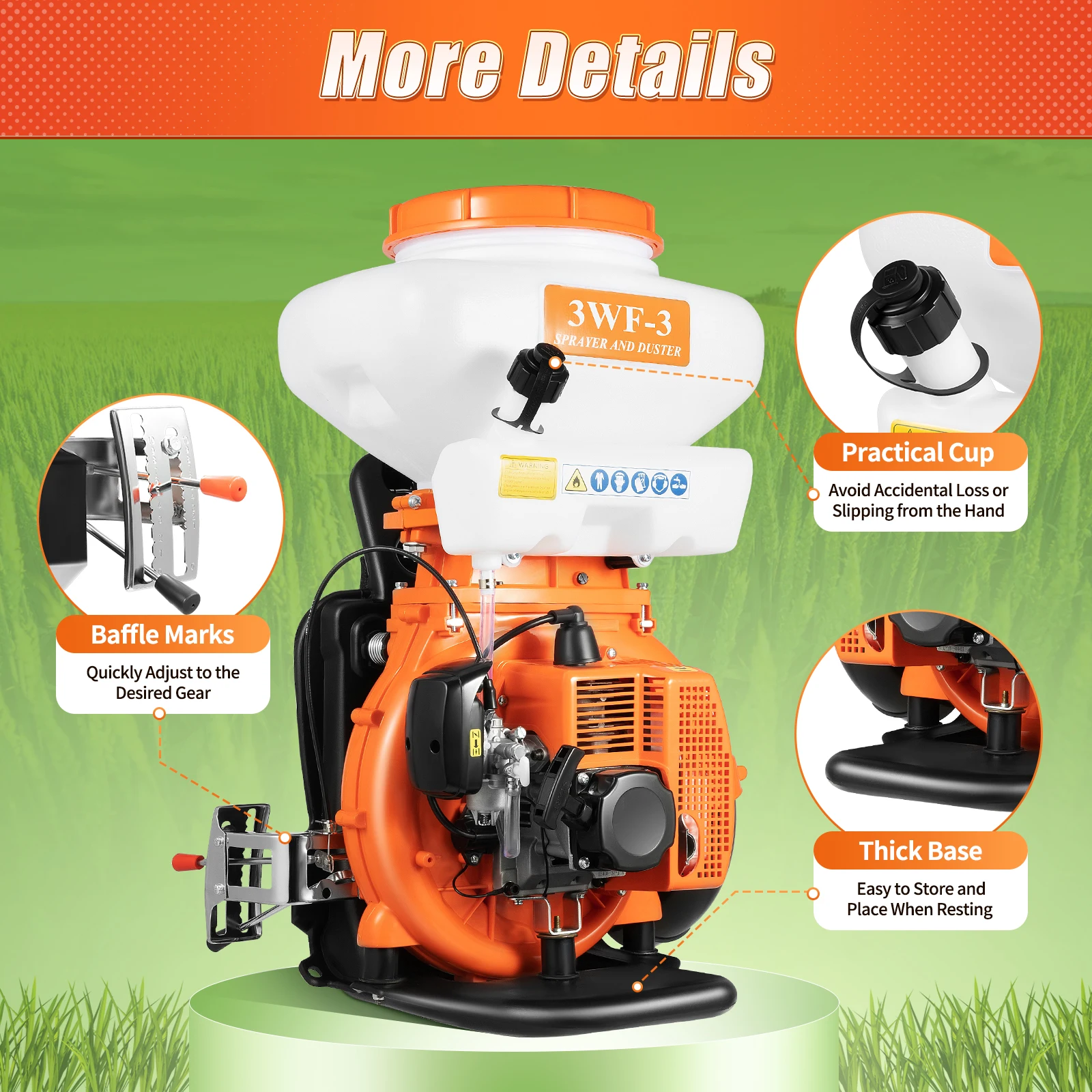

Details

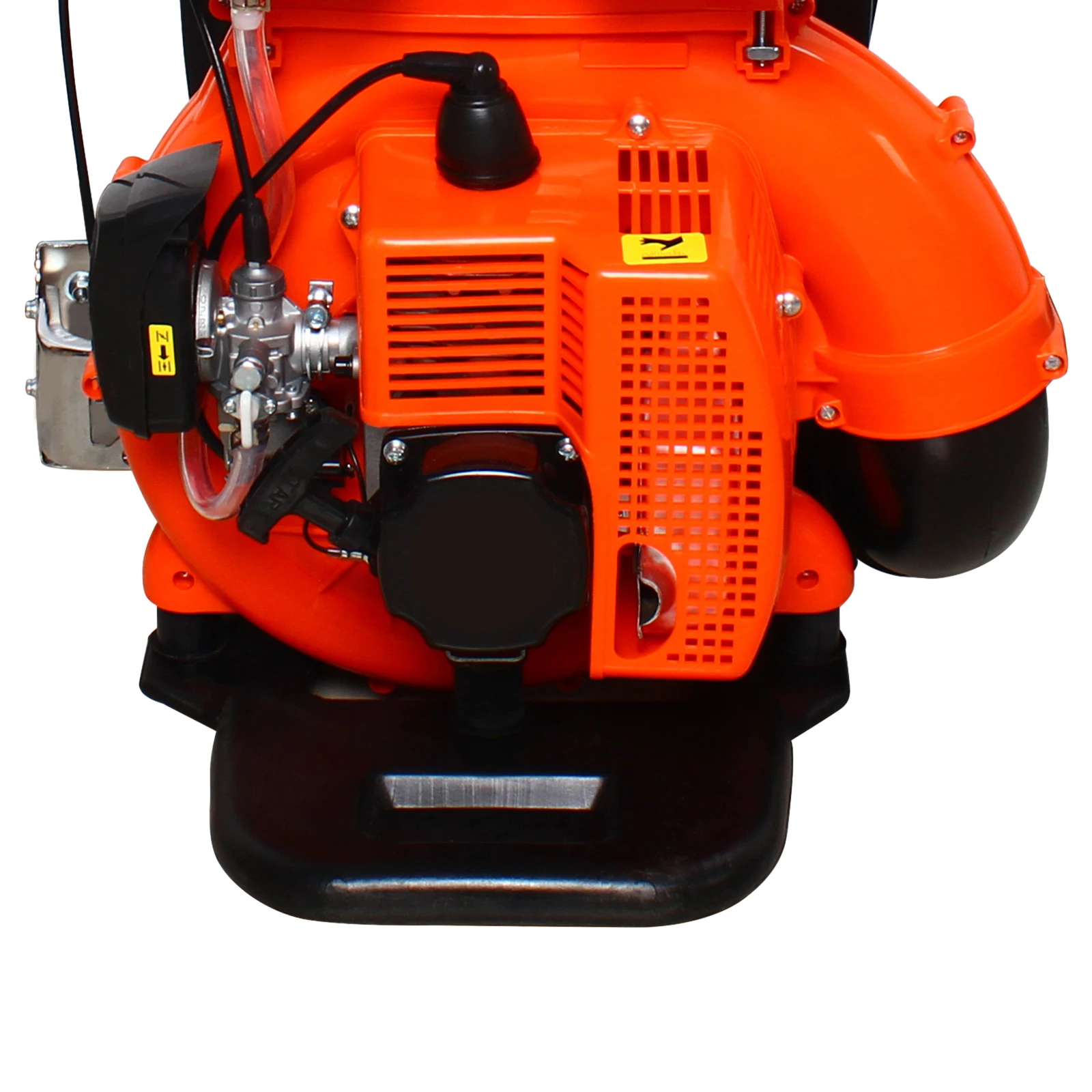

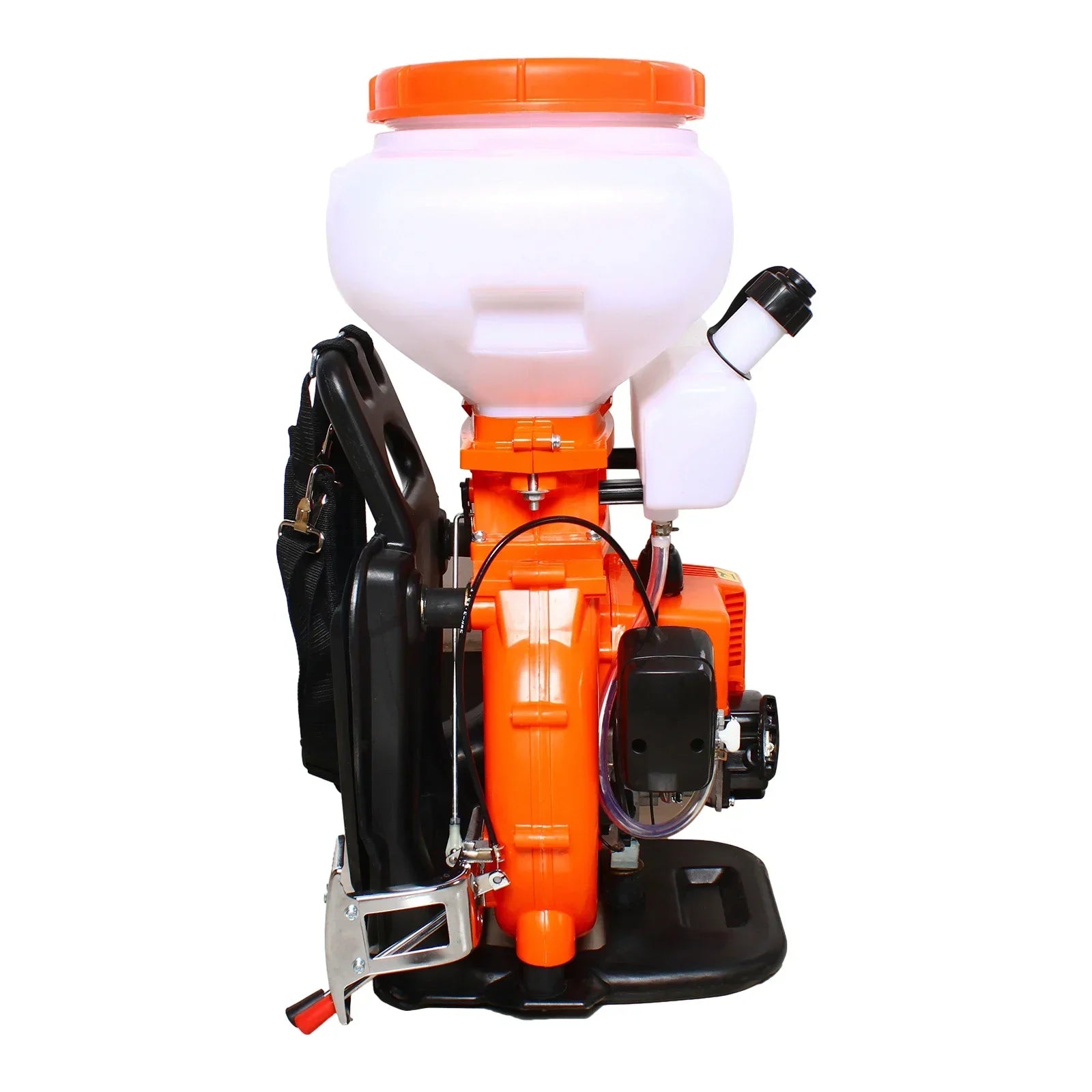

Thick Base: Itensures its stable placement on the ground without tipping, making it easy to store and place when resting.

Anti-loss Cap:The fuel tank cap adopts an anti-loss design to avoid the risk of accidental loss or slipping from the hand.

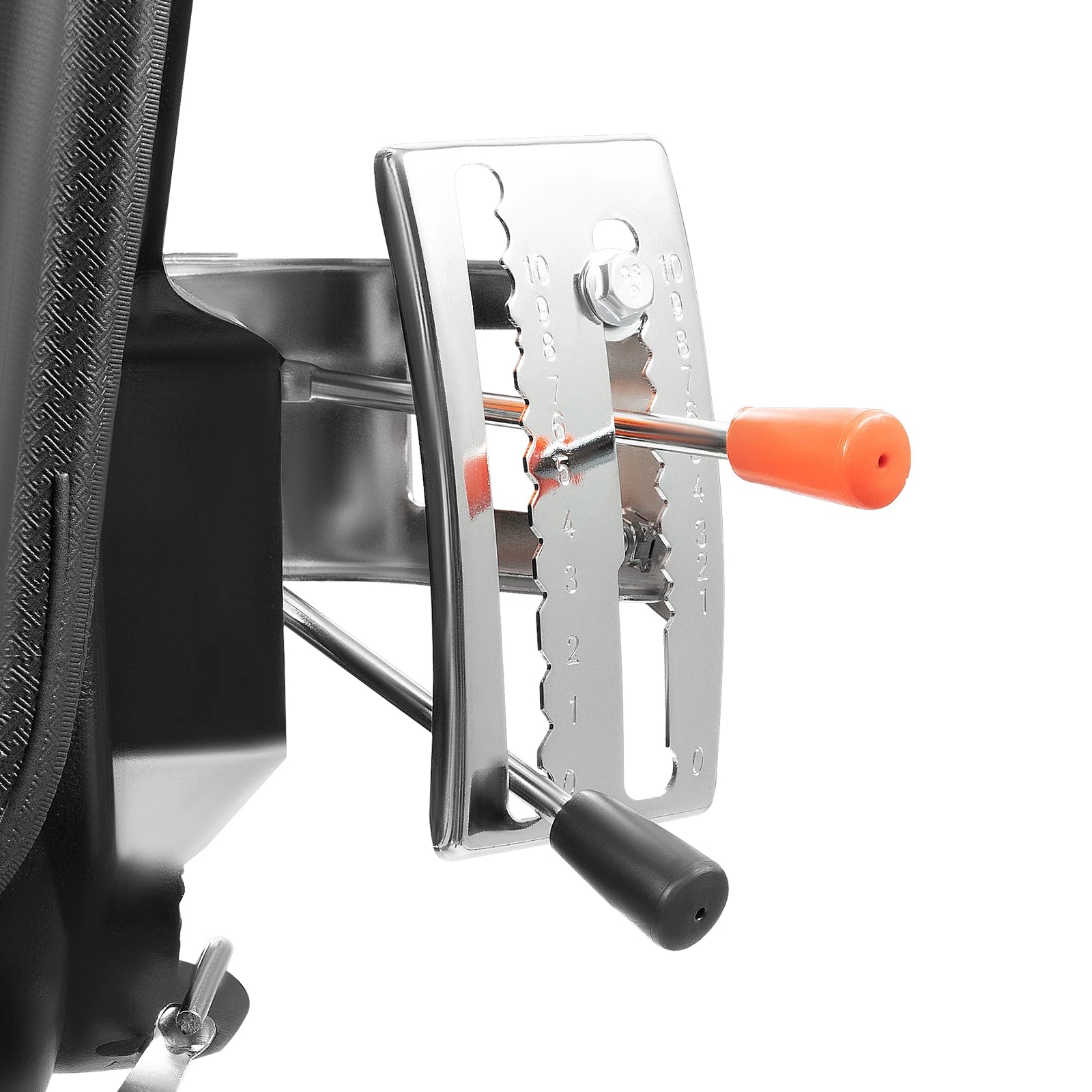

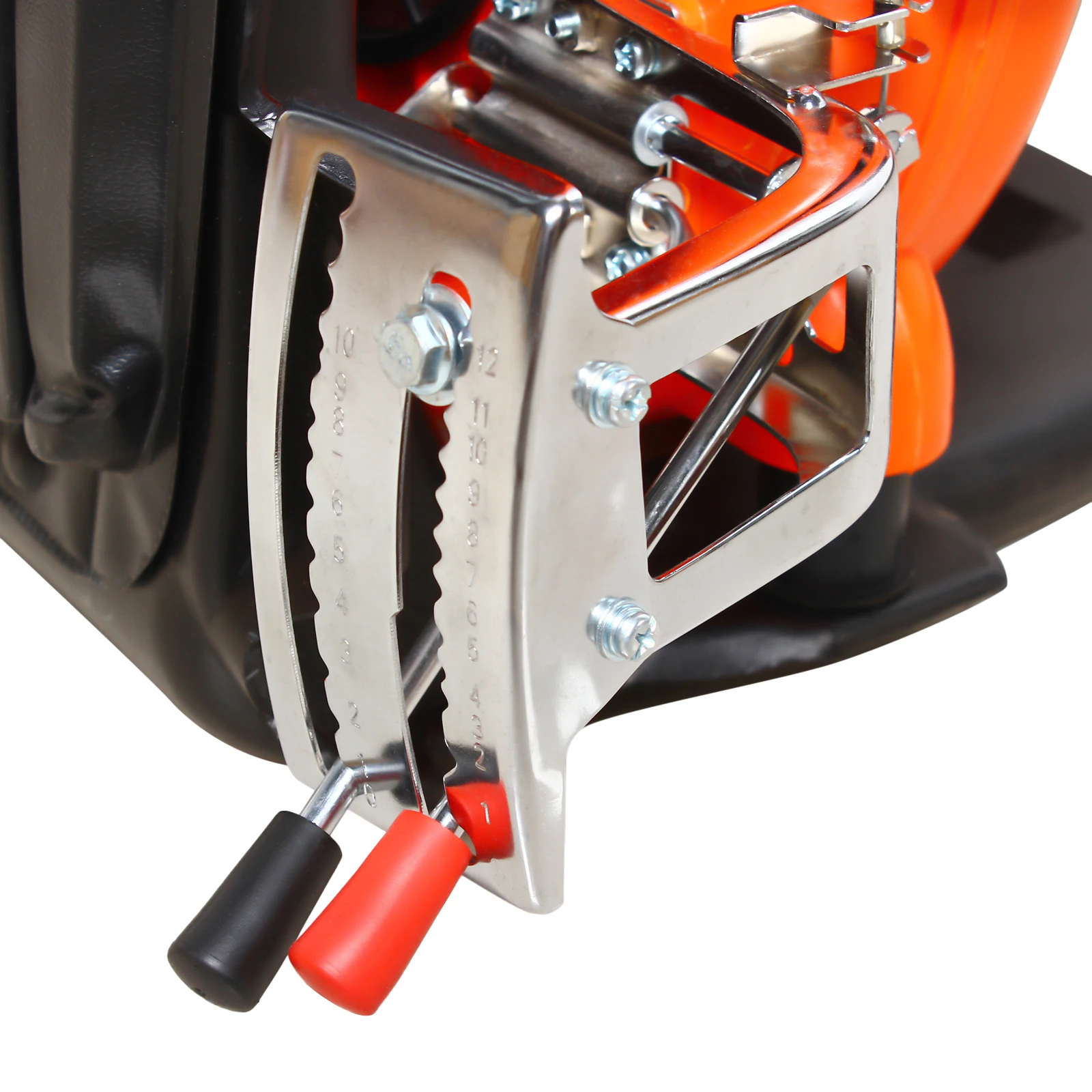

Baffle Marks: The baffle is engraved with the marks of throttle gears and amount gears to help you quickly adjust to the desired gear.

Application

It can load pesticides, disinfectants, waterproof base oil, fertilizer pellets, feed, and fish bait. It can be used for fog spreading, particle spraying, ultra-low volume spray, and other operations. It is suitable for the prevention and control of crop pests, the pest control of vegetables in greenhouses, urban and rural epidemic prevention, and the disinfection of livestock farms and storage.

Specification

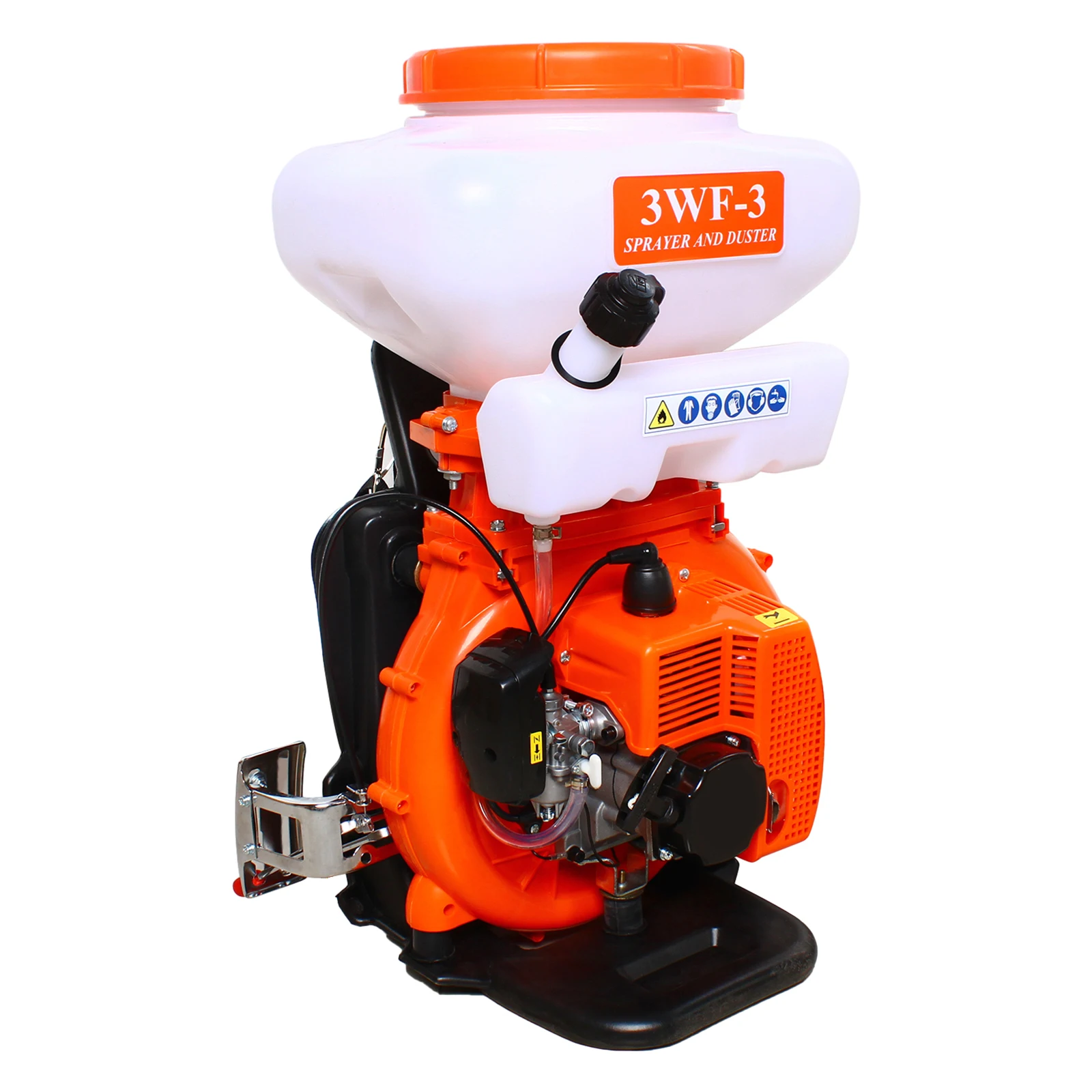

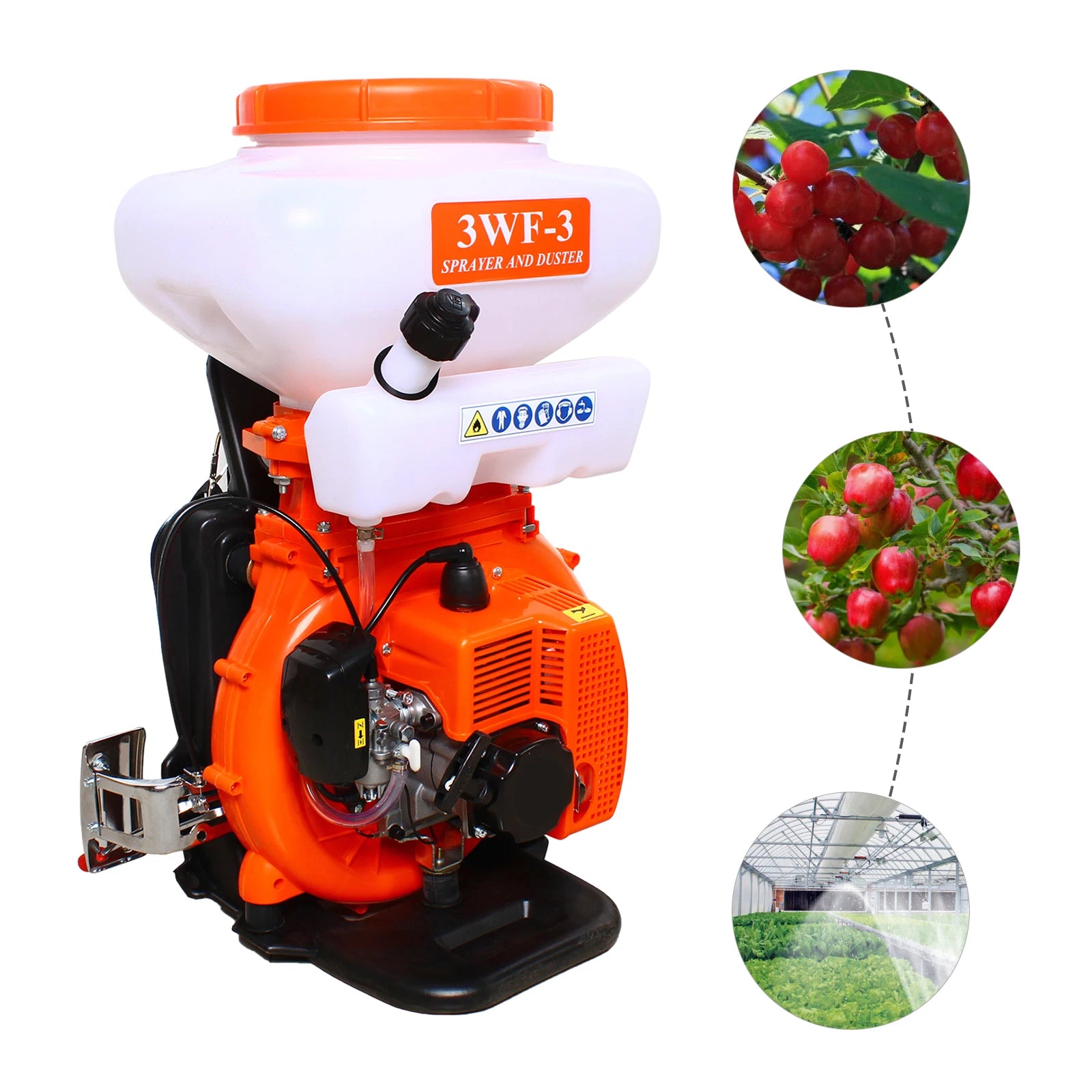

Model: 3WF-3

Material: Plastic, Aluminum

Color: Black, Orange, White

Style: Modern

Assembly Required: Yes

Power Source: Gas Powered

Start Method: Manual Start

Matched Engine: 1E40FP-3Z

Motor Type: 2-stroke Motor

Mixed Fuel Ratio: 25:1 (Gasoline: Engine Oil)

Displacement: 41.5CC

Standard Power: 2.13kW

Fan Rotation Speed: 7500r/min

Tank Volume: 14L/3.7gal

Range: ≥12m/39.4ft

Total Length of Tube: 127.5cm/50.2in

Oil Inlet Size: 2.75cm/1.1in

Base Length: 24cm/9.5in

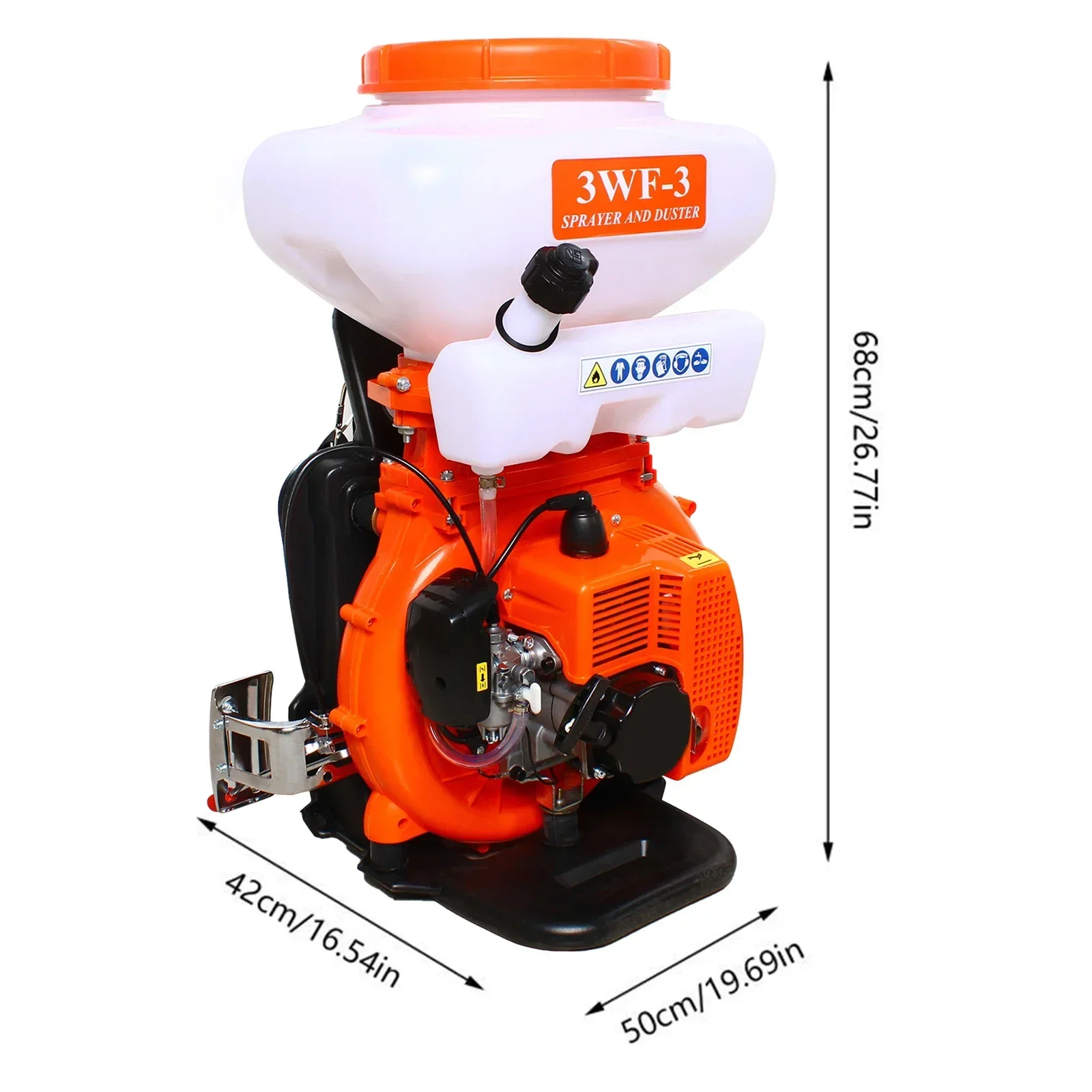

Product Size: 39*32.5*70cm/15.4*12.8*27.6in

Package Size: 74*43.5*53cm/29.1*17.1*20.9in

Net Weight: 10.6kg/23.4lbs

Gross Weight: 12.65kg/27.9lbs

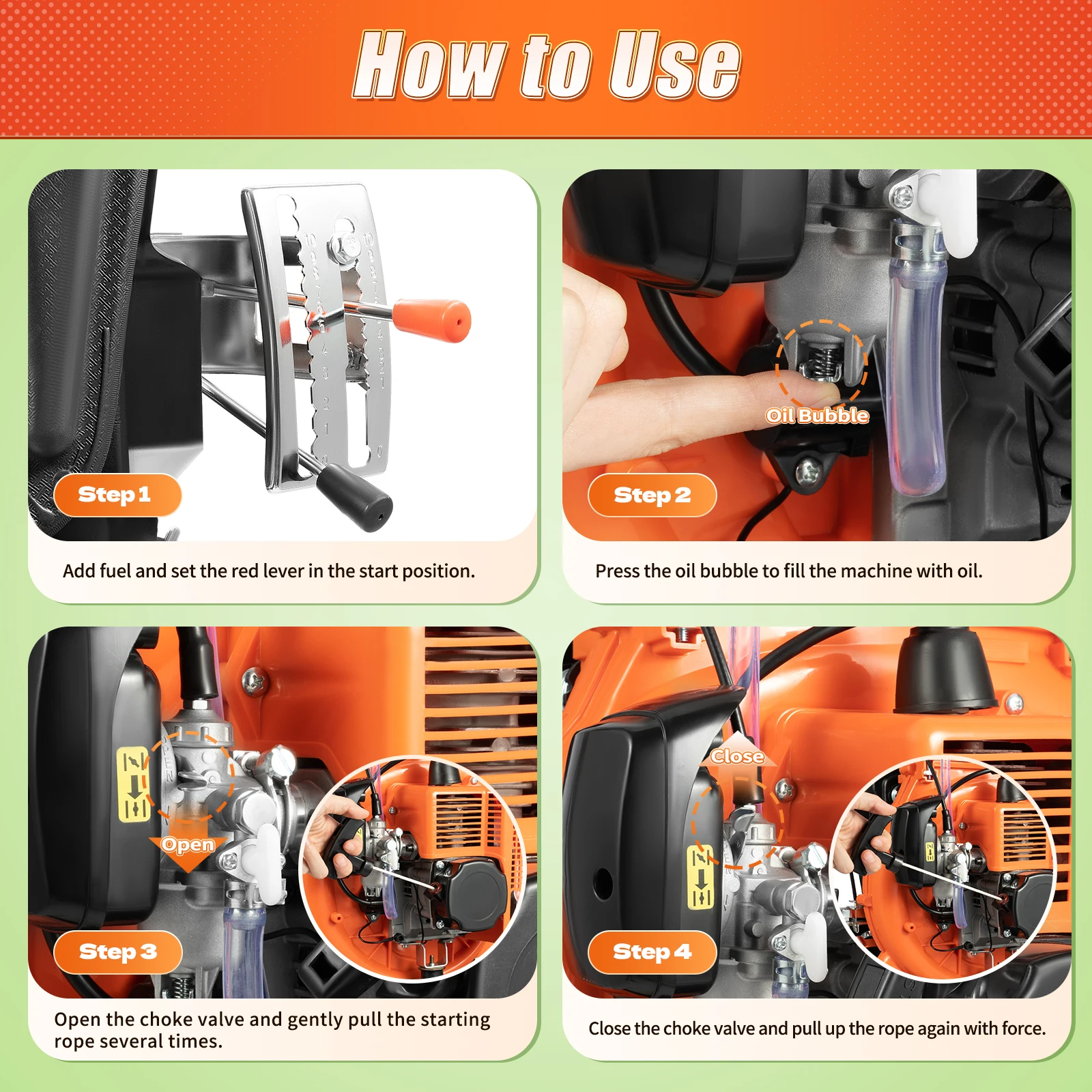

How to Use

• Add fuel and set the red lever in the start position.

• Press the oil bubble to fill the machine with oil.

• Open the choke valve and gently pull the starting rope several times.

• Close the choke valve and pull up the rope again with force.

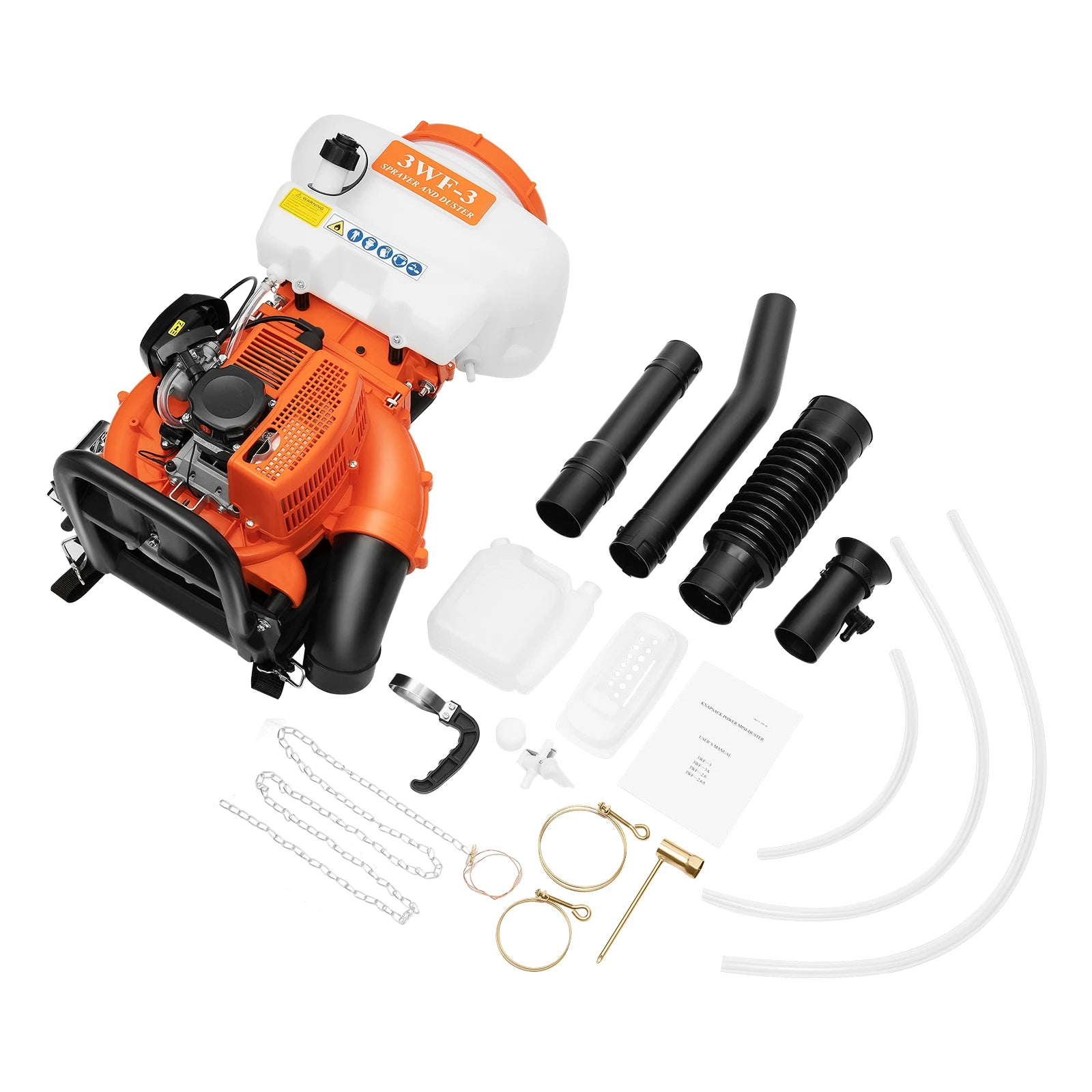

Package Included

1* Backpack Sprayer

1* Fuel Oil Mixing Bottle (Empty)

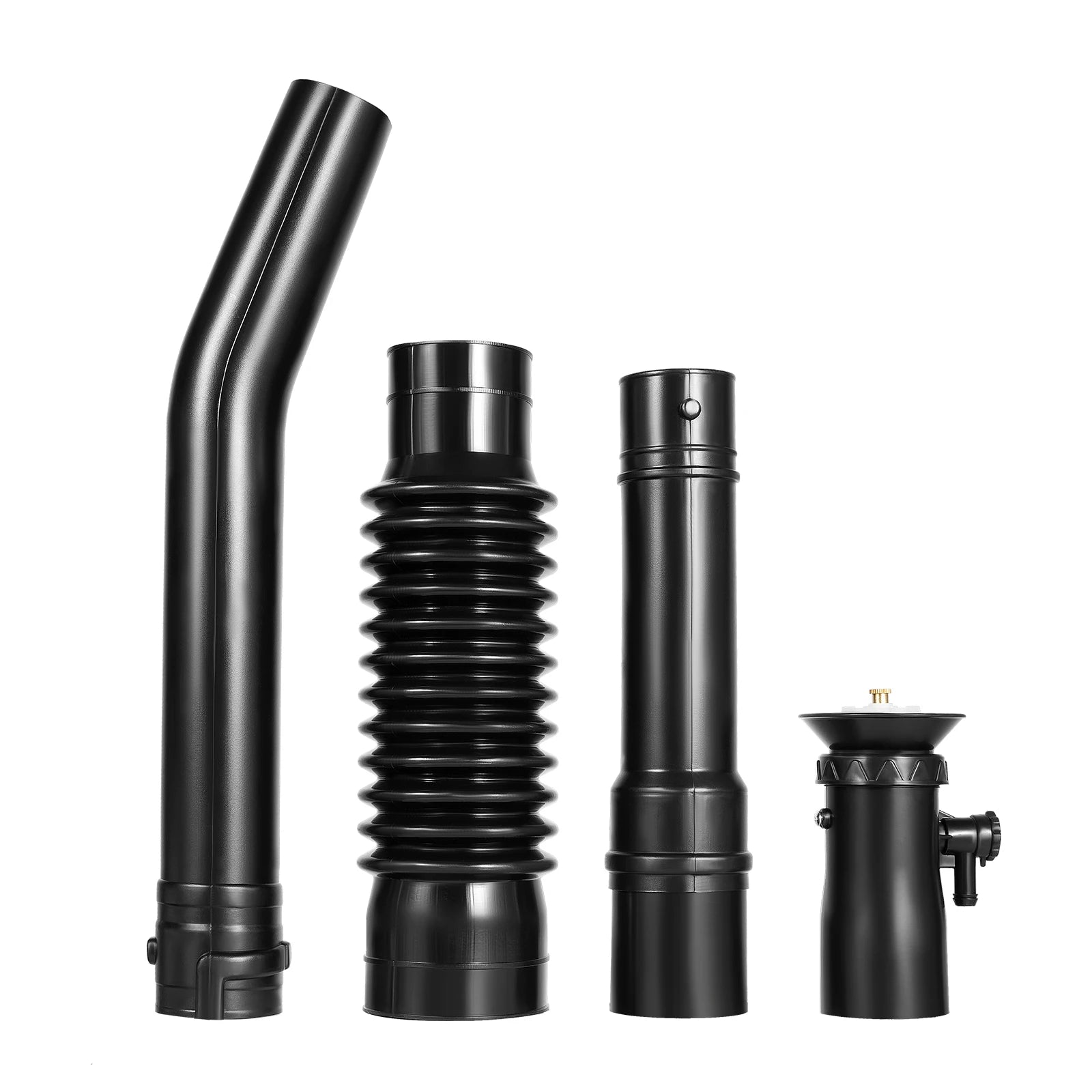

4* Connecting Tubes

3* Spray Water Tubes

1* English Manual

All Accessories for Assembly




Notes

• Please read the manual carefully and pay attention to the safety precautions inside.

• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
