Features:
Made of high quality material, anti-corrosion, durable in use.

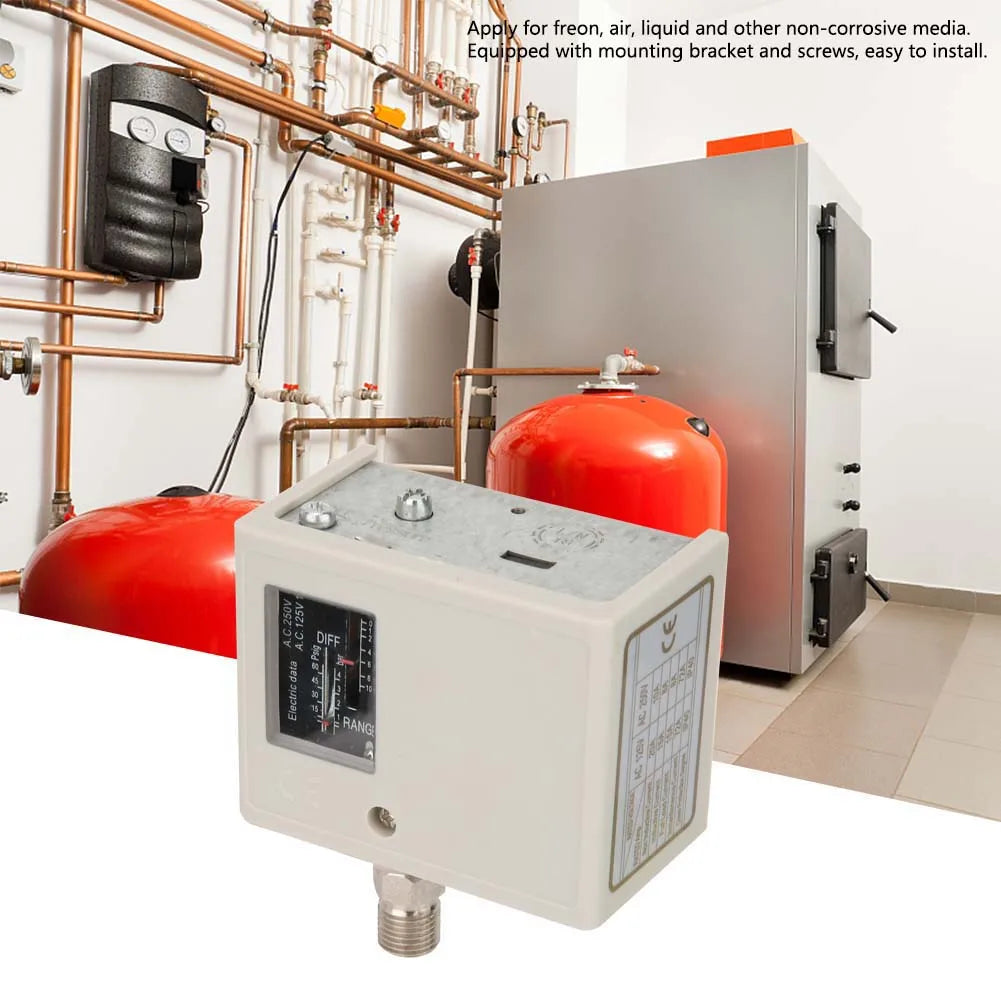

Apply for freon, air, liquid and other non-corrosive media.

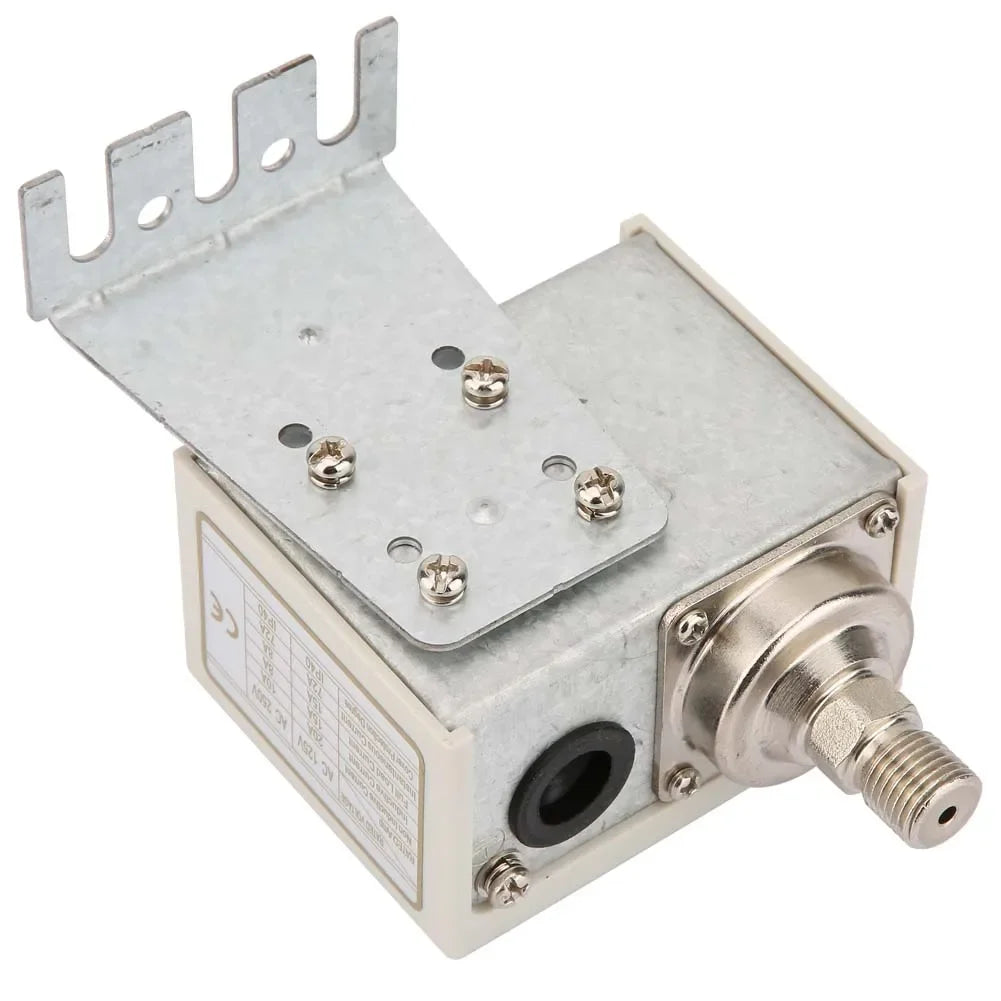

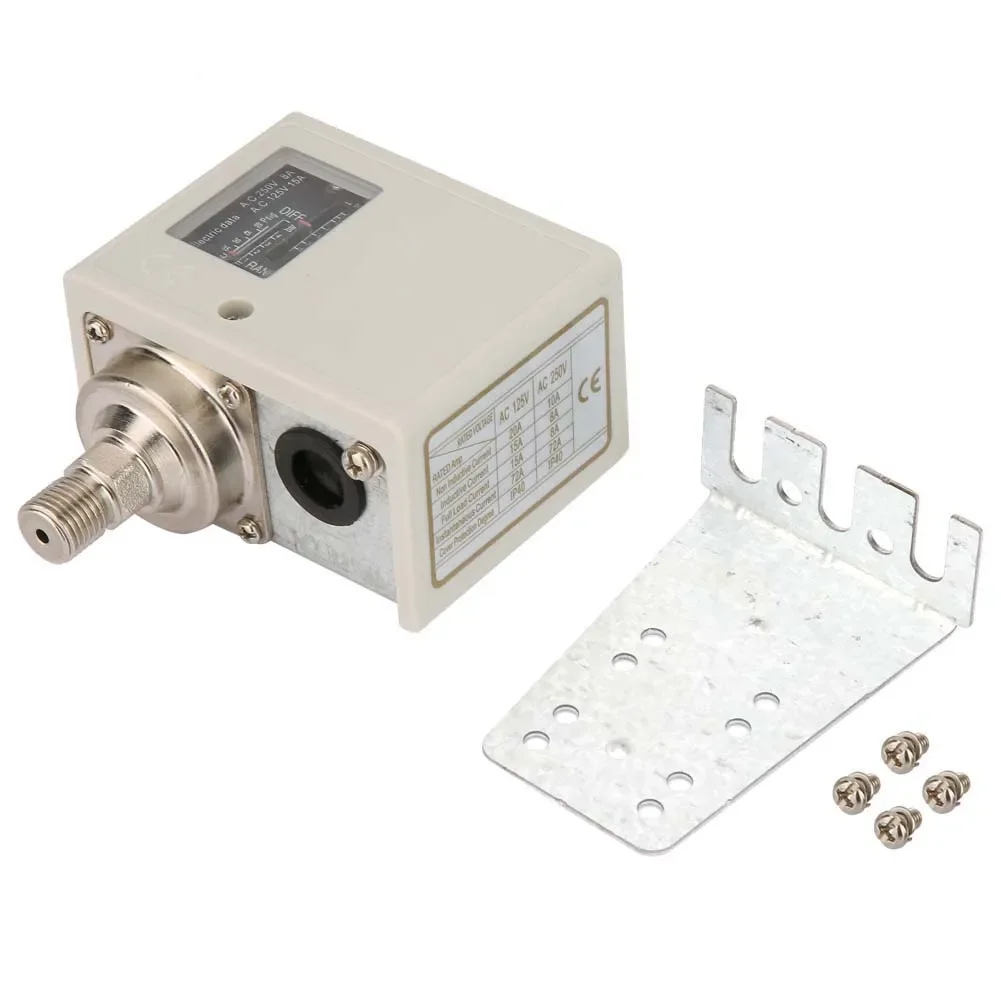

Equipped with mounting bracket and screws, easy to install.
The SPDT switch ensures reliable contact switching.
Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.

Specification:
Material: Stainless steel, iron plated nickel, plastic
Weight: 408g/14.4oz
Thread: G thread
Pressure regulating range (bar): 1 (Min) ~ 10 (Max)
Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max)
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times

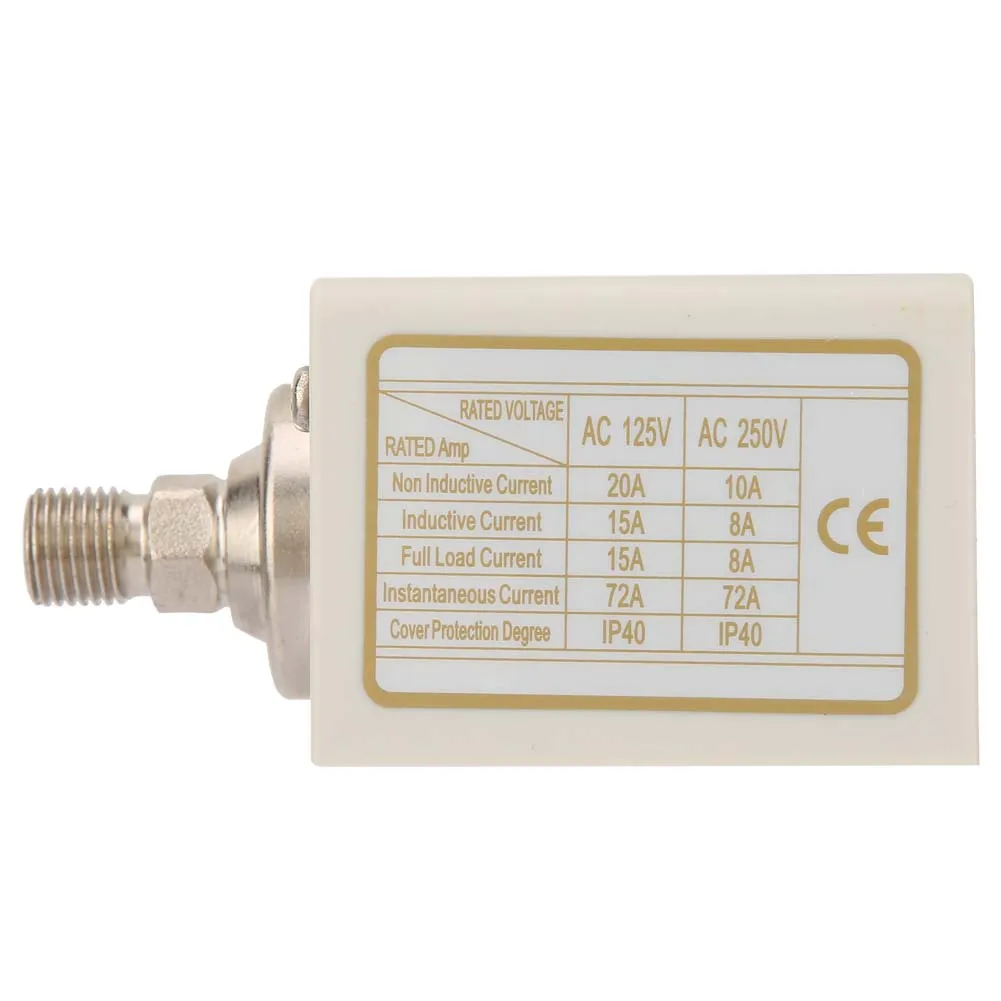

Electrical parameters:
When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.
