SPECIFICATIONS

Brand Name: bibikoo

Certification: CE,RoHS

Compatible Brand/Model: None

High-concerned chemical: none

Inbox adaptor: No

Isolated voltage: 1500VDC

Low ripple/noise (20MH bandwidth): 30mVp-p

MTBF: ≥3.5 million hours

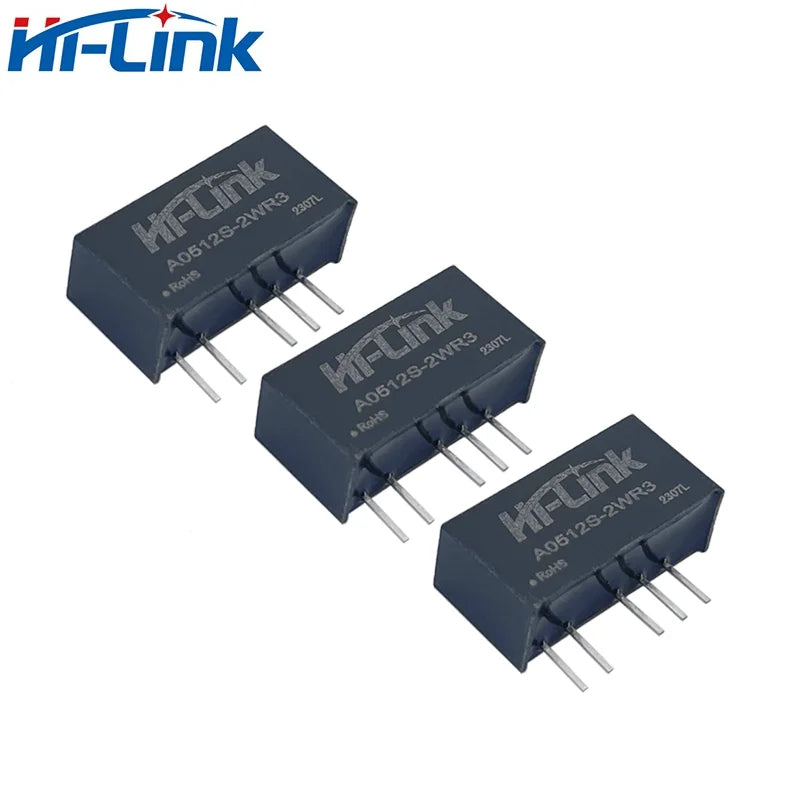

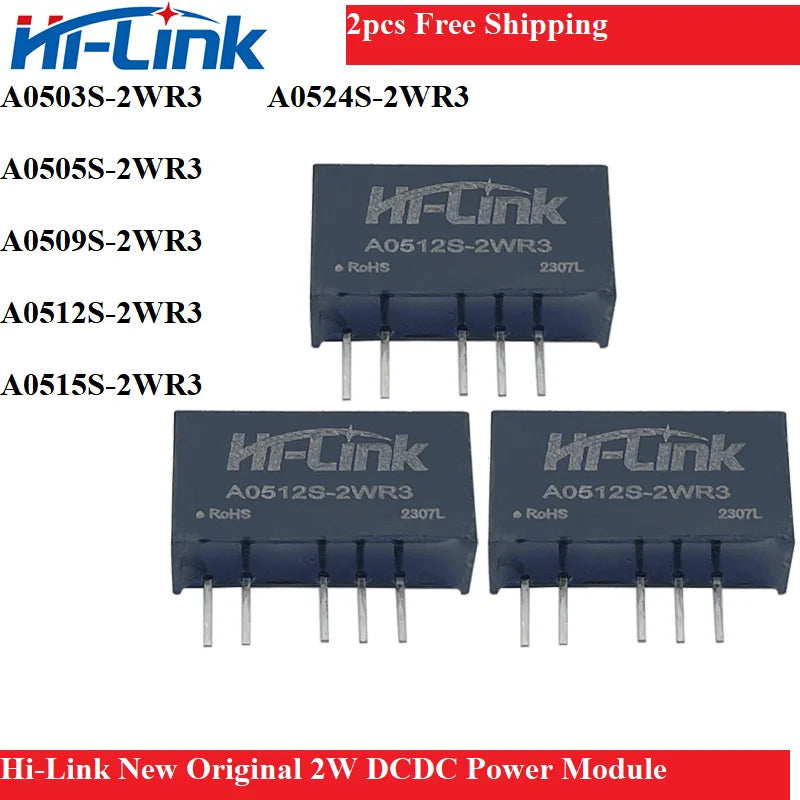

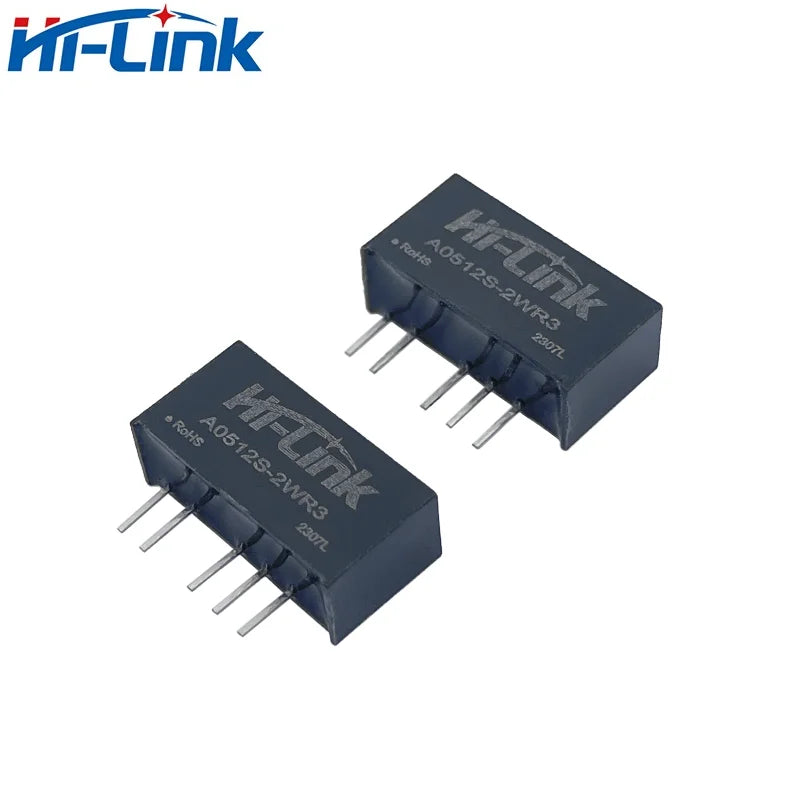

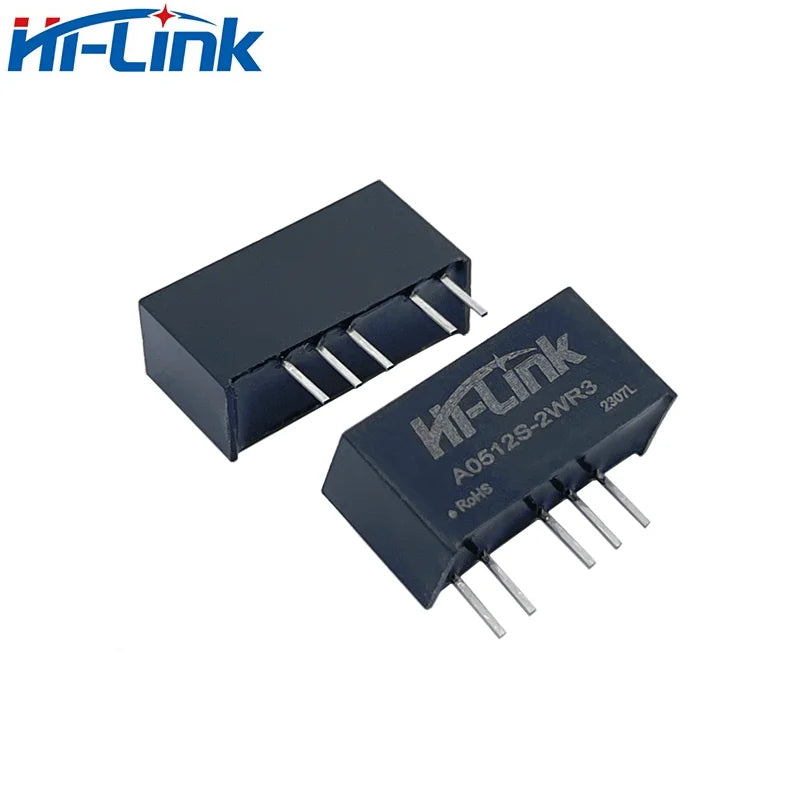

Model Number: A0503S-2WR3

Origin: Mainland China

Output current: 303mA/200mA/112mA/83mA/67mA/42mA

Output voltage: 5V

Power: 2W

Power Source: DC,DC

Size: 19.5x7.0x10.0mm

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

Working environment temperature: -40℃~+85℃

Welcome to Hi-Link Official Store!

We are Shenzhen Hi-Link Electronic co.,ltd, manufacturer of Sensor module,Router Module,WIFI module, BT module , AC DC and DC DC power module for ten years in China.

If you need samples, please place order here, we will ship to you soon.

If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.

Contact method:

Wechat/whatsapp/mobile: +86 13632657057

Skype: c-alicekuang

Email: anna@hlktech.com

1.Introduction

A_S-2WR3 series is a small size, high efficiency micro power, constant voltage input, isolated unregulated single
output, DC/DC module power supply from Hi-Link;
This series of products is designed for applications in on-board power systems that require the generation of a set

of voltages isolated from the input power supply. The product is suitable for:

• The voltage of the input power supply is relatively stable (voltage variation range ±10% Vin);

• Isolation is required between input and output (isolation voltage ≤ 1500VDC);

• Low requirement for output voltage stability;

• Typical applications: purely digital circuits, general low-frequency analog circuits, relay drive circuits, data exchange circuits, and so on.

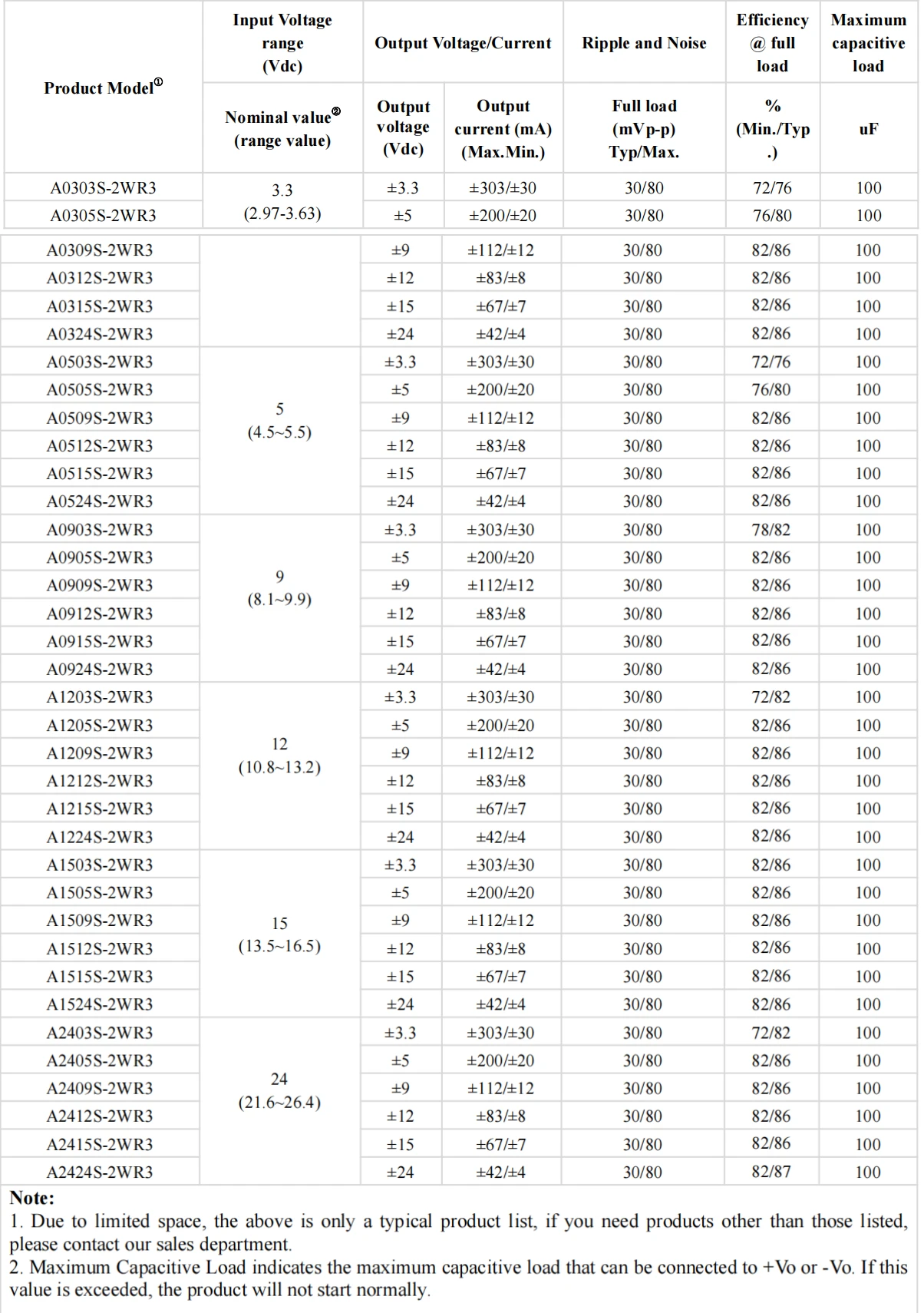

2.Product List

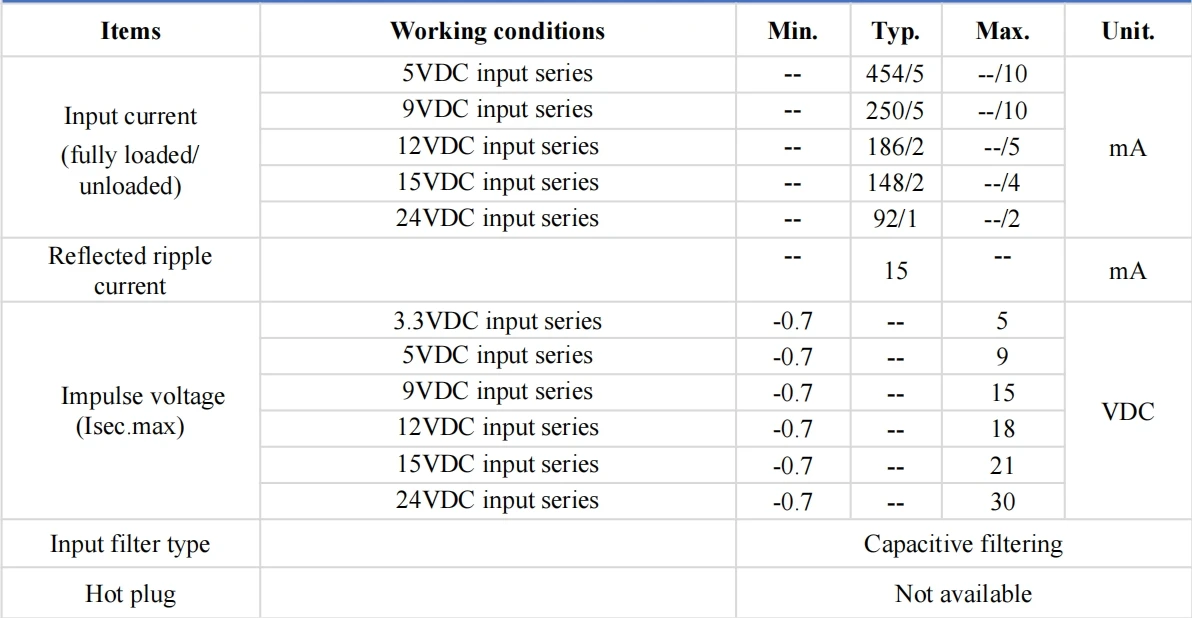

3.Input Characteristics

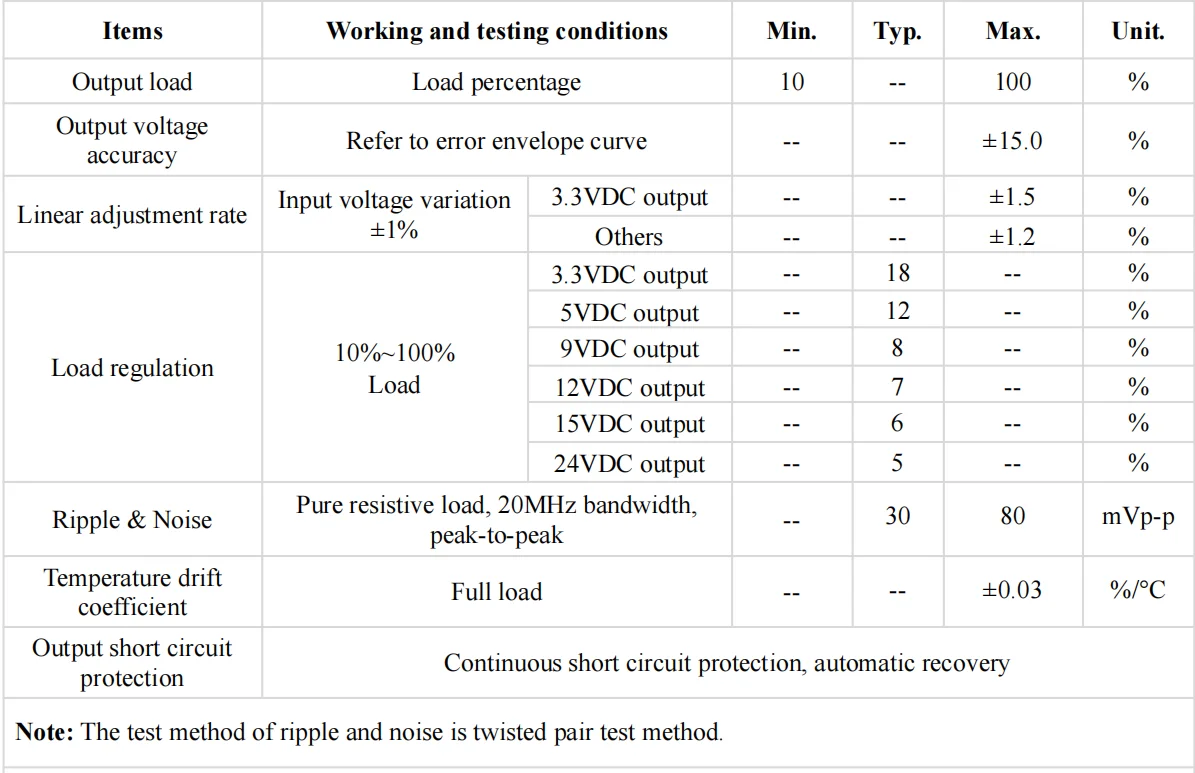

4.Output Characteristics

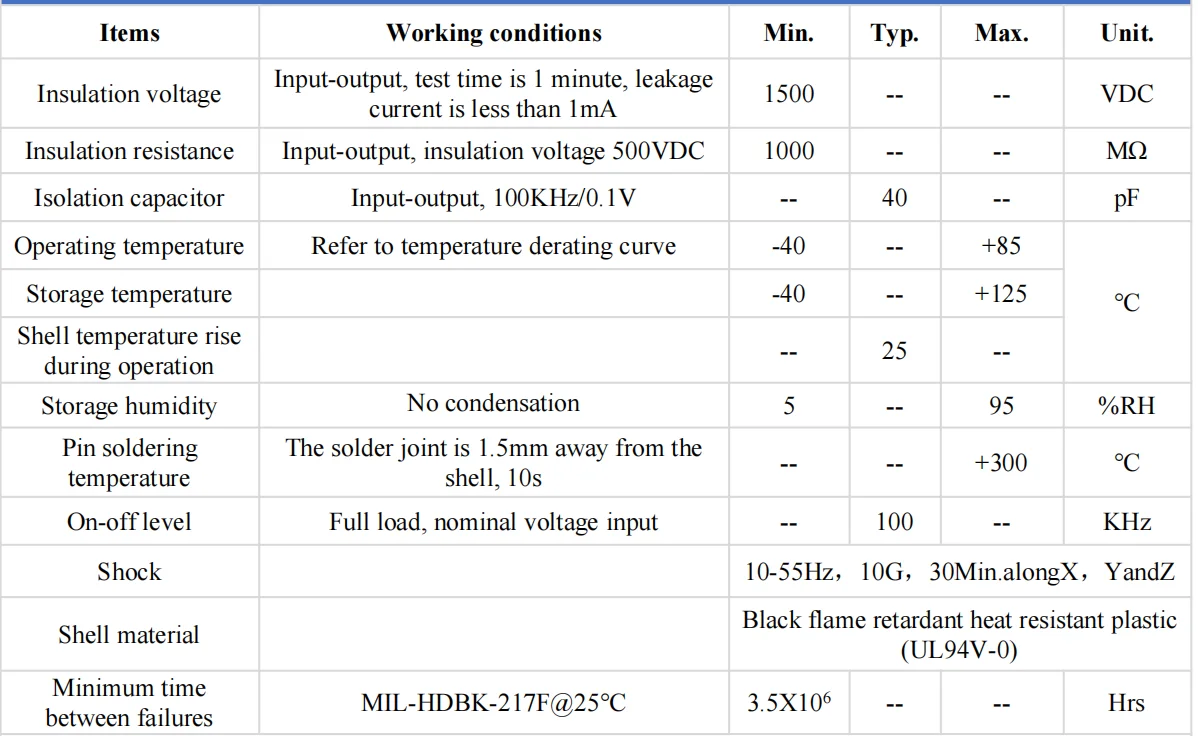

5.General Characteristics
