SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Dimensions: Spot Welder

High-concerned chemical: None

Max. Welding Thickness: 0.1mm-0.25mm

Origin: Mainland China

Use: Spot Welding Machine

Features:

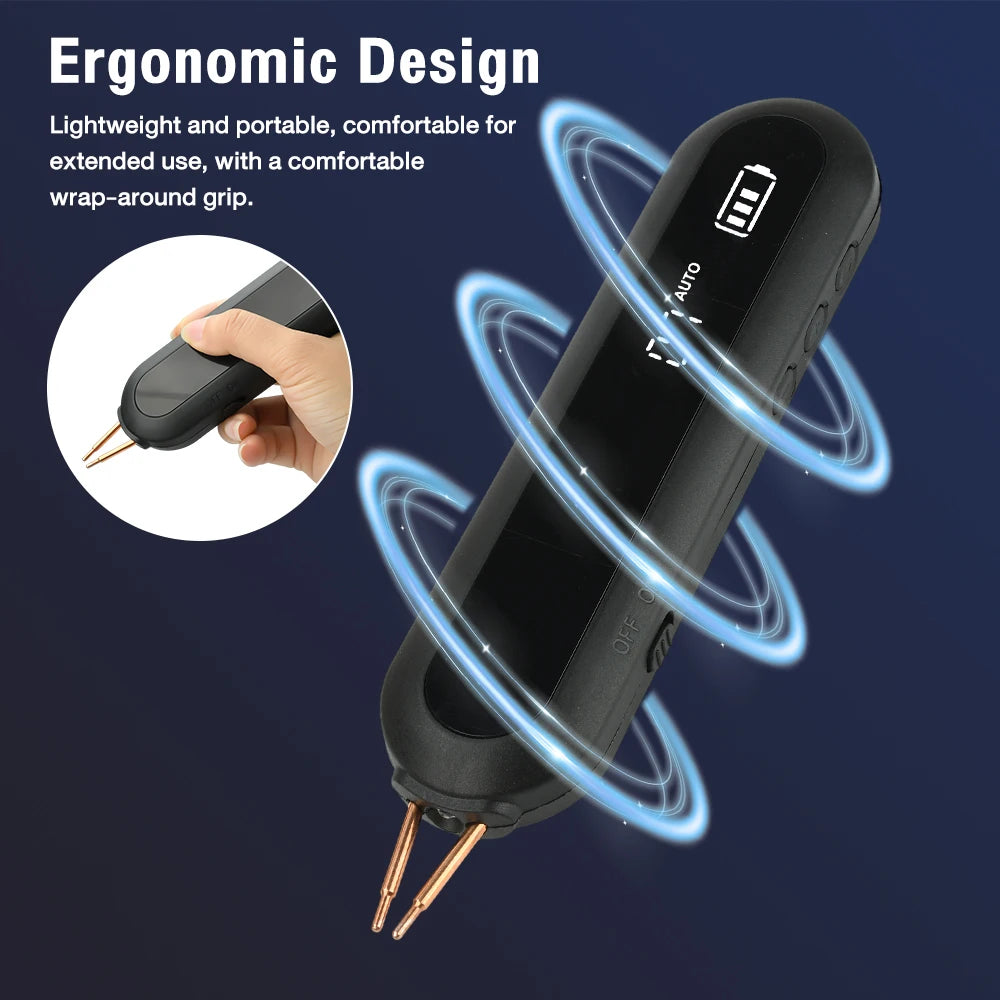

1.Convenient to carry: Can be held with one hand, convenient to use, and more convenient for repairing mobile phones when going out.

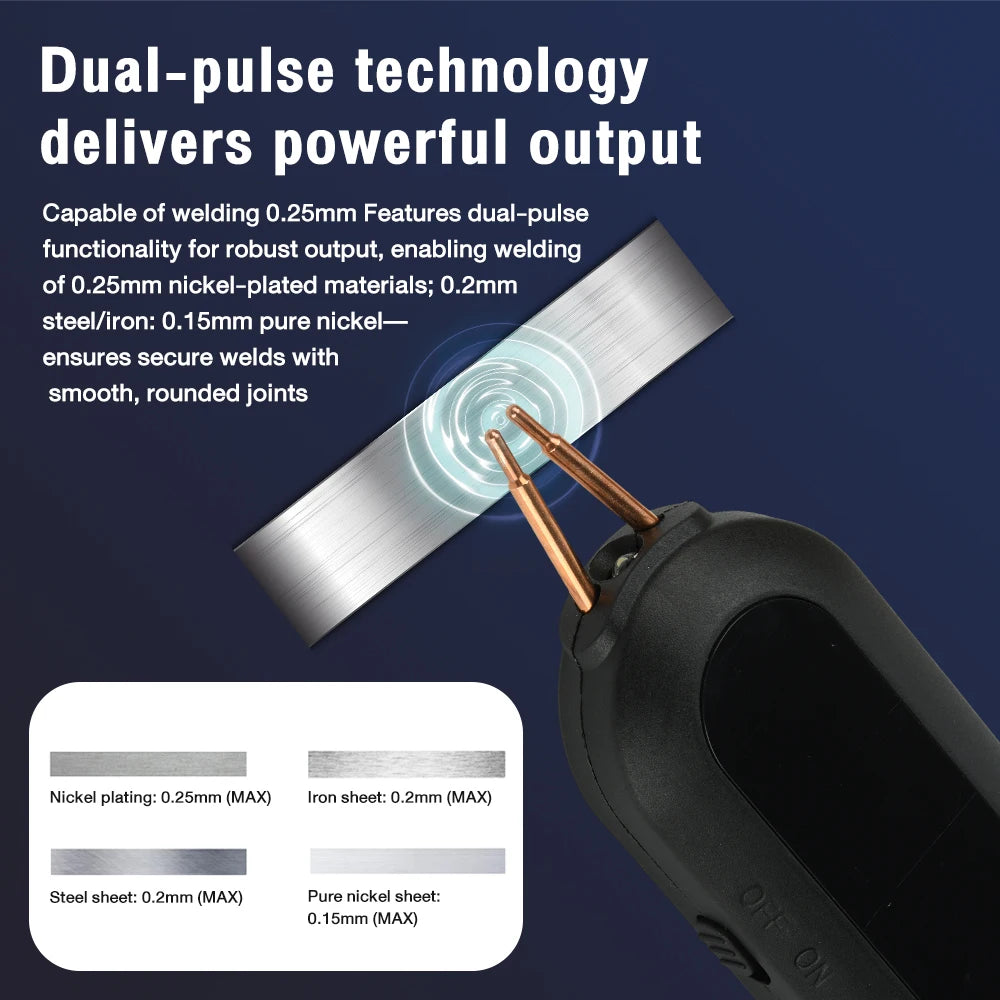

2.Manual and automatic dual-mode adjustable: 12 levels of power adjustment, can meet different spot welding needs, and can weld thicknesses up to 0.25mm.

3.Detachable welding needle: Say goodbye to threaded welding needles and adopt embedded fixing technology to easily align welding needles.

4.Equipped with led lighting: The spot welding machine has a 0-9 level brightness adjustment function, making it easy to work in dark environments.

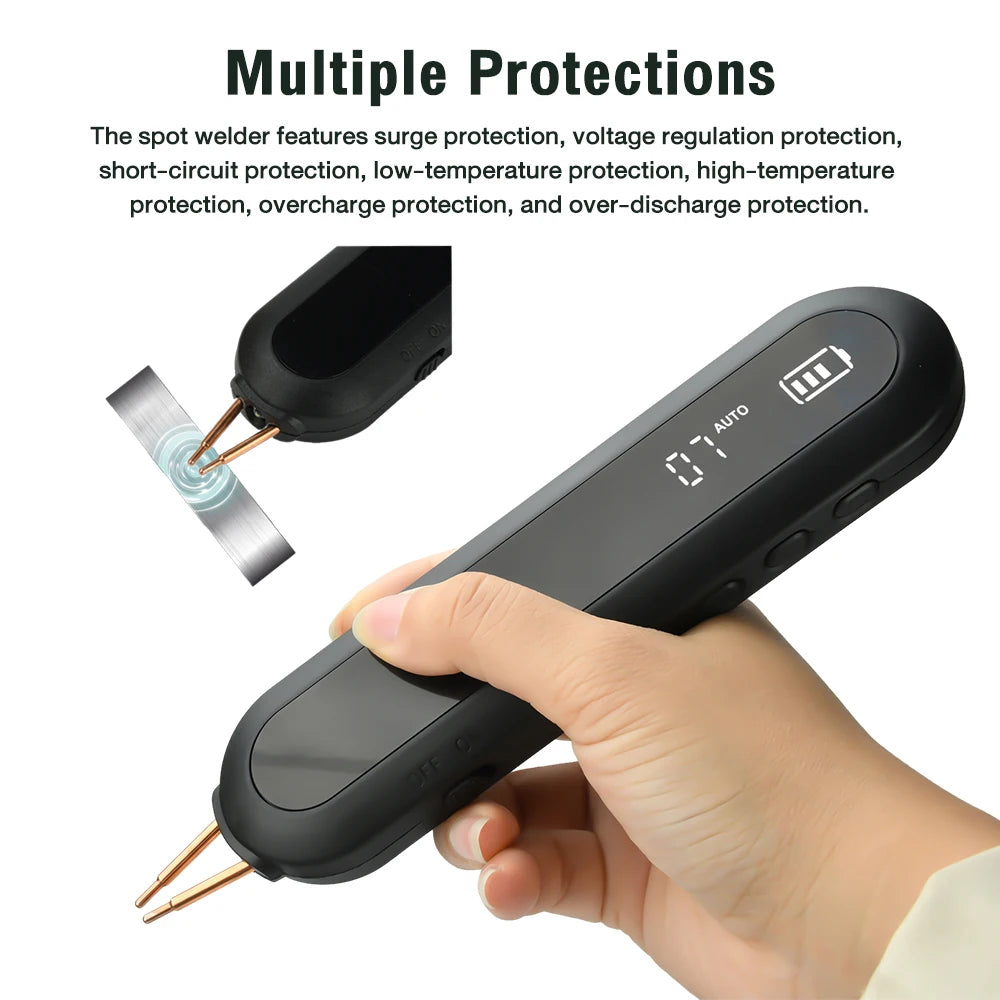

5.Multiple protection: The spot welding machine has surge protection, voltage regulation protection, short circuit protection, low temperature protection, high temperature protection, overcharge protection, and overdischarge protection.

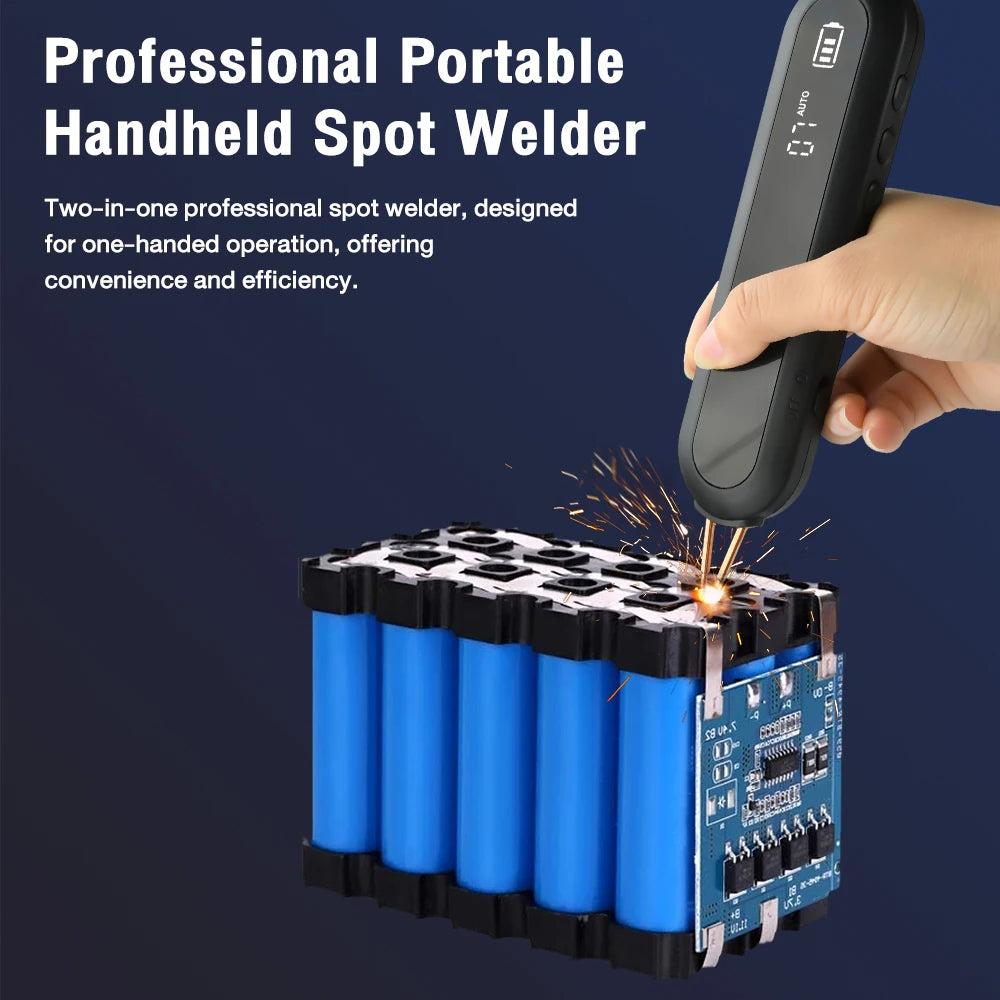

6.Wide range of applications: Suitable for mobile phone repair, manual diy, lithium battery assembly, etc., it is an ideal tool for repair enthusiasts.

Parameters:

Product name: small handheld spot welding machine

Display type: led

Shell material: abs

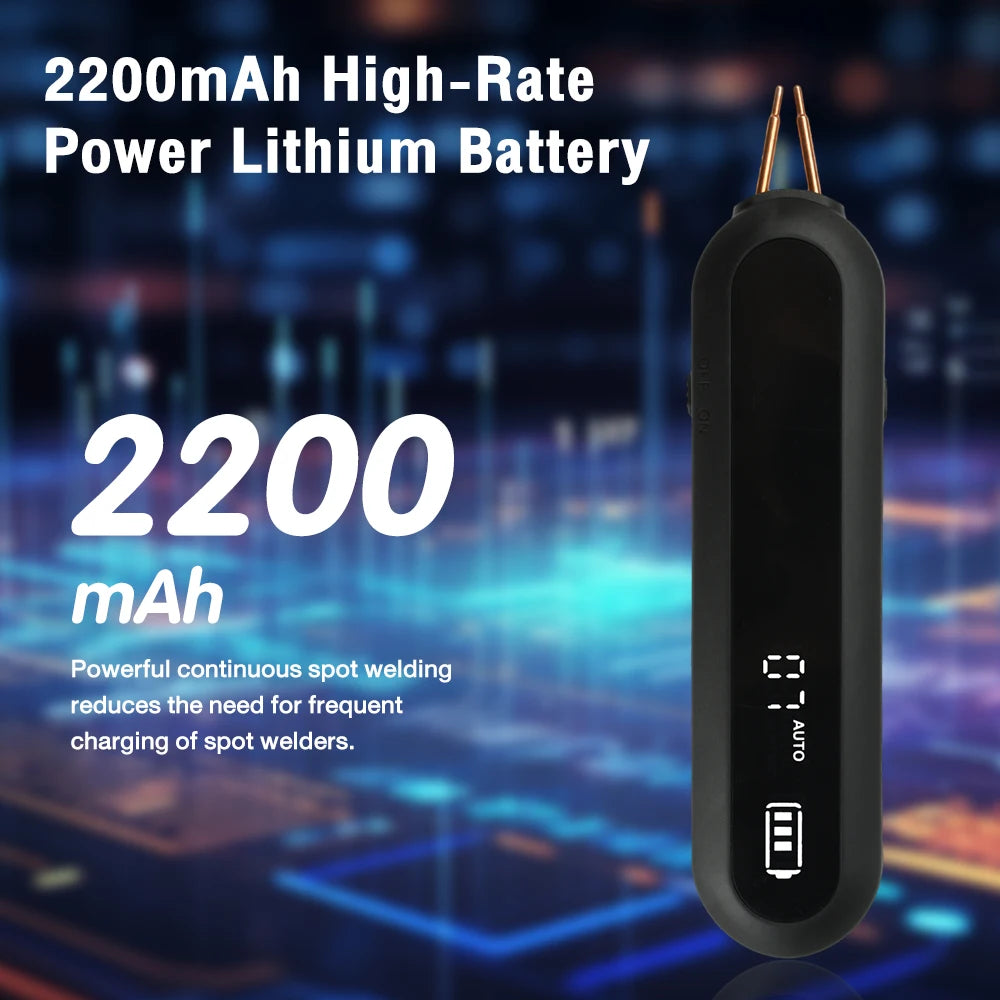

Battery capacity: 2200mah

Charging input: dc5v/2a

Output voltage: 4.2v

Output current: 800a

Battery type: lithium polymer battery

Adjustable gears: 12 gears adjustable

Led lighting: adjustable from 0-9 levels

Charging interface: type-c

Welding thickness: 0.1mm-0.25mm

Copper needle material: pure copper

Copper needle length: approximately 3*50mm

Copper needle connection: thread detachable

Common problems with malfunctions

1.If the device cannot be turned on, it may be due to low battery power or a faulty motherboard. Firstly, check if the charging cable and charger are charging correctly.

2.If the device can be turned on but does not work, please check if there are any foreign objects short circuiting the two soldering pins or if they have not switched to soldering pin mode.

3.The lighting is not on, please check if the gear is in the 0 off state.

4.Sudden shutdown during work may be due to long-term high power consumption, with the internal temperature entering a protective state due to excessive heat. It needs to be cooled down for a while before restarting for use.

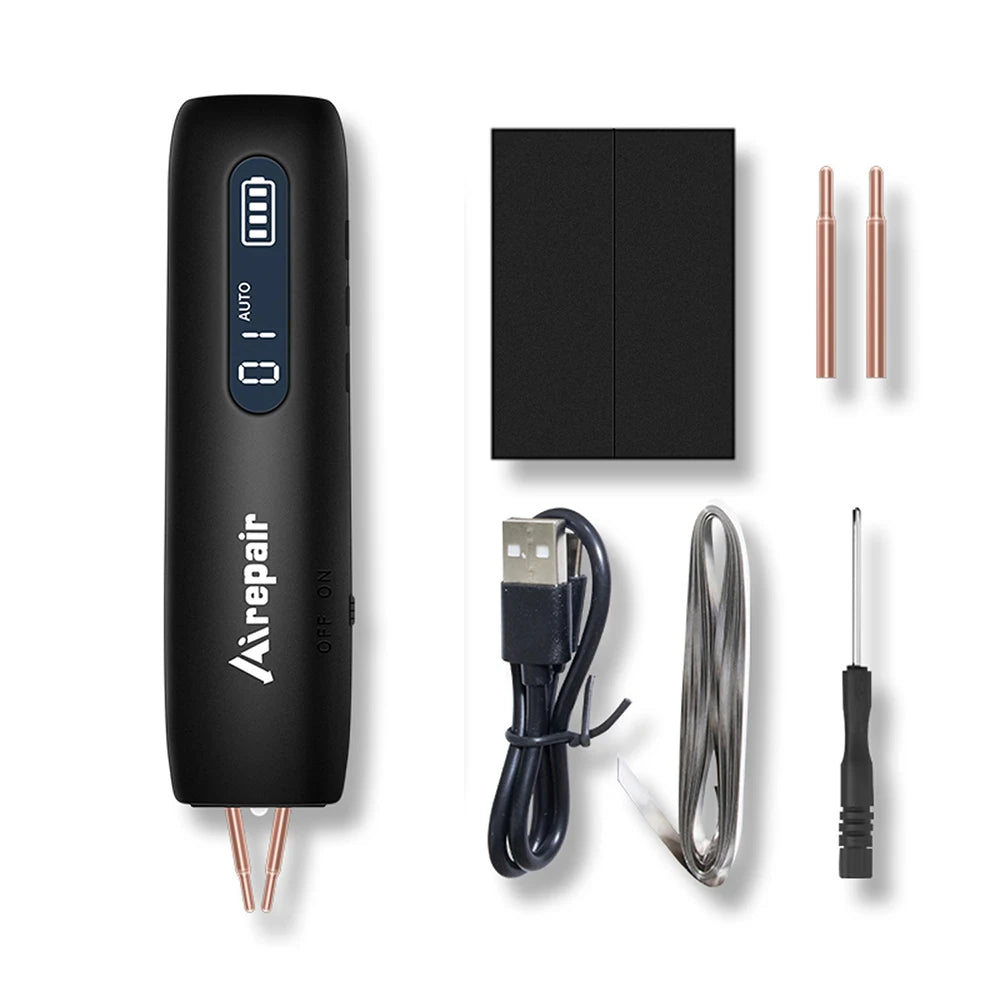

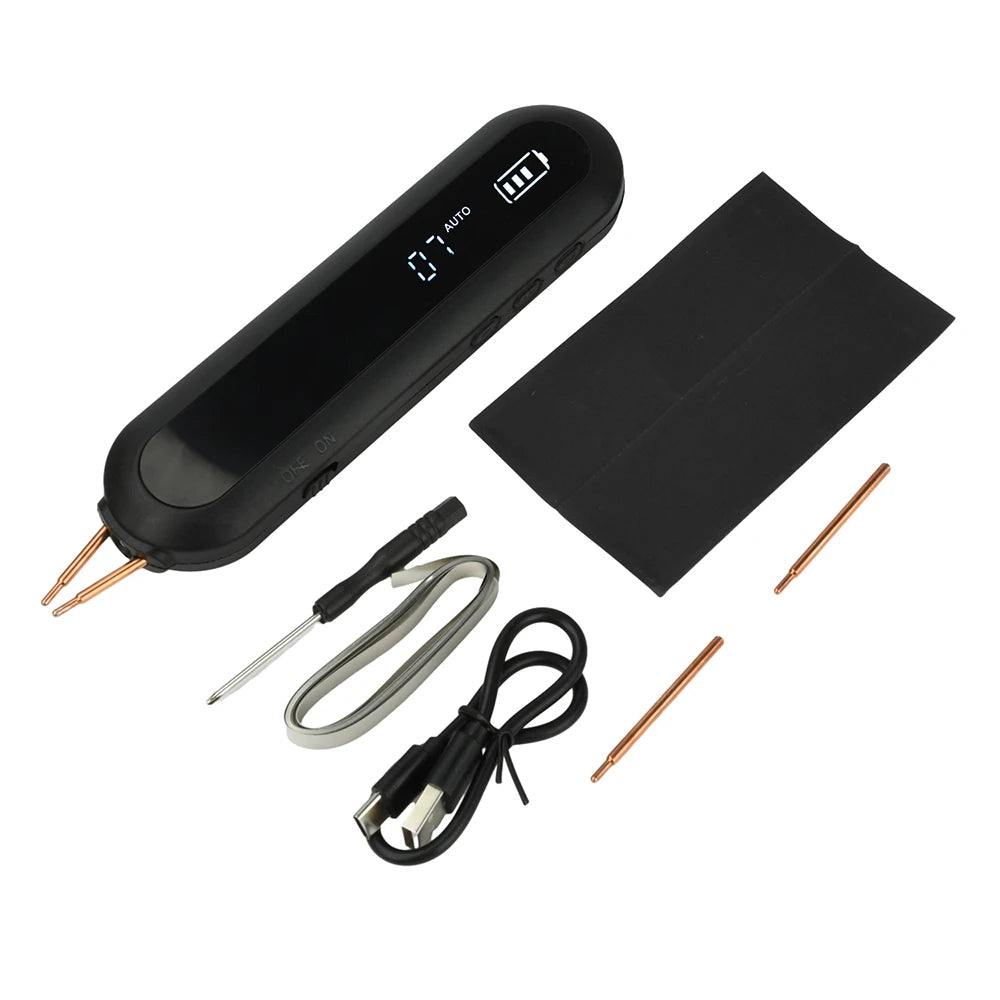

Package include:

Black

Spot welding machine*1

Type-c charging cable*1

Matte paper*1

2-meter nickel coil*1

Welding needle*2

Screwdriver*1

Style 2

Type-c charging cable * 1

Matte paper * 1

Nickel coil * 1

Welding needles * 4

Screwdriver * 1

Style 2:

Black:
